As commercial displays—interactive flat panel, digital signage, outdoor advertising screens—proliferate across public spaces, one question increasingly confronts display manufacturers and integrators: Which anti-glare solution delivers the right balance of optical performance, durability, and cost-effectiveness?

The debate between AG spray coating and AG chemical etching has intensified as commercial display applications become more diverse. While etched AG glass has long been regarded as the premium choice, spray-coated AG glass has emerged as an increasingly compelling alternative for a wide range of commercial applications—offering distinct advantages in cost efficiency, production flexibility, optical clarity, and environmental sustainability.

This article presents a balanced, feature-by-feature comparison to help you make an informed decision for your next commercial display project.

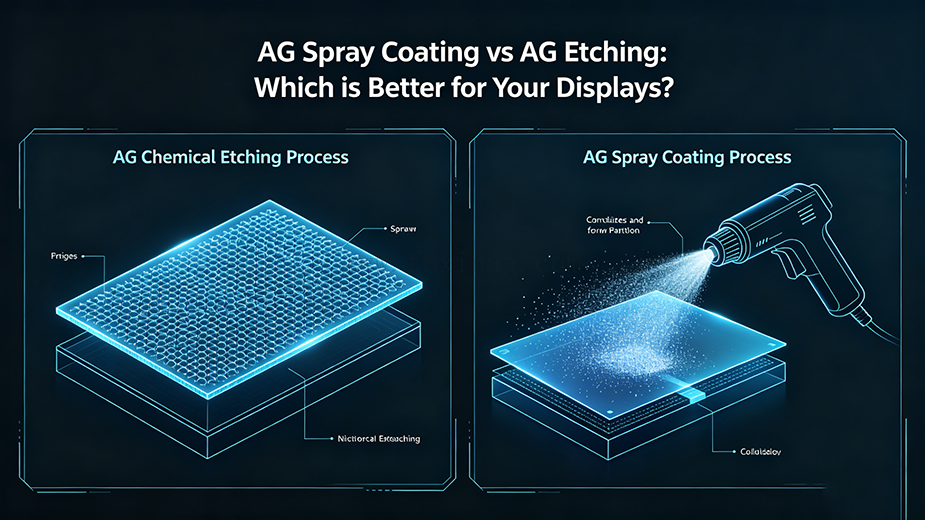

AG spray coating VS AG etching

1. Fog Control and Optical Performance

• Etching AG
  The haze is determined by the depth of chemical corrosion and cannot be adjusted once formed. Large-sized glass is prone to uneven corrosion, leading to significant haze deviations, localized over- or under-etching, and difficulty in meeting the high requirements for screen uniformity in commercial displays.
  Spray AG (Significant Advantages)
  1)The adjustable fog range is wide and precisely controllable
  2)Sprayed AG can achieve a continuous haze range of 3% to 25% by adjusting the nanoparticle dosage, number of spray layers, and film thickness, enabling flexible 3)adaptation to anti-glare requirements for various scenarios such as indoor advertising machines, meeting tablets, and high-brightness commercial displays.
  Large size with superior uniformity
  4)Automated multi-gun spraying ensures uniform film thickness distribution, minimal haze fluctuation across the entire panel, and the absence of bright spots or dark/light stripes, making it more suitable for large-sized commercial display panels above 55 inches.

2. DOI Freshness/Clarity Performance
Etching AG
The microscopic grooves formed by chemical etching are deep and irregular, which can lead to chaotic light scattering, high haze, slight whitening, reduced sharpness, and insufficient transparency when viewed on high-resolution commercial displays in the commercial display industry.
Spray AG (Significant Advantage)
1)The image is more transparent and sharp
2)Spray AG relies on controlled nanoparticles to create uniform diffuse reflection, achieving anti-glare while minimizing image clarity loss, offering higher DOI (Dynamic 3)Optical Index) and cleaner text and image details.
4)Maintains high transmittance even at low haze levels
5)It can effectively reduce glare in low haze conditions while balancing anti-glare performance, high brightness, and high clarity, aligning better with the development trend of high-brightness and high-definition commercial displays.

3. Comparison of environmental friendliness in manufacturing processes
Etching AG
Using hydrofluoric acid and strong acid system, the production process generates fluorine-containing wastewater, acidic waste gas, and hazardous waste residue. The investment in environmental treatment facilities is large, the cost of hazardous waste disposal is high, and the environmental risks and regulatory pressure are high.
Spray AG
1)No strong acid, no fluoride, no high-risk hazardous waste
2)Only for physical film formation process, does not corrode the glass body, avoids fluorine-containing pollutants and strong acidic waste liquids from the source, and 3)greatly reduces environmental risks.
4)VOC controllable, easy to achieve clean production
5)Water based AG coating and high solid content low VOC system can be used, combined with closed spraying and exhaust gas treatment, to achieve low or even near zero emissions, which is more in line with the requirements of commercial green manufacturing and export environmental protection.
6)Short process, low energy consumption, and minimal waste
7)No need for multi-stage cleaning, neutralization, and wastewater treatment systems, the production line is simpler, and the energy consumption and solid waste volume are much lower than etching, making it suitable for large-scale green mass production of commercial displays.

Future direction of spray coating AG for commercial display

Fog optimization
1)Using monodisperse nano SiO ₂ to reduce particle agglomeration and improve haze uniformity
2)Thin layer is sprayed multiple times to reduce film thickness deviation and achieve stable and consistent haze throughout the entire screen
DOI clarity optimization
1)Optimize resin refractive index matching to reduce light scattering loss
2)Control particle size and distribution, enhance clarity, and achieve "anti glare without blurring"
Environmental optimization
1)Fully adopting water-based AG anti glare coating, VOC approaching zero
2)Closed loop spraying+exhaust gas purification, achieving zero discharge of process wastewater
3)The material complies with RoHS, REACH, and is free of heavy metals and APEO

In total, In the application of commercial display products, spraying AG has significant advantages over etching AG in terms of haze controllability, DOI clarity, and process environmental friendliness:
1)Wide haze range, flexible adjustment, and better consistency in large sizes;
2)Higher DOI, transparent and sharp image, more suitable for high-definition and high brightness commercial displays;
3)Fluorine free and acid free hazardous waste, VOC controllable, green and environmentally friendly, more in line with the trend of modern large screen manufacturing.
