Optical Bonding

Fuxin Glass specialize in the R&D, production, and customization of touch display cover glass. We provide high-quality cover glass solutions for display module manufacturers, complete device makers, and solution providers. We support mainstream cover glass bonding processes and can supply cover glass pre-applied with OCA optical adhesive, 3M adhesive, or other tapes according to customer requirements. This enables clients to perform display bonding directly, shortening production cycles and reducing bonding risks.

Core Service Capabilities

Supported Lamination Methods

Fuxin Glass covers all mainstream lamination technologies and can flexibly match the right process based on product size, structure, and application:

Lamination Method	Process Description	Typical Applications
OCA Optical Full Bonding	Full-surface lamination using optically clear adhesive (OCA) to eliminate the air gap between cover glass and display / touch sensor	Smartphones, tablets, automotive displays, industrial HMI
OCR Full Bonding	Liquid optical adhesive filling, suitable for large-size and curved surfaces	Large-format commercial displays, curved cover glass, outdoor equipment
Frame Bonding (Double-sided Tape)	Edge-only bonding using 3M double-sided tape	Cost-sensitive projects, non-full-lamination needs
G+G / G+F / GFF Structures	Glass-to-glass, glass-to-film, and multi-layer stack lamination	All capacitive touch panel configurations

Adhesive Material Options

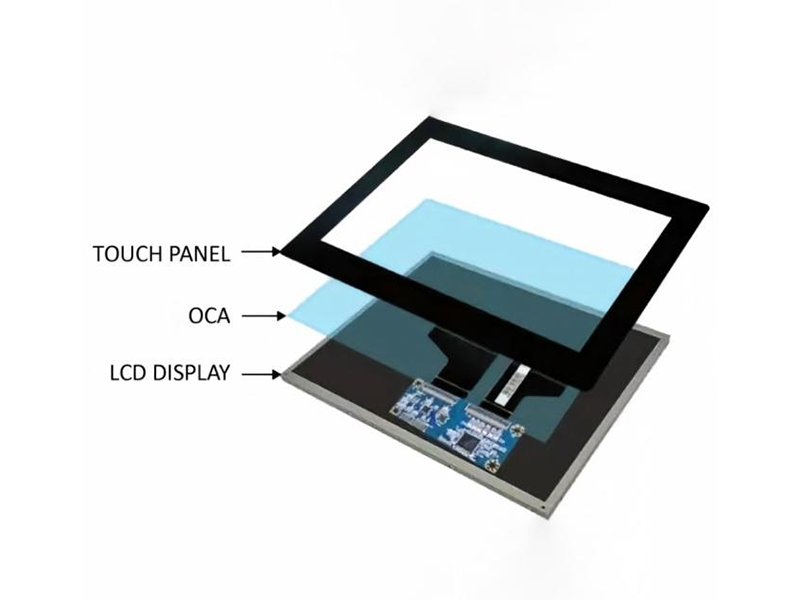

OCA Optical Adhesives

Full range of 3M™ OCA series (e.g., 8305, 8146, 821X) - offering high transmittance (>90%), excellent adhesion, and ITO compatibility.
Also support Japanese and Korean OCA brands, with thickness from μm-300μm.
Suitable for glass-to-glass, glass-to-PET, glass-to-sensor, and other substrate combinations.

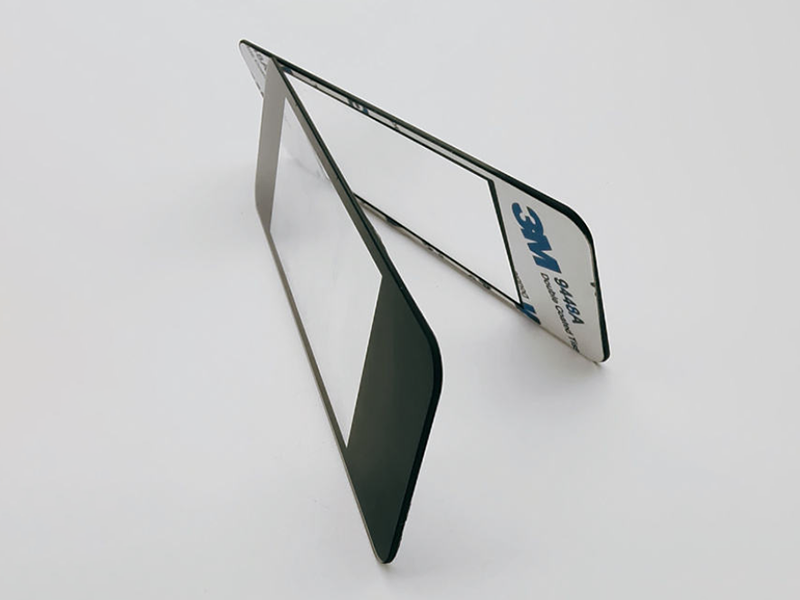

3M Tapes

Precision die-cut and pre-lamination of 3M industrial tapes (double-sided, light-blocking, structural adhesives, etc.)
Ideal for frame bonding, component fixing, and window attachment.

Delivery Formats (Shippable Options)

Format	Description	Customer Benefit
Bare Cover Glass	Finished glass only, without adhesive	For customers with their own lamination lines
Cover Glass + 3M Tape Pre-laminated	3M tape die-cut and pre-placed exactly as per drawing	Ready for installation and fixing, eliminating separate tape mounting
Cover Glass + OCA Pre-laminated	OCA is pre-applied to the back of the cover glass with a release liner	Peel and directly align to the display – no extra adhesive application

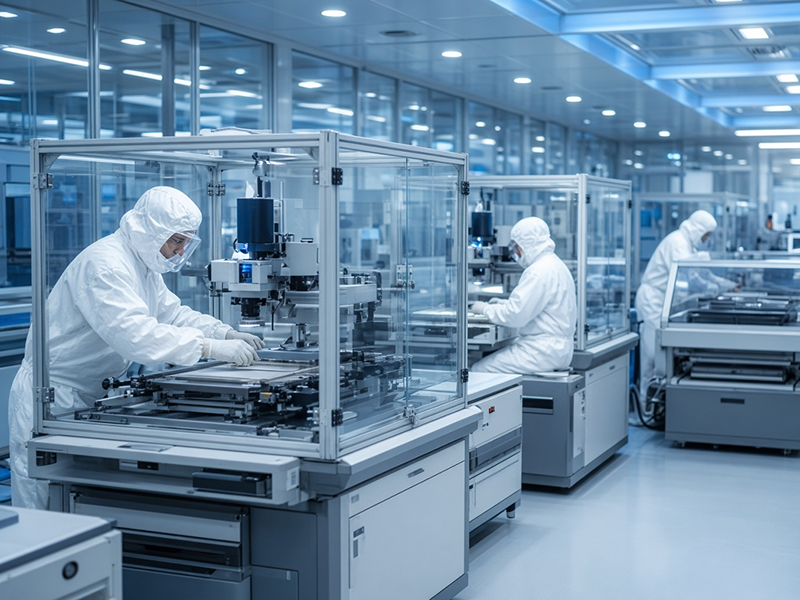

Production Capabilities

Manufacturing Environment:

Class 10,000 cleanroom with local Class 100 zones
Precision lamination equipment, vacuum de-bubbling systems, auto-alignment bonders

Quality Control:

100% visual and functional inspection
Alignment accuracy: ±0.03mm
Light transmittance: >92% for single layer, >88% for full dual-layer bonding
Reliability: No delamination after 1000h at 85°C / 85% RH
Bubble control: no visible bubbles; micro-bubbles < 0.1mm

Core Customization Capabilities of Fuxin Glass

Full-specification Cover Glass Customization

Supports ultra-thin or standard thickness, irregular cutouts, silkscreen printing (black borders/LOGO/buttons), and surface treatments such as AG/AR/AF/AS to meet various requirements for transmittance, hardness, anti-glare, and anti-fingerprint performance.

Full Support for Mainstream Bonding Methods

Compatible with common cover-to-touch panel / display bonding processes, and can be optimized to match customers’ existing production lines and process parameters.

Pre-applied Adhesive Shipping Solutions

Cover glass can be pre-laminated with OCA optical adhesive or 3M adhesive, allowing clients to bond the display directly. This reduces glue purchasing, coating, and alignment steps, improving yield and efficiency.

Flexible Customization and Fast Response

Full process support from sample prototyping to mass production, meeting both small-batch multi-variety and stable high-volume demands.

Customization Cooperation Process with Fuxin Glass

Requirement communication (dimensions, thickness, silkscreen, surface treatment, adhesive requirement, bonding method)

Solution confirmation and sampling

Sample verification and feedback optimization

Mass production and shipment

After-sales technical support

FAQS

1. What cover glass bonding methods do you support?

We support mainstream cover-to-touch panel / display bonding processes and can match customers’ existing equipment and process parameters. We also offer pre-applied OCA, 3M adhesive, and other options for direct client-side bonding.
2. Can you supply cover glass with OCA or 3M adhesive pre-applied?

Yes. We support pre-laminating cover glass with OCA optical adhesive or 3M adhesive. Adhesive type, thickness, and viscosity can be customized according to the customer’s display and bonding requirements.
3. What is the minimum order quantity (MOQ)? How long does sampling take?

We support small-batch sampling and flexible MOQ. Standard sampling lead time depends on complexity; exact delivery schedules will be provided after discussion. Mass production supports stable high-volume delivery.
4. Can thickness, cutouts, silkscreen, and surface treatment be customized?

Fully customizable. Thickness, irregular cutouts, silkscreen content and color, as well as AG/AR/AF and other surface treatments can all be customized according to drawings or samples.
5. How do you ensure bonding performance and reliability for pre-applied adhesive products?

We select matching adhesive types and parameters based on the customer’s bonding process, strictly control adhesive layer uniformity and cleanliness, and cooperate with customers on validation. Appearance and key performance checks are performed before shipment to minimize client-side bonding risks.
6. How can I get a quotation or technical support?

Please provide cover glass dimensions, thickness, requirements for cutouts/silkscreen/surface treatment, whether adhesive is needed (OCA/3M, etc.), estimated quantity, and bonding requirements. We will quickly reply with a solution and quotation and arrange technical communication.
