Can AG Anti-Glare Coated Cover Glass Over 10 Inches Be Applied with OCA?

As a specialized manufacturer of custom AG anti-glare cover glass for capacitive touchscreens, we frequently receive inquiries from overseas clients about optical bonding options—especially for panels larger than 10 inches. The short answer is: Yes, it is possible, but it is significantly more challenging than with smaller sizes. Success depends on the AG process type, glass flatness, OCA thickness, and cleanroom process control.

Why Size Matters in OCA Optical Bonding

OCA (Optically Clear Adhesive) is a solid, pressure-sensitive film that delivers excellent thickness uniformity and clean edges. It works very well for smartphones, tablets, and smaller industrial panels (typically under 10–12 inches).

For cover glass over 10 inches, several issues become more pronounced:

• Bubble formation and residual voids are harder to eliminate across a larger area.
• Yield drops as panel size increases.
• Stress and potential mura (brightness non-uniformity) risks rise.
• Standard OCA sheet sizes and laminator capacity can become limiting factors.

Many industry sources note that OCA full lamination (especially G+G structures) becomes noticeably more difficult around 10 inches and increasingly challenging at 15.6 inches and above. For very large formats, liquid OCR/LOCA is often preferred because of its superior gap-filling ability.

The Critical Role of Single-Sided AG Treatment

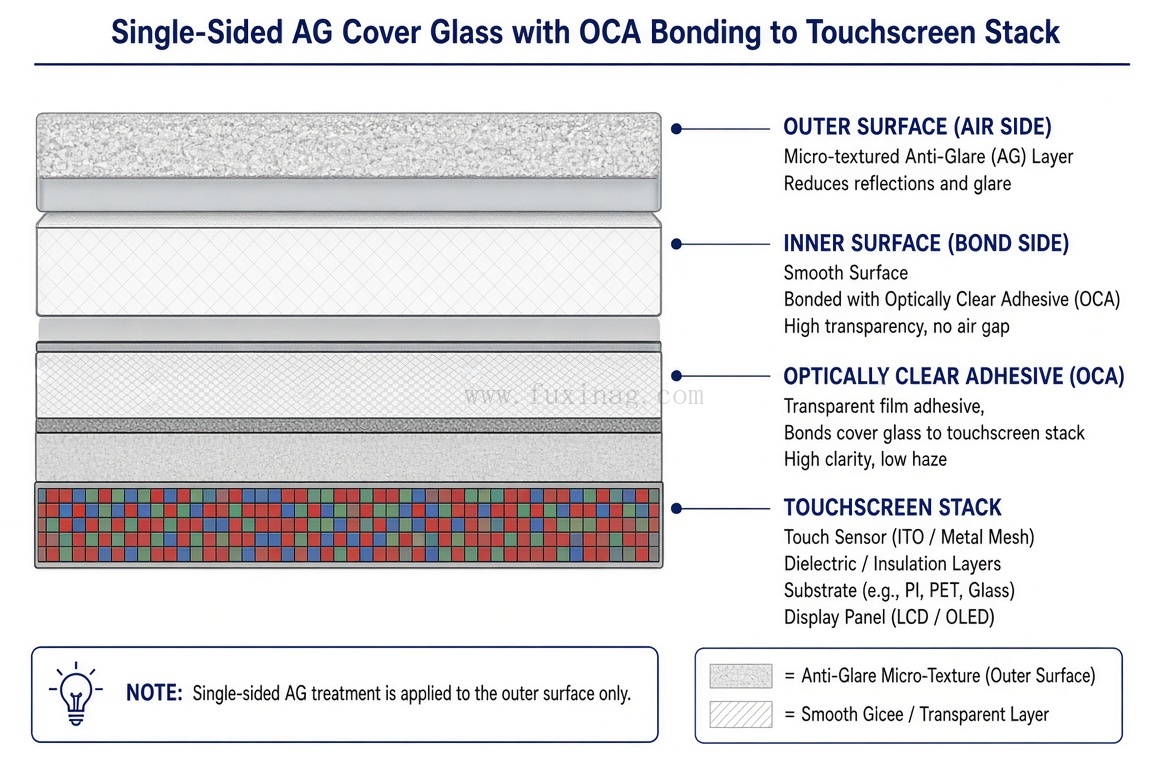

Not all AG glass is suitable for OCA bonding. The key is single-sided AG:

• The outer surface receives the anti-glare etching or coating.
• The inner surface remains smooth and optimized for bonding.

When OCA is laminated to the smooth inner side, the AG performance on the outer surface is fully preserved. Double-sided AG should generally be avoided for full optical bonding, as the adhesive will fill the micro-texture on the bonding side, reducing the anti-glare effect and potentially increasing haze.

Fuxin Glass specializes in controlled single-sided chemical etching and coating AG processes with customizable gloss and haze levels, ensuring the bonding surface meets the strict flatness and cleanliness requirements of high-quality OCA lamination.

When OCA Still Makes Sense for >10" AG Cover Glass

Despite the challenges, OCA remains a viable and sometimes preferable choice in these scenarios:

• Medium-large sizes (10.1" to ~21.5") where clean edges and precise thickness control are critical.
• Projects requiring minimal process complexity and no UV curing step.
• Applications that prioritize reworkability or specific optical stack thickness.
• Use of thicker, higher-flow OCA grades (250–1000 μm) designed for industrial and automotive use.

For demanding outdoor, industrial, or automotive applications that also need AG + high reliability, many customers ultimately choose a hybrid approach or move to OCR bonding. We support both discussions during the design stage.

Why Work with a Dedicated AG Cover Glass Factory

As a custom AG anti-glare cover glass manufacturer focused on touchscreen applications, we provide:

• Single-sided and double-sided AG etching/coating
• Chemical strengthening/Physical tempering
• Silk-screen printing (black borders, logos, icons)
• Custom sizes, shapes, holes, and edge finishing
• Support for both OCA and OCR bonding requirements
• Consistent quality from prototype to volume production

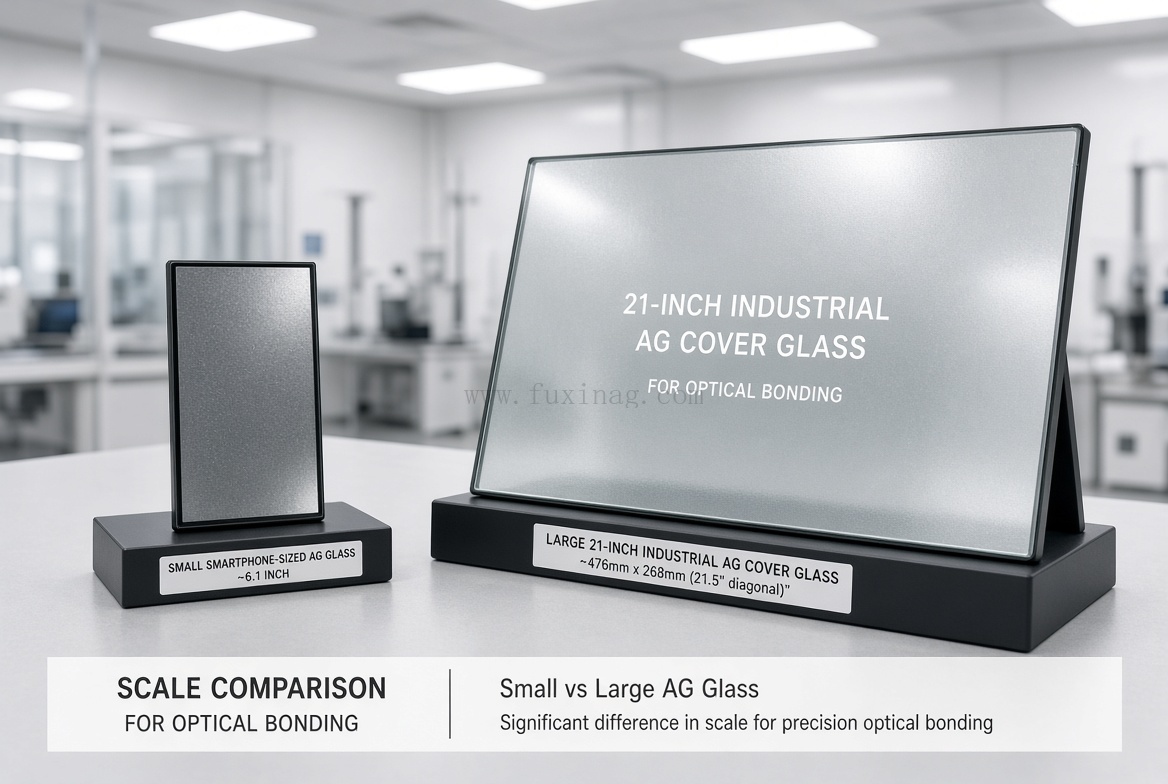

Whether you need AG cover glass for 10.1", 15.6", 21.5", or larger industrial, medical, outdoor, or automotive touch displays, we can help you select the right surface treatment and bonding strategy.
