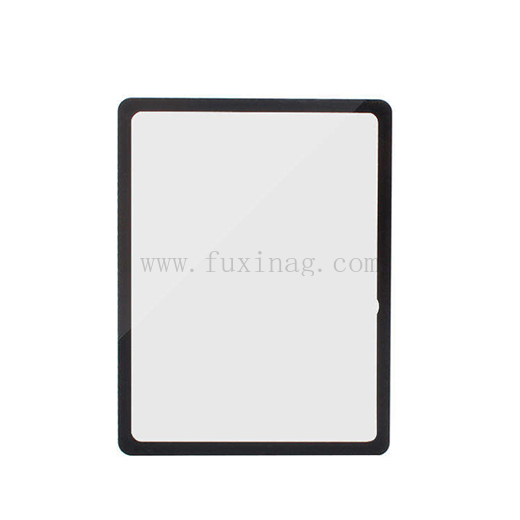

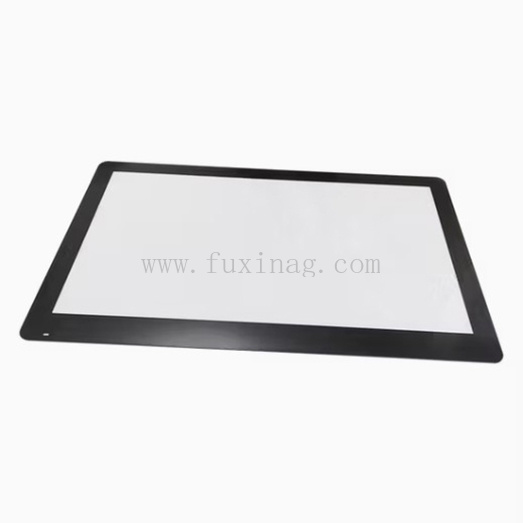

Premium AGC 1.1mm Ultra-Flexible AG Anti-Glare Etched Cover Glass for touchsreen control panel

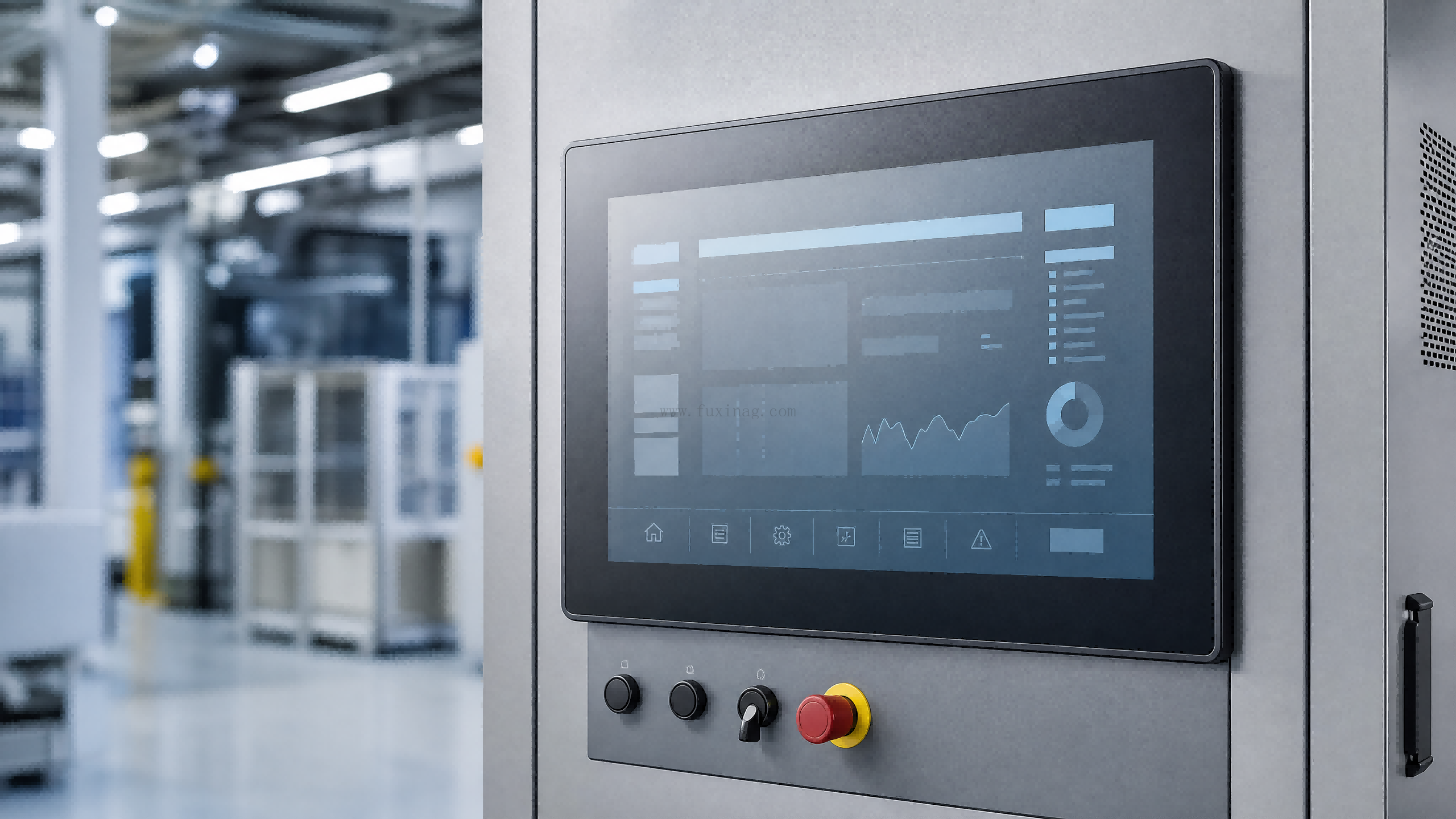

Upgrade your touchscreen control panels with premium AGC 1.1mm ultra-flexible AG anti-glare etched cover glass. Engineered from high-quality AGC substrate and finished with permanent chemical etching, this cover glass eliminates harsh reflections while preserving optical clarity, touch sensitivity, and long-term durability. Ideal for industrial HMI, smart home controllers, medical devices, automotive interiors, and outdoor kiosks where reliable readability under bright or variable lighting is essential.
- Premium AGC Substrate: Made from genuine AGC glass known for exceptional chemical stability, optical clarity, and mechanical strength.
- 1.1mm Ultra-Thin & Ultra-Flexible: Perfect balance of thinness and flexibility — ideal for curved or contoured control panels while maintaining structural integrity.
- Advanced AG Anti-Glare Etching: Precision chemical etching creates a uniform micro-texture that dramatically reduces glare and reflections under bright lighting or outdoor conditions, without sacrificing touch sensitivity or visual sharpness.
- Excellent Optical Performance: High light transmittance (>90%), low haze, and true-to-color display reproduction.
- Superior Surface Properties: Enhanced anti-fingerprint and easy-clean characteristics for long-term clarity in high-use environments.
- Outstanding Durability: High scratch resistance, impact toughness, and chemical resistance suitable for demanding industrial and medical settings.
- Touch Optimization: Smooth, responsive surface compatible with capacitive and resistive touch technologies.
Key advantages include:
- Dramatically reduced glare and reflections for comfortable viewing in bright indoor or outdoor environments
- High light transmittance (typically >89–91%) that maintains display brightness, contrast, and color accuracy
- Low sparkle formulations available for high-resolution screens
- Full compatibility with projected capacitive (PCAP) touch sensors — no loss of sensitivity or accuracy
- Smooth, paper-like tactile feel preferred for frequent touch and stylus interaction
- Superior scratch and abrasion resistance after tempering
- Excellent environmental stability across wide temperature and humidity ranges
Customizable Specifications
| Product Name | Premium AGC 1.1mm Ultra-Flexible AG Anti-Glare Etched Cover Glass for touchsreen control panel |
| Thickness | 1.1mm |
| Hardness | >7h |
| Appearance | Flat Tempered |
| Material | Soda-lime Glass,Aluminosilicote Glass,Low lron Glass,Borosilicote Glass |
| Shape | Regular / Irregular Shape Customized |
| Color | Customized |
| Edge Treatment | Round Edge / Pencil Edge / Straight Edge/ Beveled Edge / Stepped Edge / Customized Edge |
| Tempered | Support (Thermal Tempered / Chemically tempered ) |
| Silk Printing | Standard Printing / High Temperature Ceramic Printing |
| Coating | AG/AR/AF/AM |
| Process | Cut-Edge-Grinding-Cleaning-Inpection-Tempered-Cleaning-Printing-Oven dry-Inspection-Cleaning-Inspection-Packing |
| Package | Protective film + Kraft paper + Plywood crate |
| Shipping | Commercial Express, Sea Shipping |
Edge & Angle
The Key Technical Parameters for Anti-Glare (AG) Cover Glass
Q: What is AGC 1.1mm ultra-flexible AG anti-glare etched cover glass?
It is a premium 1.1 mm thick AGC glass panel with permanent chemical etching that creates a durable anti-glare (AG) surface. Designed for touchscreen control panels, it reduces reflections while remaining thin, flexible, and highly compatible with capacitive touch.
Q: How does the AG etched surface improve visibility on control panels?
The chemically etched micro-texture scatters ambient light, significantly cutting glare and reflections. This delivers clearer readability in bright indoor or outdoor environments without reducing light transmittance or color accuracy.
Q: Is this 1.1mm AG glass compatible with touchscreen sensors?
Yes. The shallow etch does not interfere with projected capacitive (PCAP) touch performance. It maintains full sensitivity, accuracy, and supports optical bonding.
Q: Can the glass be customized for different control panel designs?
Absolutely. Sizes, shapes, edge finishing, holes, silkscreen printing, chemical strengthening, and optional anti-fingerprint coating can all be customized to match your exact requirements.
Q: Why choose chemically etched AG glass over coated anti-glare films?
Etched AG is permanent—it will not peel, wear off, or degrade over time. Combined with AGC's high-quality substrate, it offers superior durability, scratch resistance, and long-term optical stability for industrial and commercial use.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
