Custom Size Thickness Double-Sided Vacuum-Deposited 98% Transmittance AR Cover Glass for Displays & Optical Instruments
- Double-Sided Vacuum-Deposited AR Coating: Advanced multi-layer vacuum deposition technology applied to both sides for superior anti-reflective performance and long-term durability.
- 98% High Transmittance: Maximizes light throughput for brighter, clearer, and more accurate visual results.
- Custom Size & Thickness: Precision cut and finished to your exact dimensions and thickness requirements — from ultra-thin to robust protective layers.
- Low Reflectance: Significantly minimizes glare and unwanted reflections, improving contrast and readability even in bright environments.
- High Optical Clarity & Uniformity: Excellent surface quality with minimal distortion, ideal for high-resolution displays and sensitive optical paths.
- Durable & Protective: Scratch-resistant, easy-to-clean surface that safeguards underlying components while maintaining optical excellence.
- Broad Wavelength Compatibility: Optimized performance across visible spectrum (and customizable for specific IR/UV ranges upon request).
Parameters of AR glass
| Parameters | Ordinary glass | One side AR glass | Double sides AR glass |
| Color | Clear | Blue-purple | Natural color |
| Optical curve | / | V | W |
| Transmittance | ≤89% | ≥93% | ≥98% |
| Reflection | ≥8.4% | ≤5.2% | ≤1% |
| Application | Low-end product | Mid-range display panel | High-end display panel |
| Hardness | ≥7H | ≥7H | ≥7H |
| High temperature resistance | / | Fully tempered or semi-tempered at 650 degrees, AR coating layer no change. | |
Technical Specifications
| Light Transmittance | ≥ 98% | 380–780nm visible spectrum |
| Surface Reflectance | < 1.0% (≤ 0.5% per surface) | @ 550nm |
| Surface Hardness | ≥ 7H (up to 6H–7H) | Pencil hardness test |
| Haze Value | < 0.5% | Ensuring true image integrity |
| Chemical Durability | High resistance | Resists abrasion from cleaners and solvents |
| Coating Technology | Vacuum Deposition (PVD) / Magnetron Sputtering | Double-sided multi-layer AR |
| Reflection Color | Purple (standard) | Optional customization |
| Cleanroom Standard | Class 1000 | Manufactured in controlled environment |
- Consumer and industrial displays (LCD, OLED, touchscreens, digital signage)
- Optical instruments (microscopes, cameras, sensors, spectrometers, telescopes)
- Medical and laboratory equipment
- Automotive and aviation displays / HUDs
- Augmented reality (AR) / virtual reality (VR) devices
- Industrial inspection and machine vision systems
- High-end photography and imaging equipment
Fuxin vacuum deposition process delivers denser, more uniform coatings compared to many conventional methods, resulting in higher transmittance, better durability, and superior optical performance. Combined with flexible custom sizing and thickness, this product helps OEMs and instrument manufacturers achieve clearer images, higher efficiency, and more competitive end products.

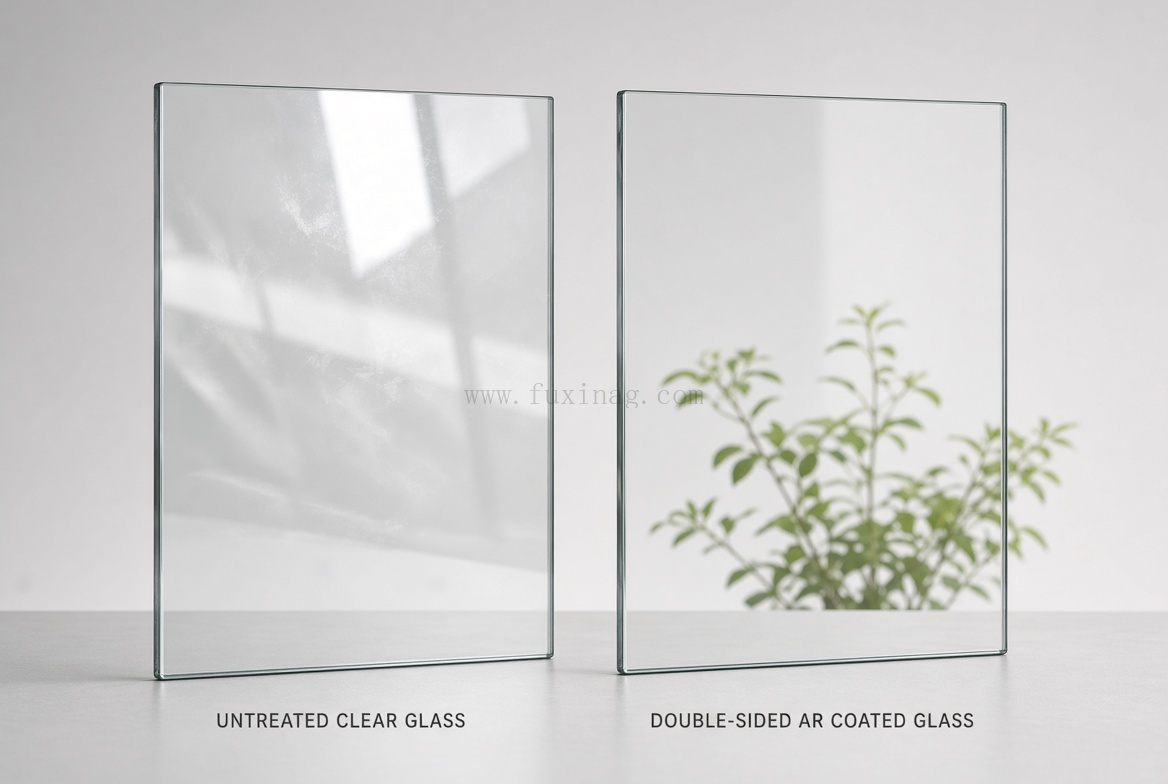

Double-Sided AR Coating Glass features anti-reflective coatings on both surfaces, significantly reducing reflected light and enhancing light transmission for a clearer, more transparent effect.
Yes. We support custom dimensions and shapes tailored to your specifications, including complex cutouts and special-shaped designs.
Absolutely. With ≥7H surface hardness and durable AR coating, our glass offers excellent scratch and abrasion resistance.
Yes, we offer optional oleophobic (anti-fingerprint) coatings that enhance stain resistance and make the glass easy to clean—ideal for frequently handled devices.
Our AR coatings are tested for durability and resistance to weathering. They are suitable for long-term outdoor or high-light exposure with minimal degradation.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Factory Overview
Inspection Progress
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
