Bespoke Thickness Size AGC Corning AF Anti Fingerprint Cover Glass for Interactive Kiosks POS Systems
Designed specifically for commercial touch applications, every piece is manufactured to your exact thickness and size requirements, ensuring perfect fit, optimal touch sensitivity, and seamless integration with your existing hardware.
Key Features & Benefits
- Fully Customizable — Specify exact thickness (typically 0.7 mm – 3.0 mm+) and dimensions to match your kiosk or POS display requirements.
- AGC / Corning Substrate Options — Choose from premium AGC or Corning glass bases known for high strength, excellent optical transmission, and consistent quality.
- Advanced AF (Anti-Fingerprint) Coating — Significantly reduces fingerprint marks, smudges, and oil residue. Surfaces stay cleaner longer and wipe clean with minimal effort.
- High Durability for Commercial Use — Enhanced scratch and impact resistance suitable for high-traffic interactive environments.
- Superior Optical Clarity — High light transmittance and low haze maintain vibrant display quality and accurate color reproduction.
- Excellent Touch Performance — Optimized surface properties support smooth, responsive capacitive touch operation.
- Easy Maintenance — AF coating reduces cleaning frequency and improves hygiene in public-facing installations.
Technical Specifications
|
Material
|
AGC Dragontrail™ / Corning Gorilla Glass / Aluminosilicate Glass
|
|
Thickness
|
0.5mm – 6mm+
|
|
Surface Hardness
|
7H – 9H (Pencil hardness)
|
|
Light Transmittance
|
≥91% (up to 95% with AR)
|
|
Water Contact Angle
|
≥110° (initial)
|
|
Oil Contact Angle
|
≥75° (initial)
|
|
AF Coating Thickness
|
10nm – 20nm
|
|
Abrasion Resistance
|
>3,000 cycles (steel wool)
|
|
Sliding Angle
|
≤10°
|
|
Edge Treatment
|
CNC grinding, polishing, chamfering
|
|
Tempering
|
Chemical tempering / Thermal tempering
|
|
Printing
|
Silk-screen printing (up to 7 colors)
|

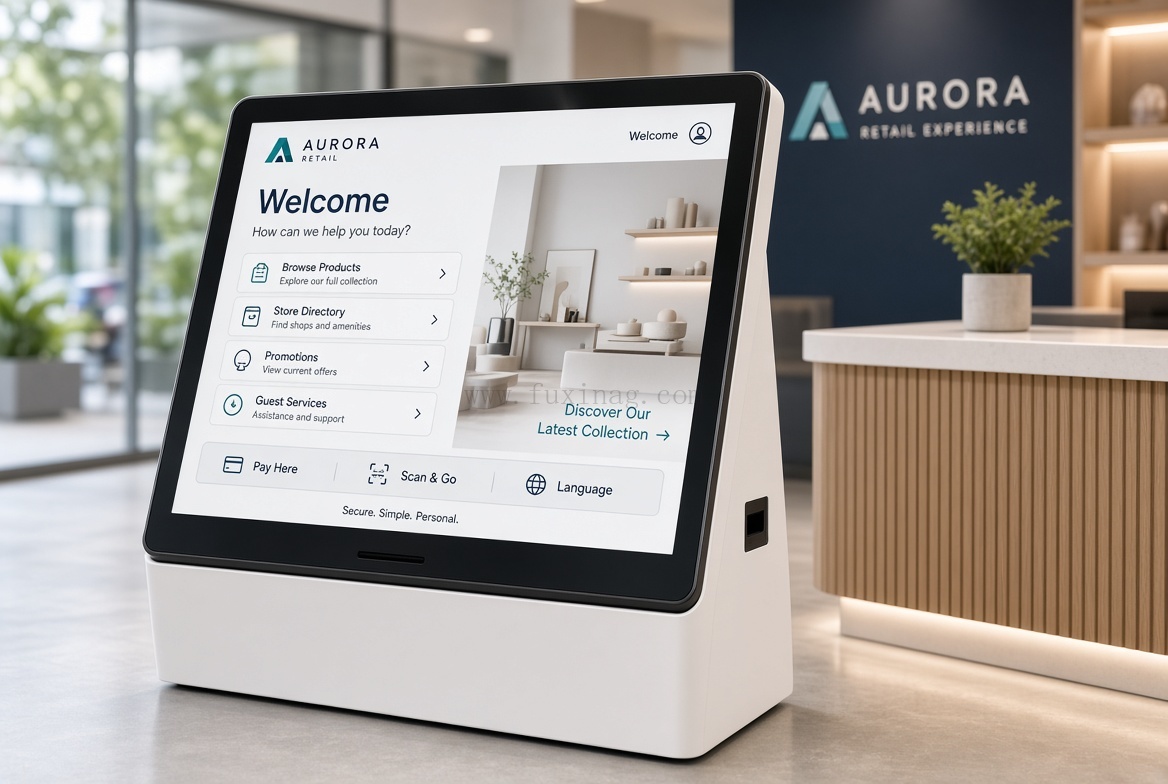

Ideal Applications
- Interactive information kiosks
- Retail and restaurant POS systems
- Self-checkout and self-service terminals
- Banking and payment kiosks
- Healthcare and hospitality interactive displays
- Industrial and public-access touchscreens
Why Choose Our Bespoke Cover Glass?
Unlike off-the-shelf solutions, our glass is manufactured to your precise specifications. This eliminates fit issues, reduces assembly time, and ensures optimal performance with your chosen touch controller and display. The AF coating is engineered for real-world commercial conditions — maintaining clarity and cleanliness where standard glass quickly becomes marked and difficult to maintain.
Whether you need small-batch prototypes or volume production, we support flexible order quantities and consistent quality control.

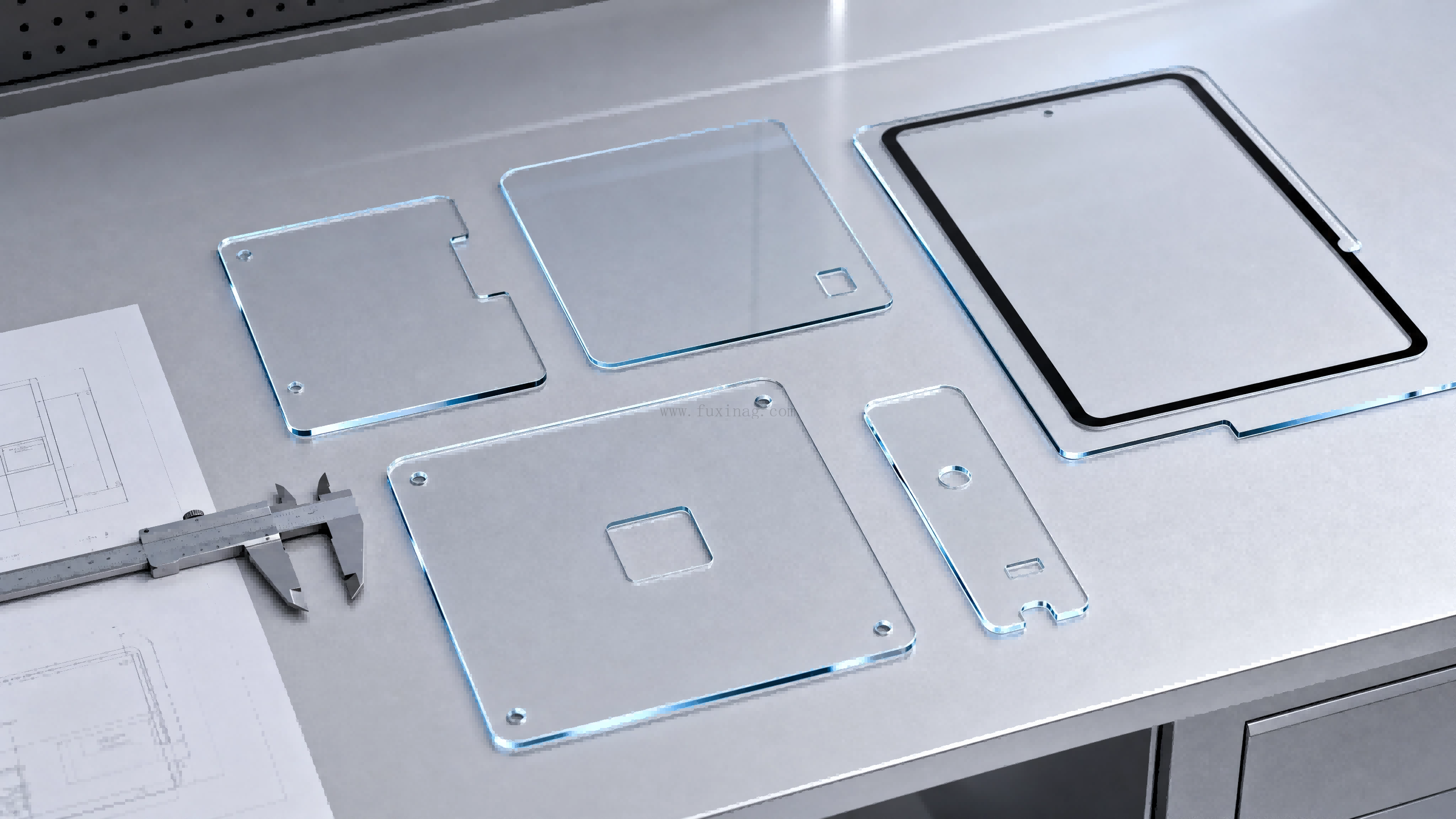

Ordering & Customization Process
- Provide your required thickness, exact dimensions, quantity, and any special edge or coating requirements.
- Receive a detailed quotation and lead-time confirmation.
- Approve samples if needed.
- Production and delivery of your custom AF cover glass.
A: AF (Anti-Fingerprint) is an oleophobic coating that repels skin oils, reducing visible fingerprints and making the surface easier to clean while maintaining high touch sensitivity.Q: Is this glass custom-made?
A: Yes, we specialize in factory-direct OEM/ODM with full customization in size, thickness, printing, and coatings.Q: What industries use this tempered cover glass?
A: Widely used in industrial displays, medical equipment, consumer electronics, automotive, and smart devices.Q: How durable is the tempered glass?
A: Significantly stronger than annealed glass and designed to break safely. It resists scratches and impacts effectively.Q: Do you offer MOQ and samples?
A: Contact us for low MOQ options and sample availability.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!

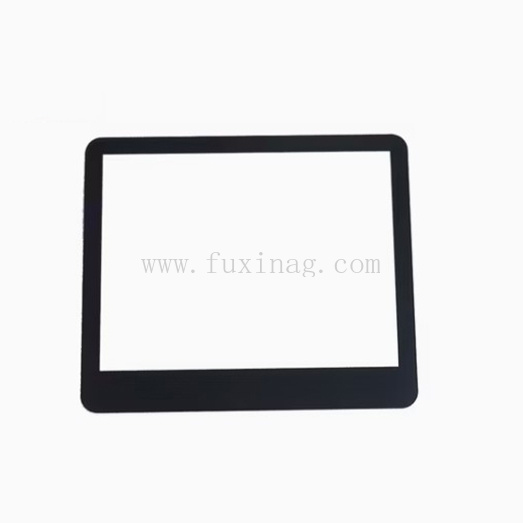

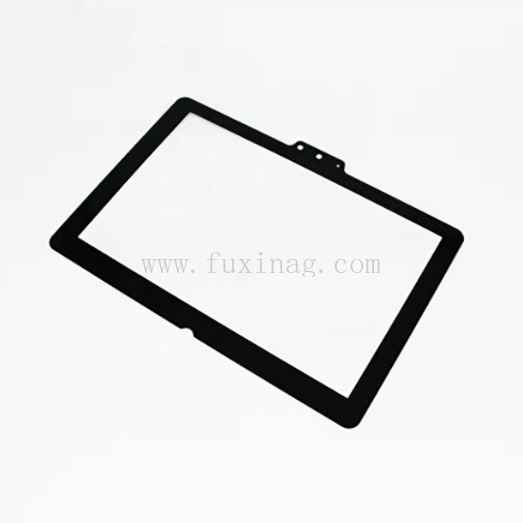

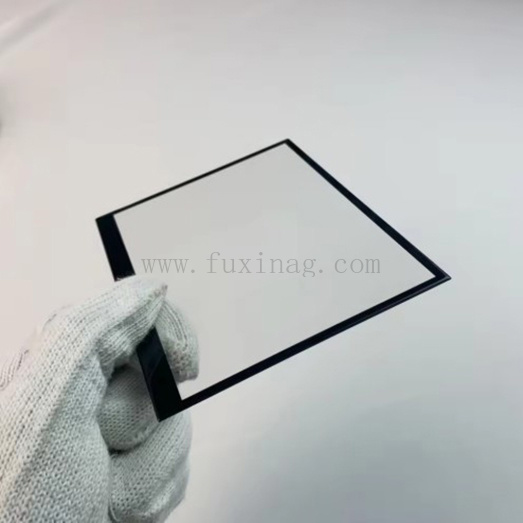

Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
