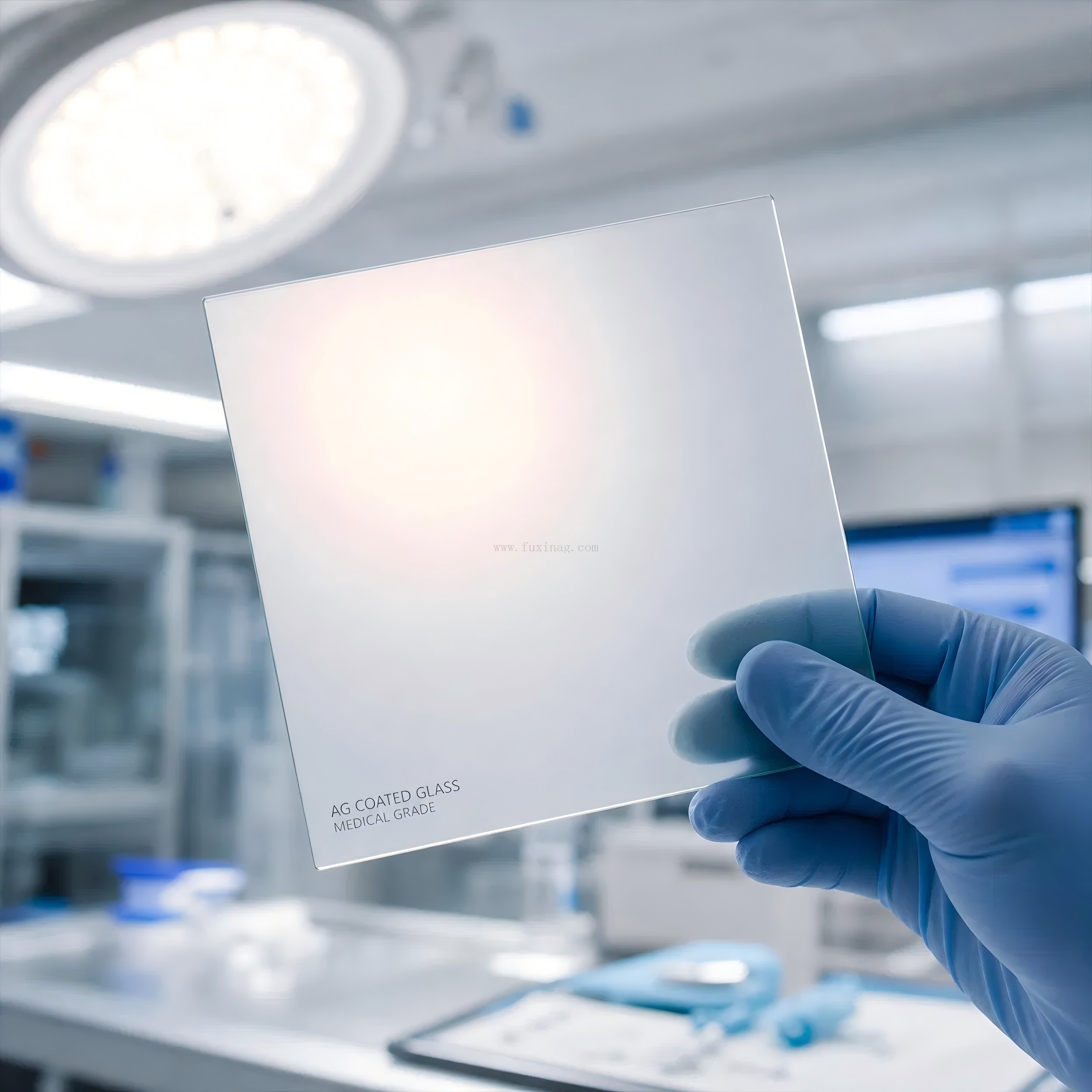

AG coated glass for medical displays
- Superior Glare Reduction — Diffuse reflection eliminates distracting highlights from surgical lamps or ambient lighting.
- Enhanced Image Clarity & Contrast — High transmittance (>89%) preserves sharp details for diagnostics and monitoring.
- Improved Viewing Angles — Readable from multiple positions, ideal for team consultations.
- Durability & Hygiene — Chemically strengthened or tempered options resist scratches, impacts, and frequent disinfection with hospital-grade cleaners.
- Customizable — Tailored gloss, haze, roughness (Ra 0.5-1.0 µm recommended for medical), thickness, and sizes to fit specific displays.
- Eye Comfort — Reduces fatigue during long procedures or monitoring shifts.
- Material: Soda-lime, low-iron, or chemically strengthened glass (e.g., Gorilla, Dragontrail equivalents).
- Thickness: 0.7mm – 6mm (common: 1.1mm, 2mm, 3mm).
- Gloss Levels: 35–110 GU (medical often ~95 GU for balanced clarity).
- Haze: Low to moderate (optimized for minimal diffusion while controlling glare).
- Transmittance: >89%.
- Surface: Single or double-sided AG treatment.
- Options: Tempered, anti-fingerprint (AF), Anti microbial combinations, edge polishing, printing.
- Compliance: Suitable for medical device integration (RoHS, REACH, JIS etc.).

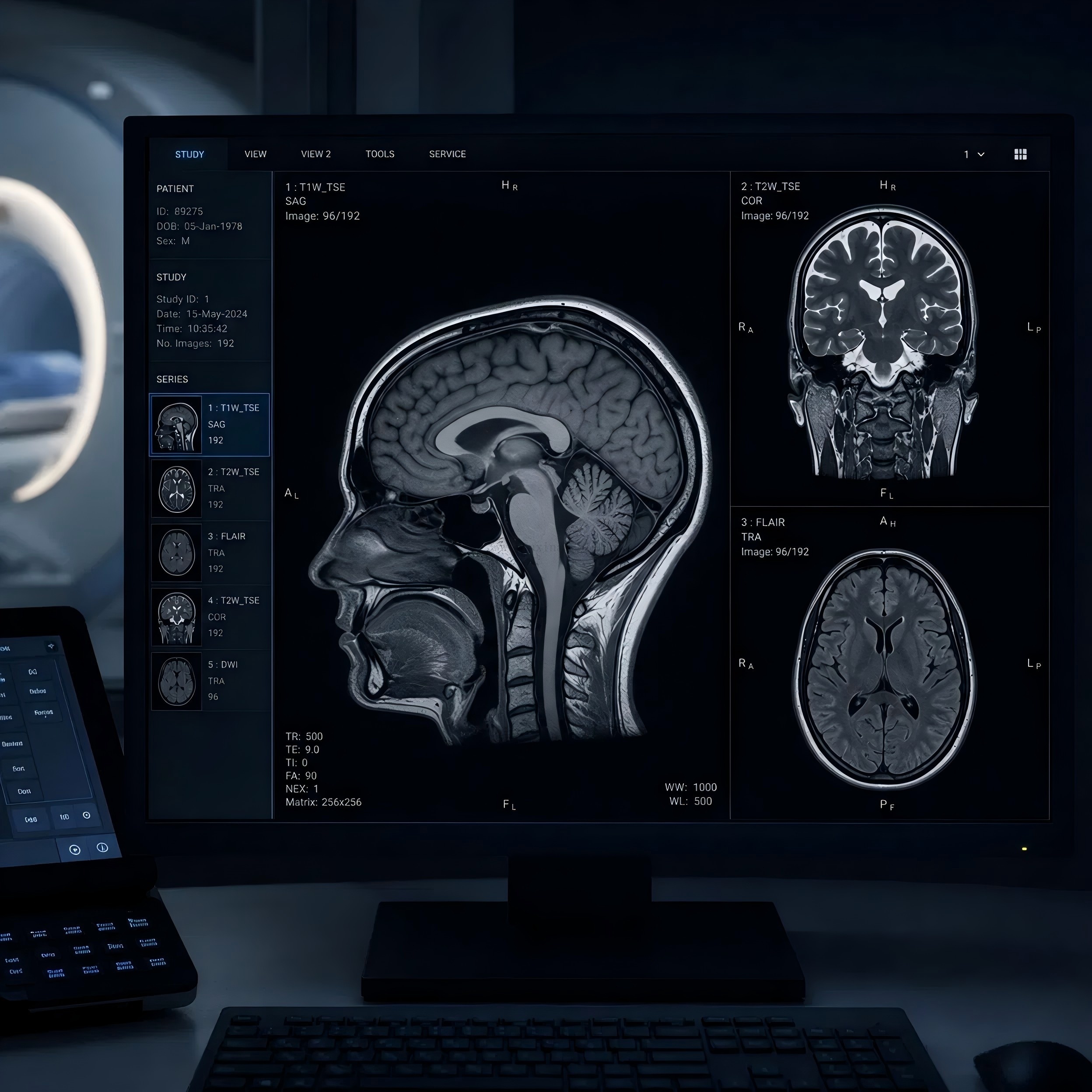

- Diagnostic radiology monitors

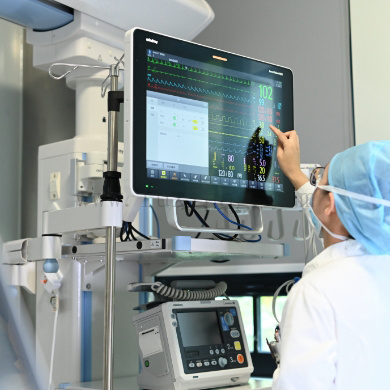

- Patient monitoring systems
- Surgical and operating room displays
- Ultrasound and endoscopy equipment
- Portable medical devices
- Laboratory analyzers and imaging systems
Why choose Fuxin Glass?
We choose AG spraying rather than AG etching for commercial display meeting machine. It will flexblely applies to custom glass haze, bringing higher brightness, high definition.
1. Haze Control and Optical Performance
Etched AG: Haze is determined by the depth of chemical etching, and once formed, it cannot be adjusted. Large-size glass is prone to uneven etching, resulting in large haze deviations, localized over-etching or under-etching, making it difficult to meet the high requirements of commercial displays for overall screen consistency.
Spray-coated AG (Significant Advantages): Wide adjustable haze range, precise and controllable. Spray-coated AG allows for continuous haze adjustment within a wide range of 3% to 25% by adjusting the amount of nanoparticles added, the number of coating layers, and the film thickness. This flexibly matches the anti-glare requirements of different scenarios such as indoor advertising machines, conference tablets, and high-brightness commercial displays.
Superior Uniformity for Large Sizes: Utilizing automated multi-gun spraying, the film thickness distribution is uniform, resulting in minimal haze fluctuations across the entire panel, with no bright spots or bright/dark stripes, making it more suitable for large-size commercial display panels of 55 inches and above.
2. Environmental Comparison of Manufacturing Processes
Etching AG: Utilizes hydrofluoric acid and strong acid systems, generating fluoride-containing wastewater, acidic waste gas, and hazardous waste residue during production. This results in significant investment in environmental treatment facilities, high hazardous waste disposal costs, and substantial environmental risks and regulatory pressure.
Spray Coating AG: Free of strong acids, fluorides, and highly hazardous waste. A purely physical film-forming process that does not corrode the glass substrate, avoiding fluoride-containing pollutants and strong acidic waste liquids at the source, significantly reducing environmental risks.
Controllable VOCs, Easy to Achieve Cleaner Production: Water-based AG coatings and high-solids, low-VOC systems can be used, combined with closed-loop spraying and waste gas treatment, easily achieving low or even near-zero emissions, better meeting the green manufacturing and export environmental requirements for commercial displays.
Shorter Process, Lower Energy Consumption, Less Waste: Eliminates the need for multi-stage cleaning, neutralization, and wastewater treatment systems, resulting in a simpler production line. Energy consumption and solid waste volume are far lower than etching, making it suitable for large-volume, large-size green mass production of commercial displays.
Anti-glare uses surface diffusion (matte effect) to scatter light, ideal for bright environments. Anti-reflective uses coatings to minimize reflection .Will it affect touch screen sensitivity?
No. Our glass is engineered to be thin and optically clear, preserving full multi-touch responsiveness.
Yes, compatible with standard medical cleaners; durable surface prevents degradation.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
