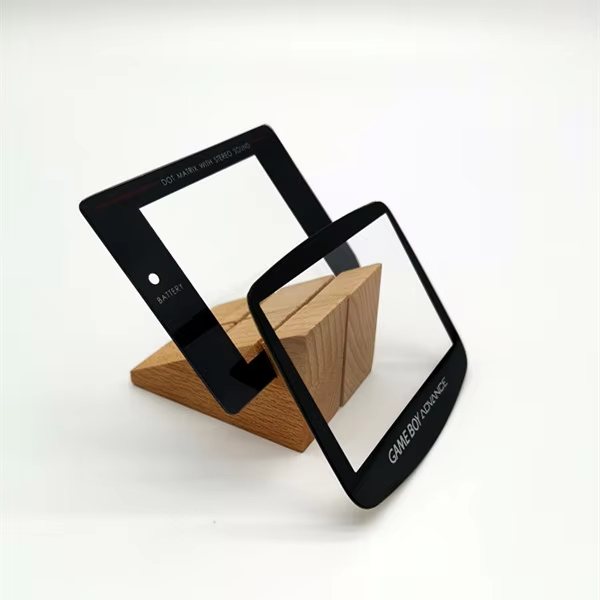

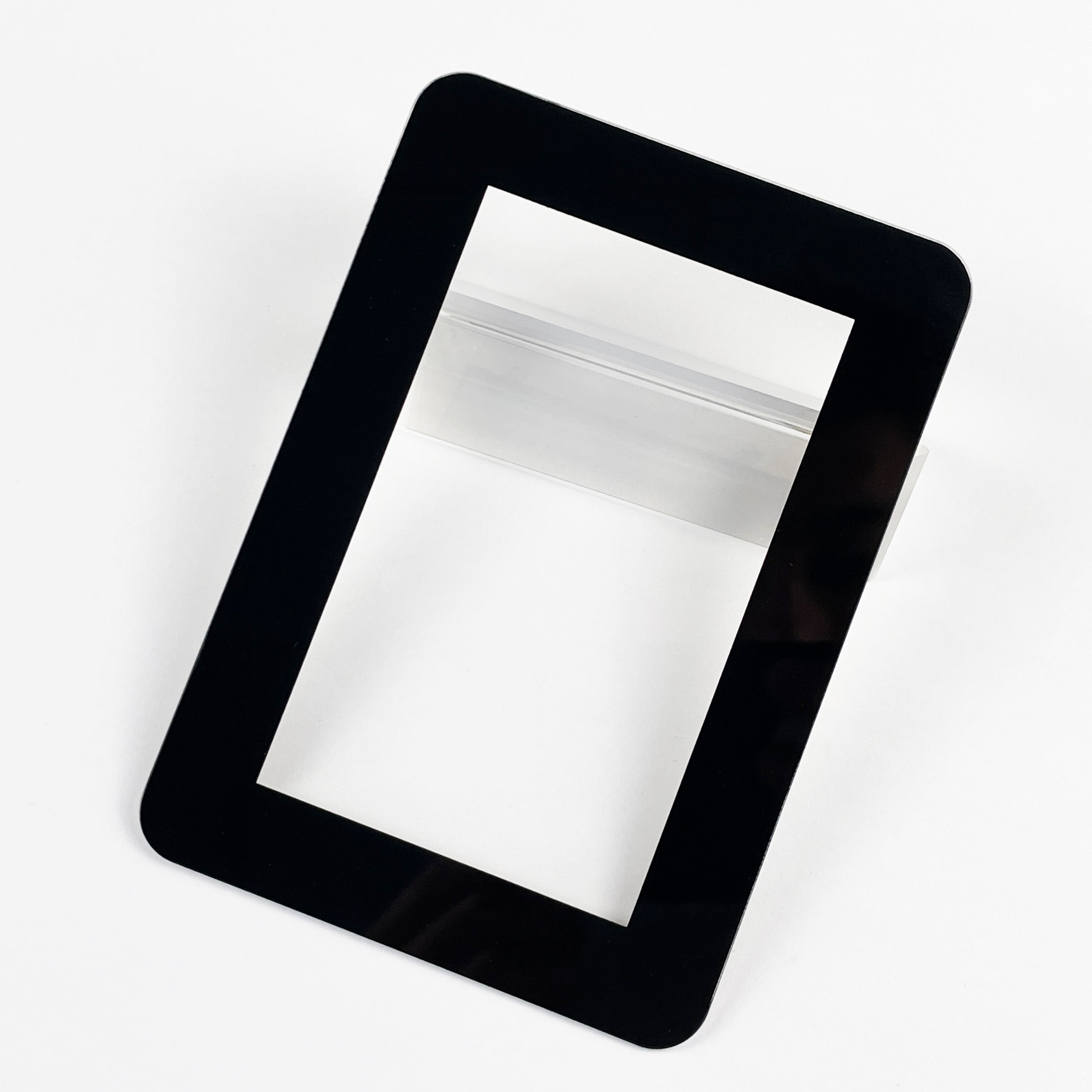

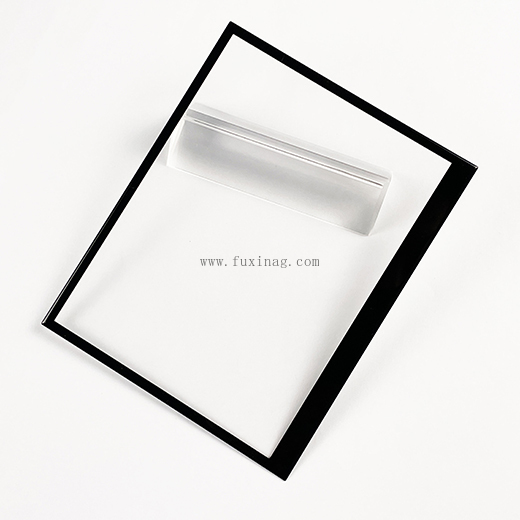

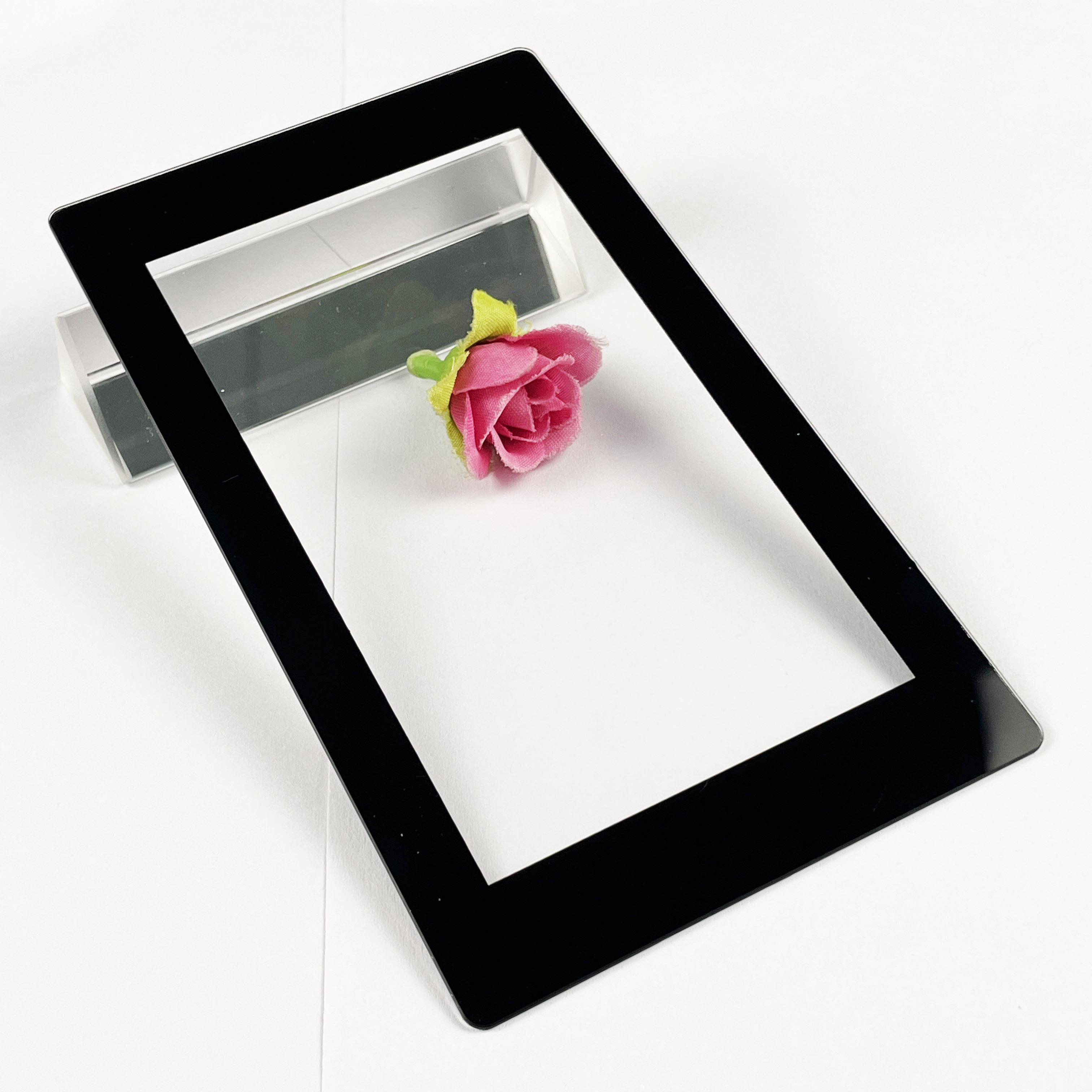

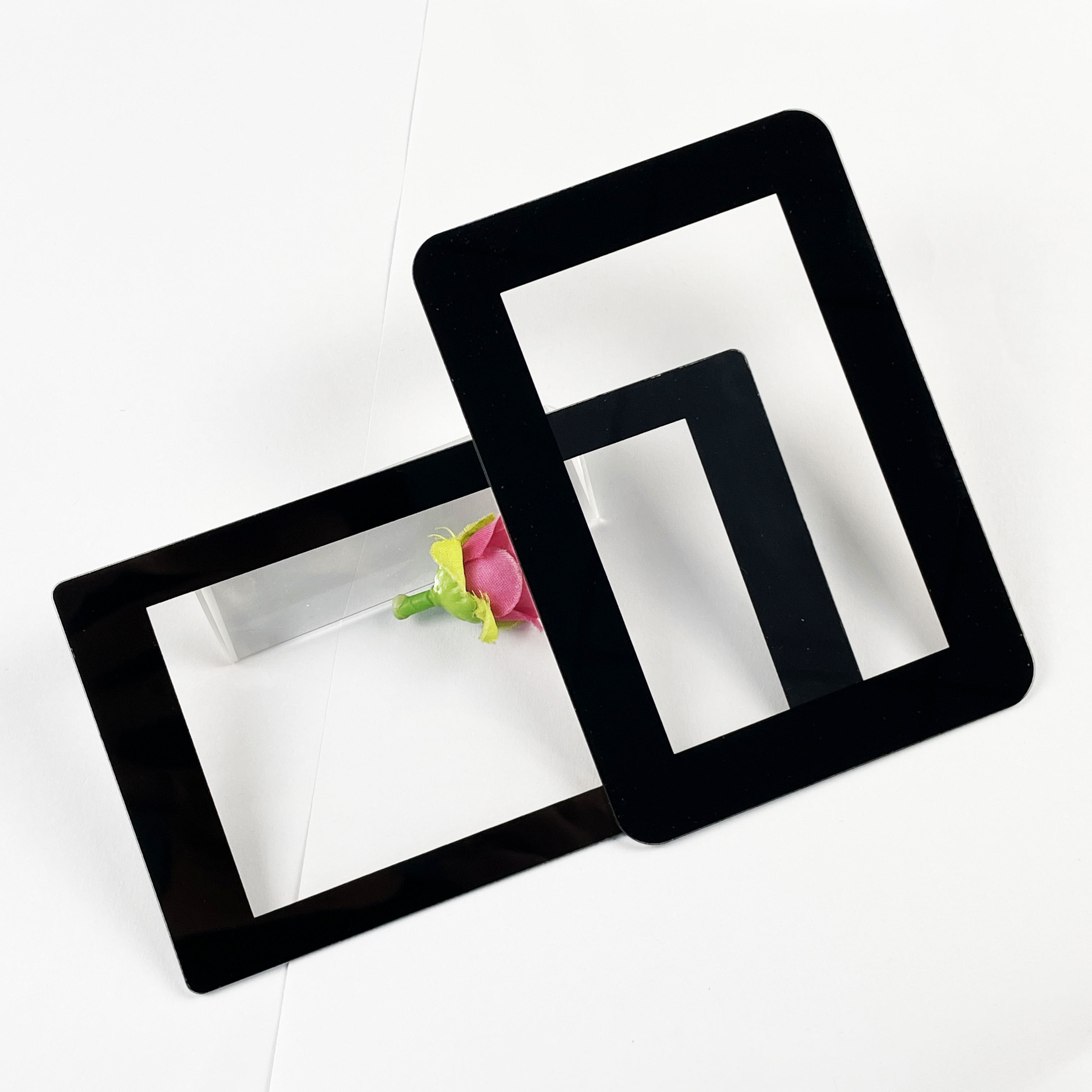

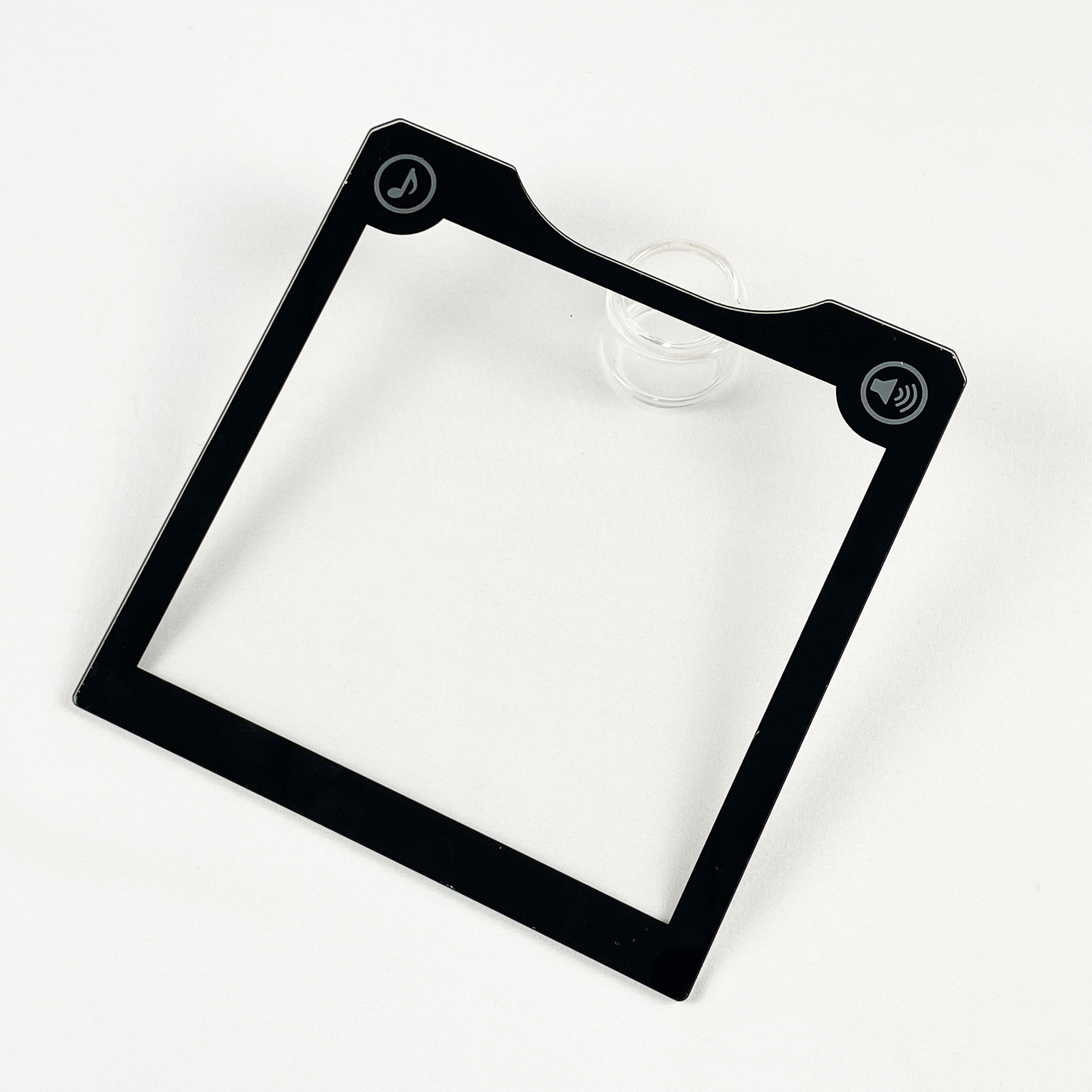

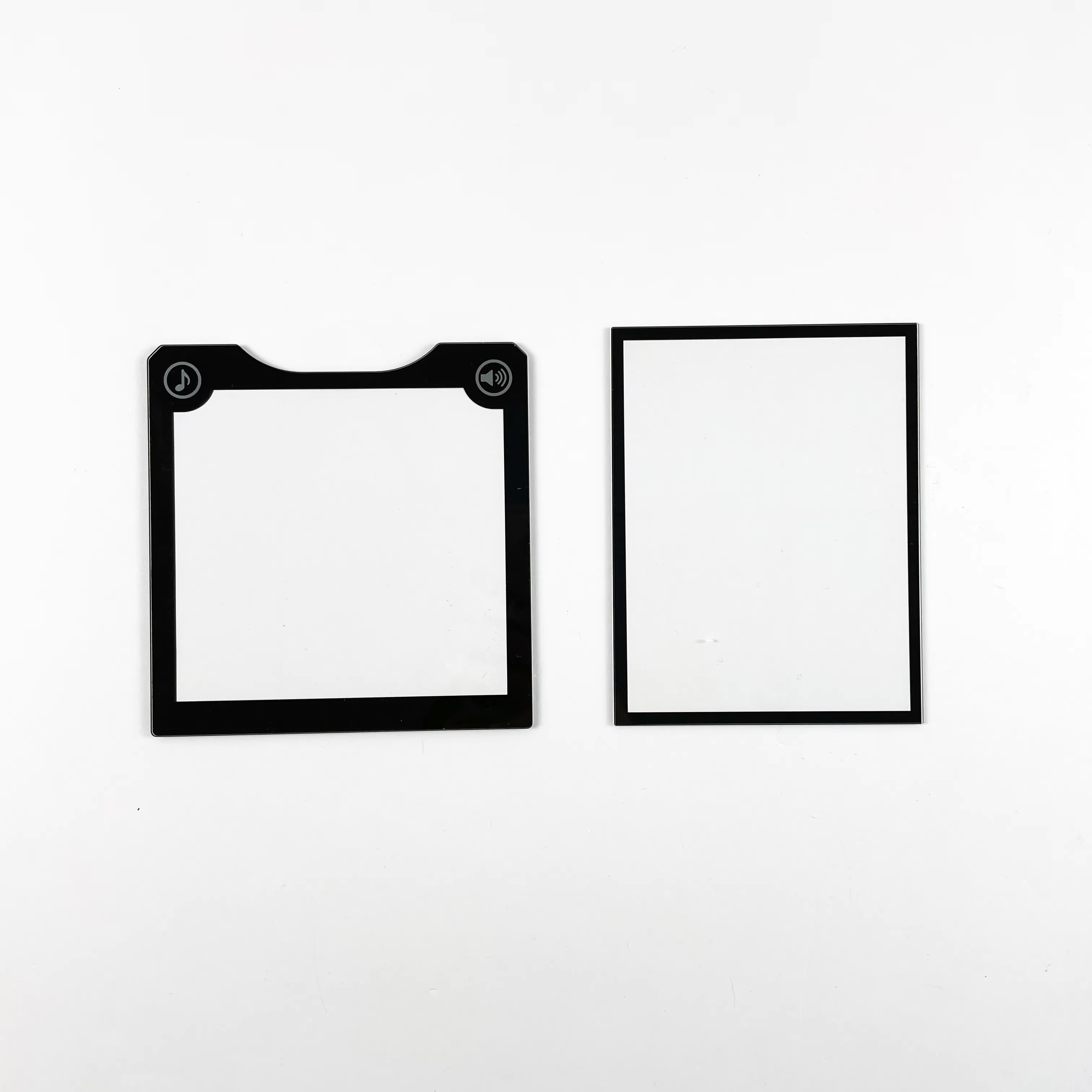

Custom Black Silk-Screen Tempered Glass Touchscreen Panel
Customizable Specifications
| Product Name | Custom Black Silk-Screen Tempered Glass Touchscreen Panel |
| Size | 0.5 mm, 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, etc. |
| Material | Ultra-clear crystal glass, etc. |
| Shape | Regular / Irregular Shape Customized |
| Edge | Flat polished edges, rounded polished edges, beveled polished edges, etc. |
| Silk Printing and color | We can screen print various patterns and colors, one pattern per color, with a maximum of five colors. For non-standard colors, please provide Pantone color codes or RAL color codes. |
| Coating | AG/AR/AF、ITO coating, acid etching |
| Process | Cut-Edge-Grinding-Cleaning-Inpection-Tempered-Cleaning-Printing-Oven dry-Inspection-Cleaning-Inspection-Packing |
| Package | Protective film + Kraft paper + Plywood crate |
| Shipping | Commercial Express, Sea Shipping |
| HS Code | 7007190000 |
Appearance and Screen Printing Performance: High light-blocking properties + Precise and aesthetically pleasing, suitable for high-end designs
Black silk-screen printing serves as the core aesthetic and functional element of this panel. Customized processes enable it to fulfill multiple requirements: decoration, light blocking, and functional zoning.
-
High light-blocking rate, eliminating backlight leakage
Utilizing high-opacity black UV-curable ink or high-temperature sintered ink, the screen printing layer achieves ≥99% light-blocking efficiency. This completely obscures the circuitry, components, and backlight modules behind the touchscreen, preventing light leakage that causes display whitening and image distortion.
Compared to standard black screen printing, Custom solutions enable zoned printing (full light blockage on borders + semi-translucent/translucent key areas), with ±0.02mm precision at light-transmitting/blocking boundaries. No jagged edges or ink bleed, compatible with irregularly shaped touch panels. -
Color uniformity with excellent weather resistance
Black ink exhibits high color consistency with a color difference ΔE ≤ 1.5, ensuring no noticeable color variation during mass production. After 1000 hours of UV aging and high/low temperature cycling tests, it shows no fading, yellowing, or chalking. Long-term use maintains either a matte or glossy texture (customizable surface gloss: matte 30-50 GU, glossy 80-100 GU). -
Strong adhesion, wear-resistant, and scratch-proof
The screen-printed layer bonds to the tempered glass substrate via chemical bonding (high-temperature sintering process) or UV cross-linking curing, achieving adhesion meeting GB/T 9286-1998 Grade 1 standards (≥99% no peeling area after cross-hatch adhesion test). The Surface can be overlaid with a wear-resistant coating, withstanding 1000 abrasions by 500g-load steel wool without scratches, preventing wear-through of the silk-screen layer to expose the substrate during daily use.
Custom Black Silk-Screen Tempered Glass Touchscreen Panel Its core competitiveness lies in the seamless integration of customizable aesthetics and functional practicality. This solution achieves premium minimalist design through black silk-screen printing while leveraging the strength and touch compatibility of tempered glass to meet diverse application requirements. It represents a high-value-added custom category within electronic touchscreen products.
Edge & Angle
Production Process
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
