Custom smart touch tempered glass for home appliance electrical electronic display screen with AG/AR/AF coating

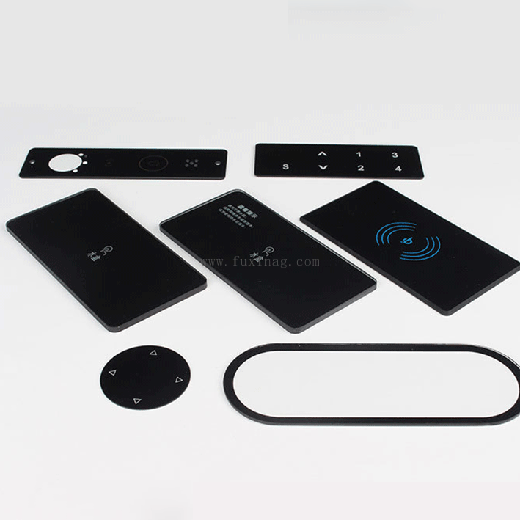

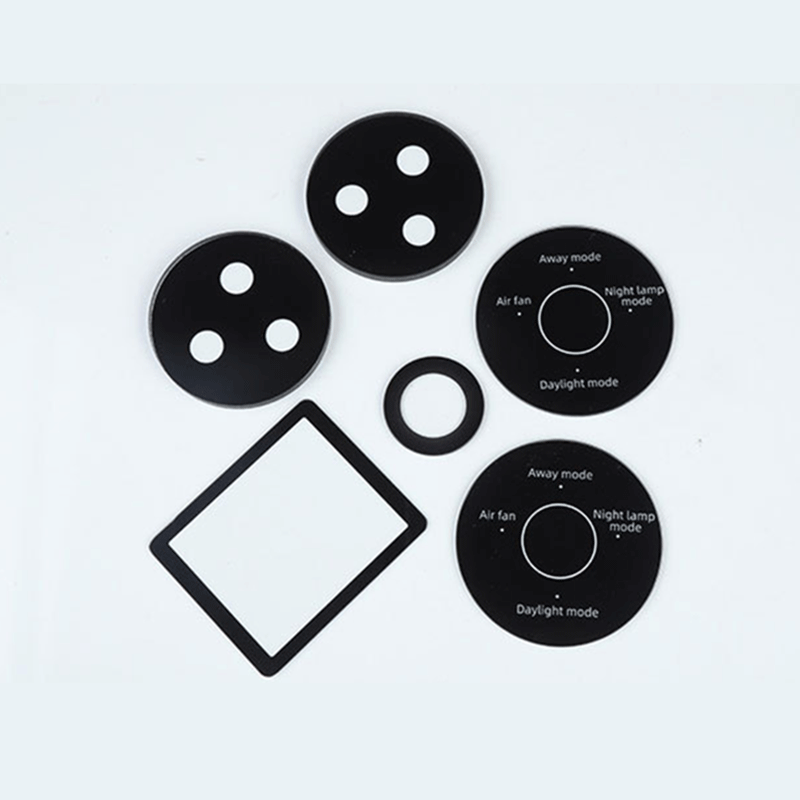

Definition: Tempered glass designed specifically for touch screens, integrating touch functionality while offering high strength and sensitive operation.

Process: Original sheet cutting → Edge grinding → Tempering (physical/chemical reinforcement, increasing strength by 3-5 times) → Silk screen printing (optional, marking touch areas) → Cleaning and inspection.Features:Sensitive touch: supports multi-touch, fast response speed (≤5ms).

Safe and durable: impact-resistant after tempering, breaks into blunt angle particles; surface hardness ≥9H (Mohs hardness), scratch-resistant and wear-resistant.

High light transmittance: light transmittance rate ≥90%, ensuring a clear display.Applications:Smart switches, tablet protection screens, query machine touch panels, home appliance touch display screens (such as refrigerators, washing machines).

Definition: Glass that has patterns, text, or decorative layers formed on its surface through screen printing, combining aesthetics with functionality.

Process: Pre-treatment: Cutting, edge grinding, and cleaning of the glass (in a dust-free environment to ensure a clean surface).

Ink Printing: Manual / Machine screen printing: High-temperature / low-temperature inks are printed on the glass (high-temperature inks require baking in a tempering furnace, while low-temperature inks cure in an oven).

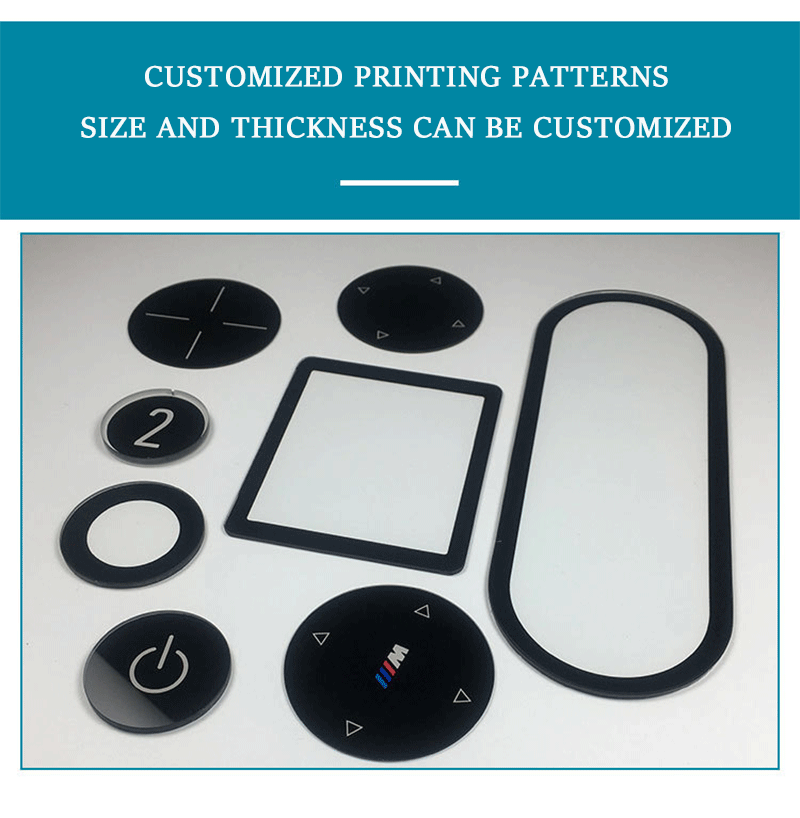

Pattern Customization: Supports multi-color overprinting (such as brand logos, decorative patterns, scale markings), with vivid colors that do not fade.

Post-treatment: Tempering (to enhance strength), coating (such as AG anti-glare, improving visual comfort).

Features:

Personalized design: Detailed patterns that can achieve semi-transparent, fully transparent, and colorful effects, suitable for home appliances and architectural decoration styles. Anti-glare: Localized screen printing reduces strong light reflection (such as on oven glass panels, minimizing light interference).

Strong weather resistance: The ink bonds tightly to the glass, resistant to temperature differences (-40℃ to 200℃) and humidity.

Applications: Home appliance panels (control/display glass for refrigerators, microwaves, ovens), furniture glass (cabinet, coffee table panels).

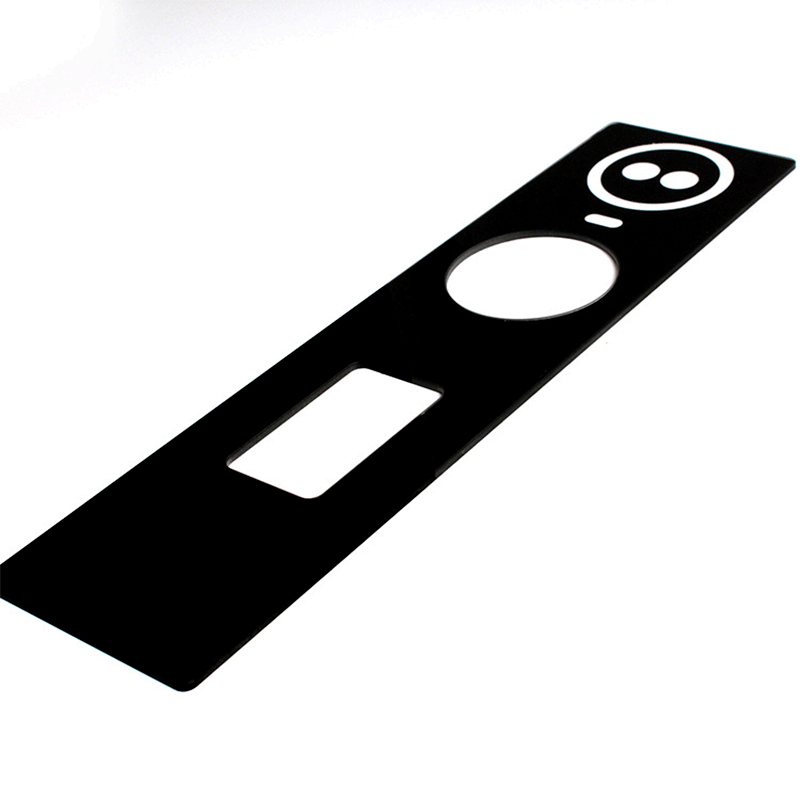

Definition: Safety tempered glass used in home appliances, serving as protection for panels, doors, or displays, balancing strength and aesthetics.

Process:Physical tempering: Glass is heated to about 700°C, then rapidly cooled with air to create surface compressive stress (3-22mm thickness is fully tempered, <3mm is semi-tempered/chemical tempered).

Deep processing:Edge grinding/beveling (smooth edges to prevent scratching), drilling (for appliance button holes), silk-screen printing (for labels/decorations), coating (AR high transparency, AG anti-glare to optimize display).

Features:

Safety protection: Impact-resistant (can withstand a 1.5kg steel ball dropping from 1m height), shatters into non-sharp fragments.

Aesthetic and durable: Transparent texture enhances appliance quality, scratch-resistant (can be cleaned directly with a steel wool ball, no surface scratches), oil stain-resistant (easy to clean).

Function compatibility:Oven glass: High temperature resistant (≤300°C), clear observation of internal cooking;

Refrigerator glass: Fog-resistant treatment (does not fog in low-temperature environments), showcases ingredients.

Applications:Kitchen appliances: Oven door glass, induction cooker touch panels, microwave doors.

Living appliances: Washing machine control glass, refrigerator display glass (with silk-screen decoration strips/brand logo), air purifier displays.

Small appliances: Operation panels of coffee machines and juicers (with silk-screen scales/icons)

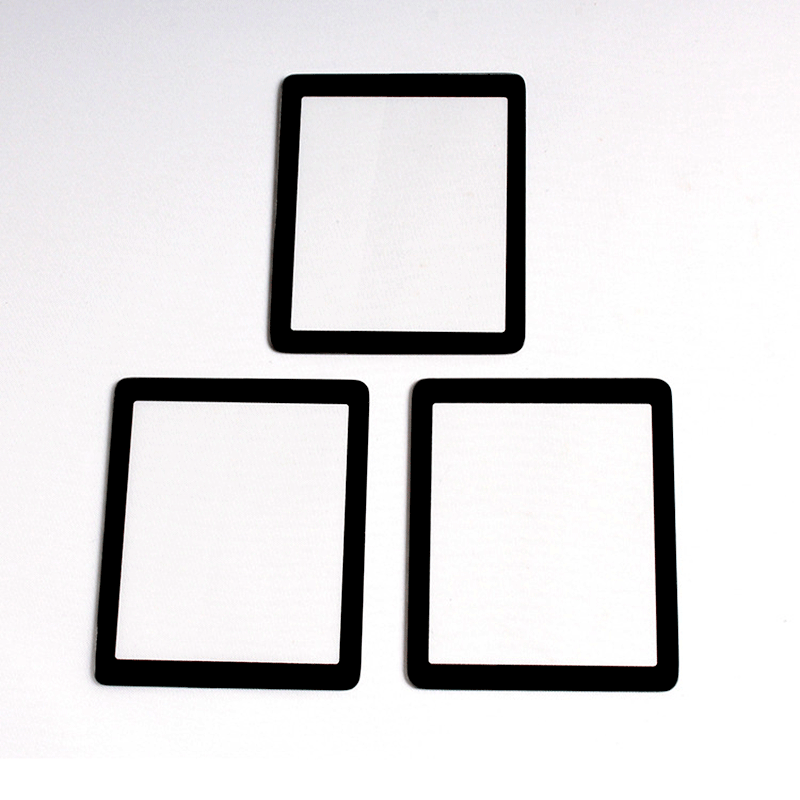

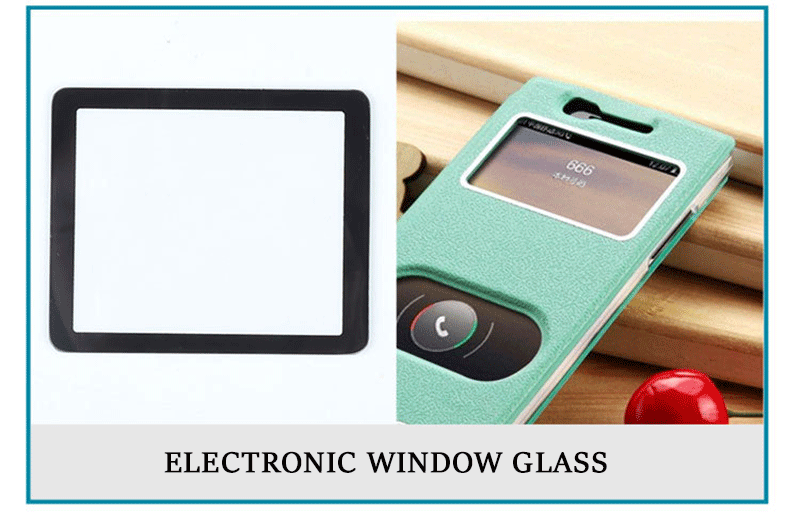

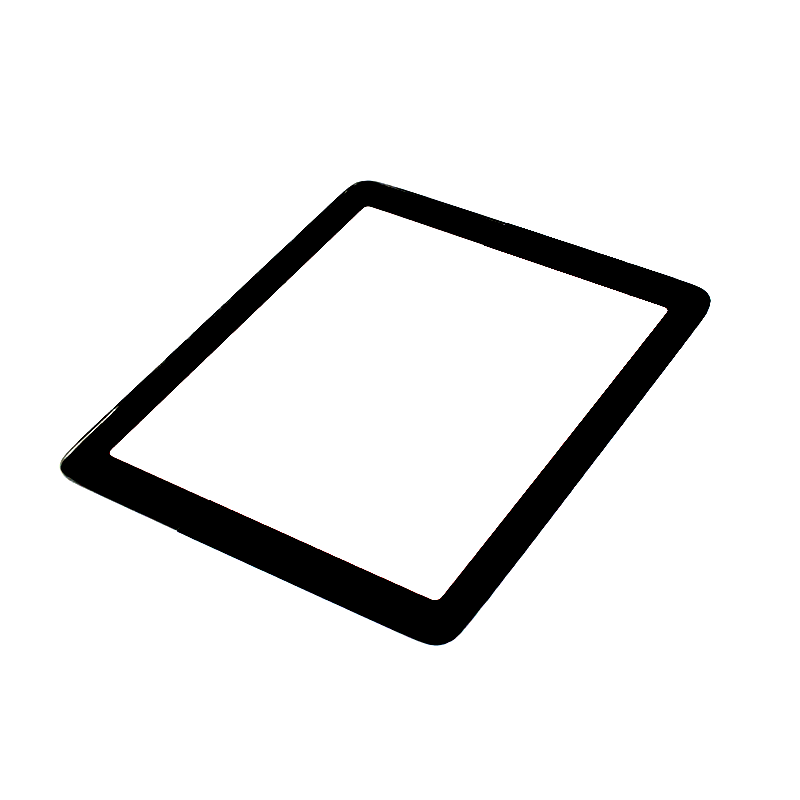

Definition: Glass that provides protection and display optimization for electronic displays (LCD, LED, touch screens), integrating features such as high definition, touch capability, and narrow bezels.

Craftsmanship: Ultra-thin processing: Thickness of 0.23-12mm (enhanced glass strength through chemical tempering).

High definition processing: AR coating: Light transmittance ≥95%, reduces reflections, and provides clearer images (suitable for outdoor displays);

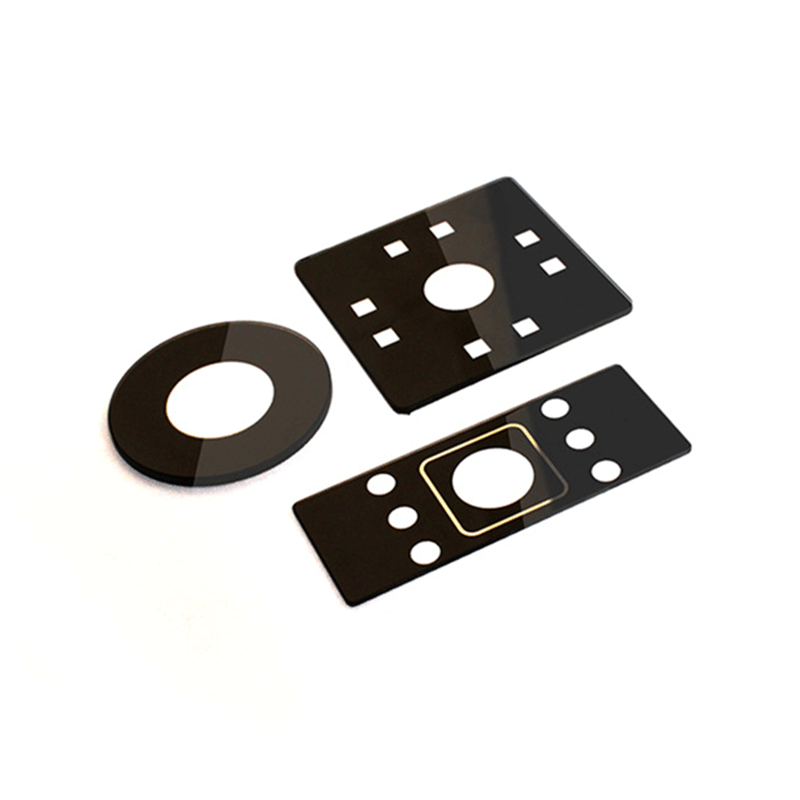

AG coating: Anti-glare (surface microstructure scatters light, reducing strong light interference, suitable for indoor displays).

Narrow bezel design: 6mm ultra-narrow edge tempered glass, compatible with modern displays, saving space and enhancing visual immersion. Silk screen printing and lamination: Edge silk screen printed black frame (hides internal circuitry of the display), bonded with the touch layer to form an integrated module.

Features:

High definition display: AR/AG coatings optimize light transmission and anti-glare, ensuring clear images (like 4K display glass, pixel-level silk screen precision). Integrated touch: Capacitive touch glass supports multi-touch operation, response time ≤10ms (like tablet and smart TV screens).

Lightweight and durable: Ultra-thin design (≤1mm), lightweight; tempered for drop resistance (smartphone screens do not shatter when dropped from 1.2m).

Applications:

Consumer electronics: Display protection glass for tablets and laptops (e.g., ultra-ceramic glass for iPhones, improved drop resistance).

Home appliance displays: Narrow bezel glass for smart TVs (AR coating, high color fidelity), built-in touch screens for refrigerators (silk printed operation interface).

Commercial equipment: Advertising machines, industrial displays (AG anti-glare glass, visible under strong light), self-service terminals (sensitive touch, wear-resistant).
