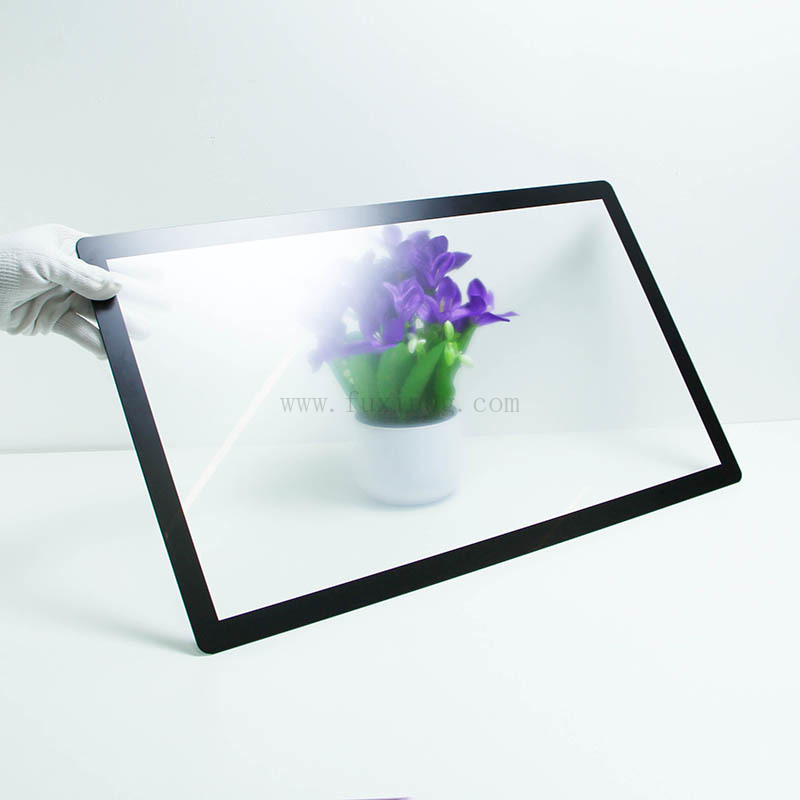

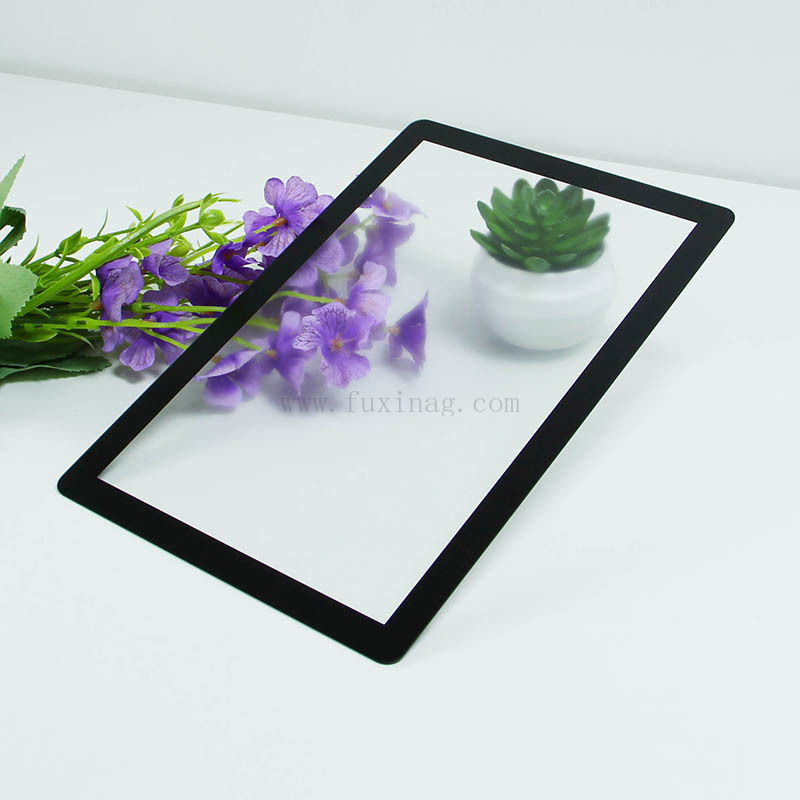

Premium Anti-Glare Touchscreen Cover Glass - Enhanced Clarity & Protection
What is Anti-Glare (AG) Cover Glass?

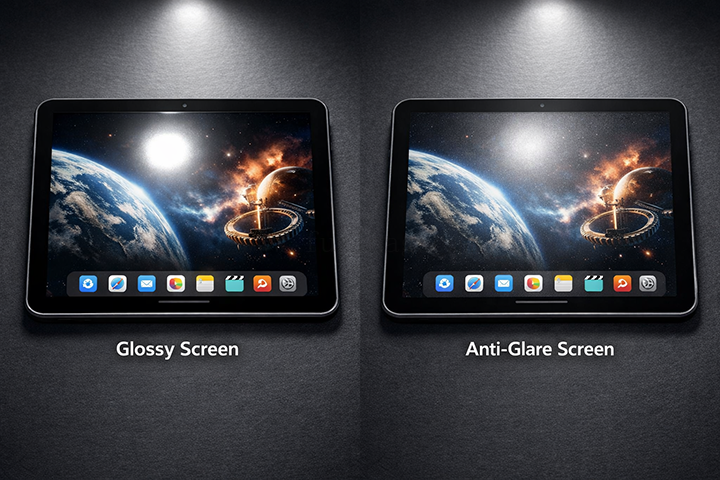

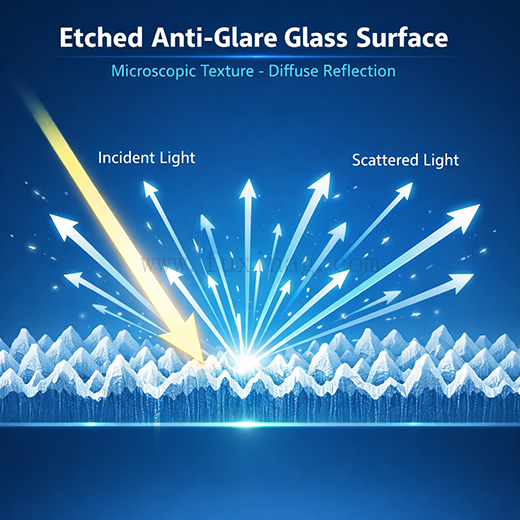

Anti-Glare (AG) glass is a specialized type of glass designed to diffuse reflected light, thereby reducing glare and improving the readability of electronic displays. Unlike standard glass that acts like a mirror, AG glass features a microscopically textured surface that scatters incoming light rather than reflecting it directly back to the viewer. This process significantly enhances the user's ability to see the display content clearly, even in brightly lit environments.
Key Benefits of Our Anti-Glare Cover Glass
- Superior Glare Reduction: Effectively minimizes reflections from sunlight, overhead lighting, and other ambient light sources, ensuring your display remains perfectly legible.
- Reduced Eye Strain: By eliminating harsh glare, our AG glass significantly reduces visual fatigue, making extended use of touchscreens more comfortable and productive.
- Enhanced Visual Clarity & Readability: Experience vibrant colors and sharp details without interference. The diffused light provides a softer, more uniform viewing experience.
- Maintained Touch Sensitivity: Engineered to preserve the native touch responsiveness of your touchscreen, ensuring smooth and accurate interactions.
- Robust Protection: Crafted from high-quality glass, it provides excellent scratch resistance and durability, safeguarding your valuable display from daily wear and tear.
- Wide Application Versatility: Ideal for a broad range of applications requiring optimal display performance in challenging lighting conditions.
Technical Specifications: Precision Engineered for Performance
| Parameter |
Description
|
Typical Range
|
Measurement Unit
|
| Gloss Level |
Measures the specular reflection of light from the surface. Lower gloss indicates higher anti-glare effectiveness.
|
10-110
|
GU (Gloss Unit)
|
| Haze | Quantifies the amount of scattered light, affecting clarity. Lower haze is preferred for sharper images. | 1-10 | % |
| Light Transmittance | The percentage of light that passes through the glass. Higher values ensure brighter displays. | >90 | % |
| Surface Roughness (Ra) | Average roughness of the surface profile. Directly impacts glare diffusion. | 0.1-1.0 | µm |
| Hardness | Resistance to scratching and abrasion. | 6-7 |
Mohs Scale
|
Advanced Manufacturing: Chemical Etching for Superior Performance
- Superior Uniformity: Consistent anti-glare effect across the entire surface.
- Enhanced Durability: The etched surface is an integral part of the glass, making it highly resistant to wear, chemicals, and environmental factors.
- Optimal Optical Performance: Achieves excellent balance between glare reduction, clarity, and light transmittance.
- Industrial Automation: Control panels, HMI (Human-Machine Interface) displays, and rugged tablets where clear visibility is critical for operational efficiency and safety.
- Medical Devices: Diagnostic equipment, patient monitoring systems, and surgical displays requiring precise visual information without distracting reflections.
- Automotive Displays: Infotainment systems, digital dashboards, and navigation screens, ensuring driver visibility and safety under varying light conditions.
- Outdoor Kiosks & Public Displays: ATMs, ticketing machines, and information kiosks that need to be readable in direct sunlight.
- Consumer Electronics: Laptops, tablets, and smartphones for improved outdoor usability and reduced eye strain.
Why Choose Our Anti-Glare Cover Glass?
- Customization: Tailored solutions to meet your specific project dimensions, optical properties, and environmental requirements.
- Quality Assurance: Rigorous testing ensures every piece of glass meets the highest standards of durability and optical clarity.
- Expert Support: Our team of specialists is ready to assist you from design to implementation, ensuring seamless integration.
| Process Name | Production capacity （55 inch） | Remark |
| Cutting | 10,000pcs/day | |
| Edging and Grinding | 3,000pcs/day | The production capacity calculated based on 55-inch |
|
Silk Screen Printing |
3,000pcs/day | The production capacity will change as the number of screen printing processes increases or decreases (the screen printing equipment is being expanded) |
|
Tempering |
2,800pcs/day | |
|
AG Spray Coating |
1,500pcs/day | |
|
Packaging |
3,500pcs/day |
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
