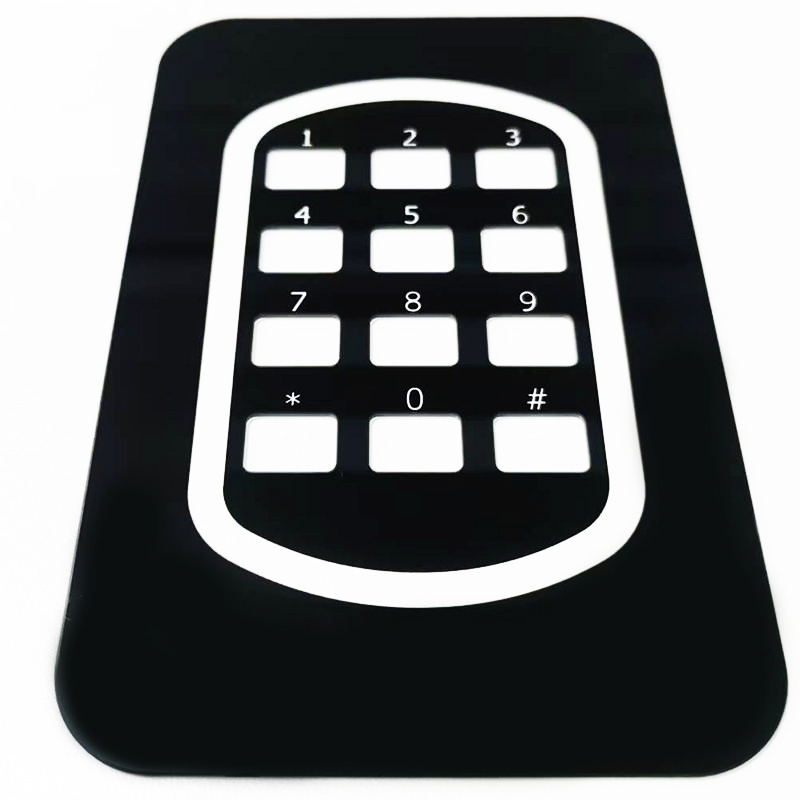

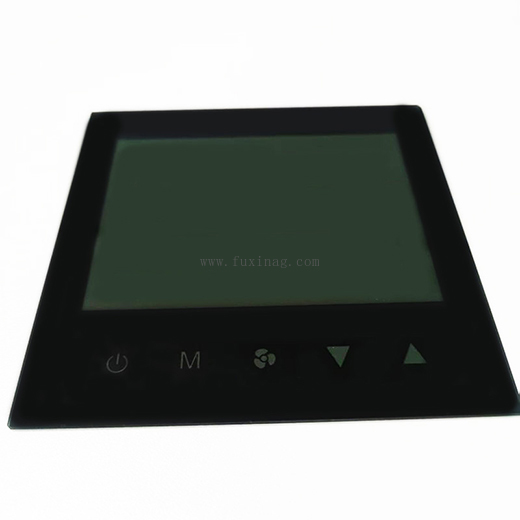

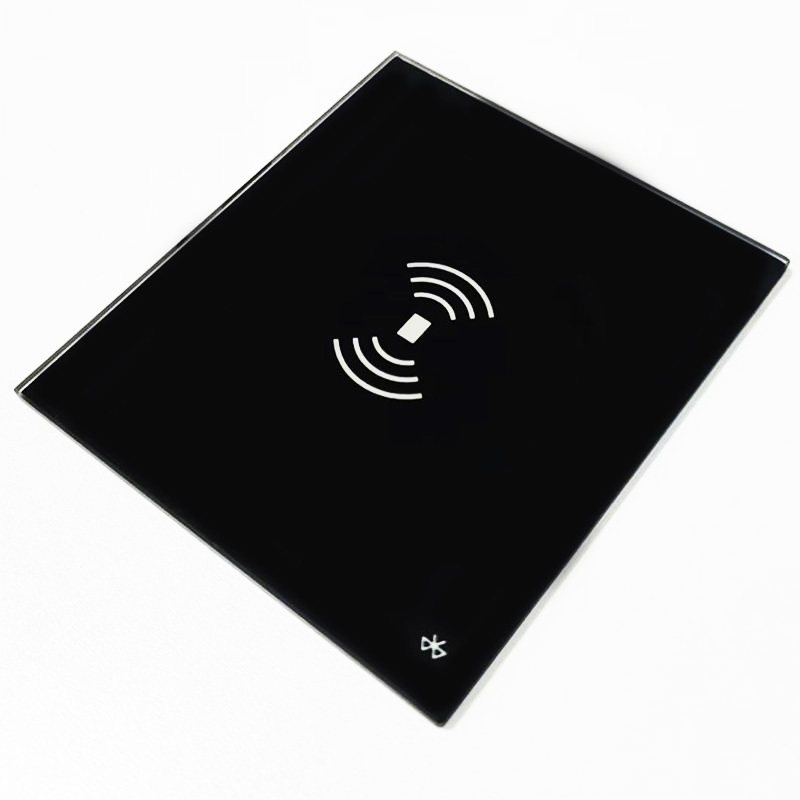

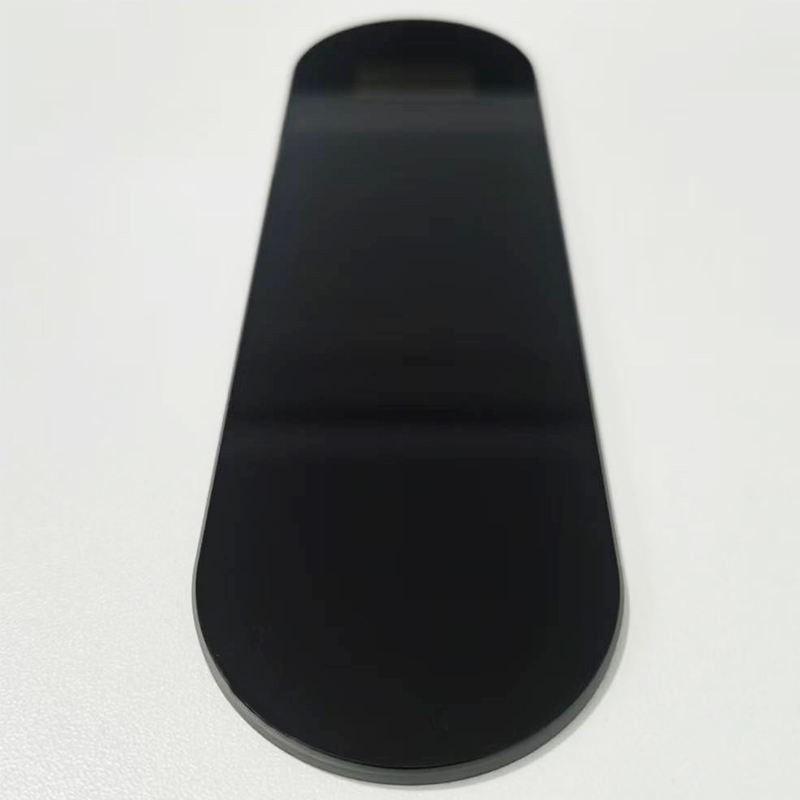

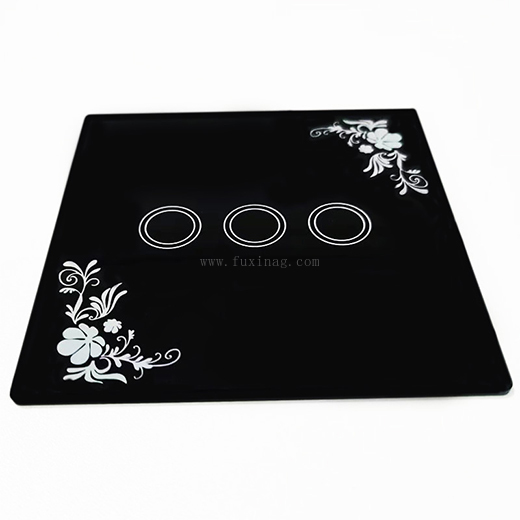

Heat-Resistant Screen-Printed Black Tempered Touch Panel Glass Ultra-Clear Glass
Mechanical Properties: Ultra-high pressure resistance and impact resistance, suitable for demanding operating environments
1. High-strength shatter resistance
-
After high-temperature quenching at temperatures exceeding 600°C, a uniform compressive stress layer forms within the glass (surface compressive stress ≥ 90 MPa, in compliance with GB/T 9963-2016). Its bending strength is 3-5 times that of ordinary annealed glass (≥ 150 MPa), while its impact resistance is 5-10 times that of standard glass.
-
Real-world applications: Even when subjected to drops or impacts (such as a phone cover falling from a height of 1.5 meters onto concrete), it remains resistant to cracking. In automotive settings, it withstands vibrations and minor collisions during operation, reducing the risk of shattering.
2. Safe fragmentation characteristics (shotgun effect)
- After crushing, it forms small particles with blunt edges and no sharp corners (particle size ≤4mm), preventing sharp fragments from causing cuts to the human body. It complies with safety certification requirements such as the EU CE and US ANSI Z97.1 standards.
- Core Advantage: Compared to ordinary glass, which shatters into sharp, elongated shards, screen-printed tempered glass significantly enhances safety in applications such as electronic devices, public facilities, and vehicles, thereby reducing the risk of injury in accidents.
3. Resistance to bending and fatigue
- After tempering, the glass maintains an elastic modulus of 70-75 GPa, offering excellent resistance to bending deformation. This enables adaptation to complex designs such as curved displays and arched automotive panels (with a minimum bending radius of 50mm, subject to glass thickness and material).
- During long-term use, it withstands stress impacts from temperature cycling and humidity changes, resists fatigue cracking, and extends service life by over 30% compared to ordinary glass.
| Product Name | Heat-Resistant Screen-Printed Black Tempered Touch Panel Glass Ultra-Clear Glass |
| Material | Clear float glass, ultra-clear float glass (low-iron glass), low-emissivity glass, frosted glass (etched glass), sandblasted glass, bronze glass, gray glass, patterned glass, borosilicate glass, ceramic glass, coated glass, anti-reflective (AR) glass, anti-glare (AG) glass, anti-fingerprint (AF) glass, ITO glass, etc. |
| Dimensions | Custom Sizes |

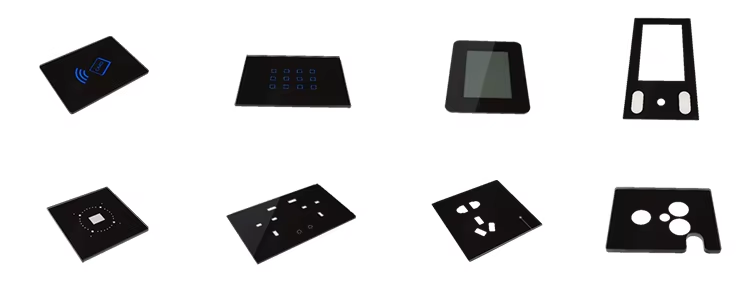

| Shape |
Rectangular, circular, elliptical, or other special shapes
|

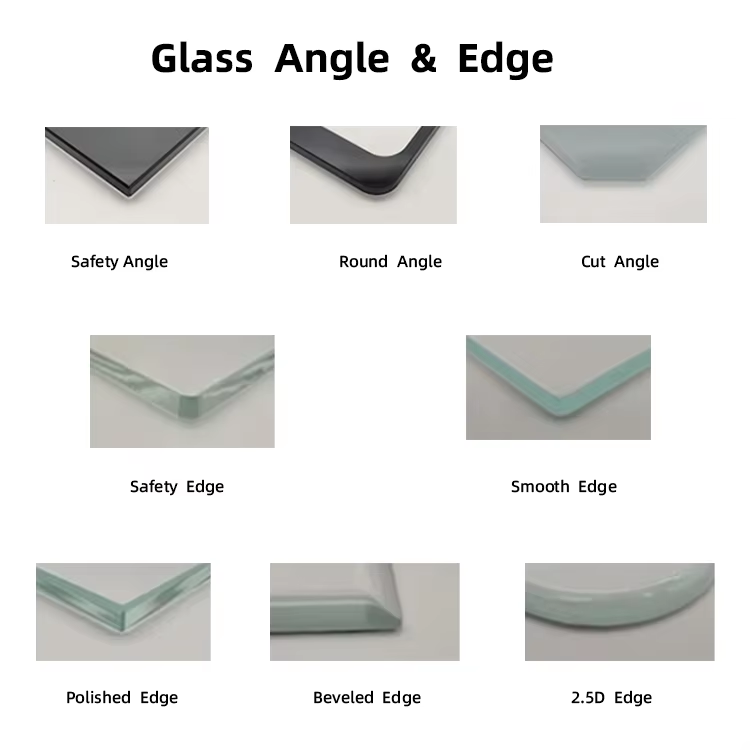

| Edge |
Straight, rounded, beveled, stepped;
|
| Production Process |
Edge trimming and polishing - CNC machining - Cleaning - Tempering - Printing - Cleaning - Inspection - Packaging
|
| Silk Screen |
Black, white, gray, gold, brown, red, yellow, sandblasted effect, etc. Screen printing (colors compliant with RoHS requirements)
|
| Coating | Anti-glare/Anti-reflective/Anti-fingerprint/Anti-scratch |
| Tempered | EN60598, EN12150, etc. (High safety standards; if tempered glass breaks, it may shatter into small fragments that are harmless to humans) |
Adaptability and Customization
Multi-specification + Multi-scenario compatibility to meet diverse needs:
-
Supports full-size customization from small dimensions (e.g., smartwatch cover glass, 10mm × 15mm) to large dimensions (e.g., photovoltaic module backsheets, 1600mm × 1000mm), with thicknesses ranging from 0.33mm to 12mm (typically 0.55mm to 2.0mm for electronic devices, and 3mm to 12mm for architectural/industrial applications).
-
Capable of accommodating various cutting requirements (circular, elliptical, irregular polygons), chamfering (R radius ≥ 0.5mm), and drilling (hole diameter ≥ 1mm), meeting the structural design needs of diverse products.
-
The product complies with environmental standards such as RoHS and REACH. The ink contains no harmful substances like lead, mercury, or cadmium. The glass substrate is recyclable, meeting environmental access requirements in regions including the EU, the United States, and Southeast Asia.
-
Certain products are UL-certified (flame retardant rating V0) and ISO 9001 quality system certified, meeting the supply chain compliance requirements of high-end customers.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
