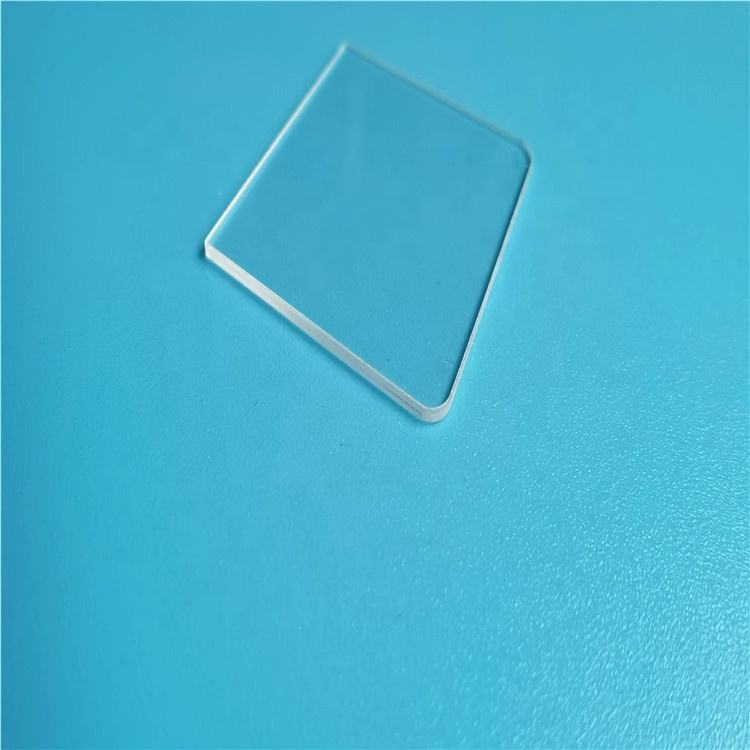

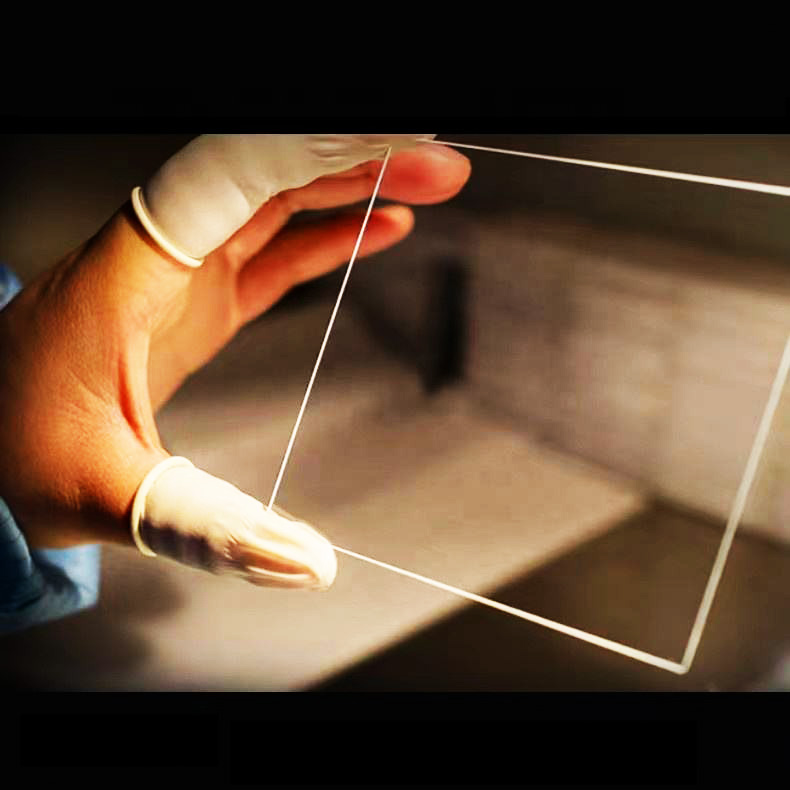

Ultra-Thin Tempered Glass Panels - Custom Sizes 0.5mm to 1mm
Customizable Specifications
| Product Name | Ultra-Thin Tempered Glass Panels - Custom Sizes 0.5mm to 1mm |
| Size | 0.5mm 、0.7mm、1mm |
| Material | Soda-lime Glass, Aluminosilicate Glass, Low iron Glass, Borosilicate Glass |

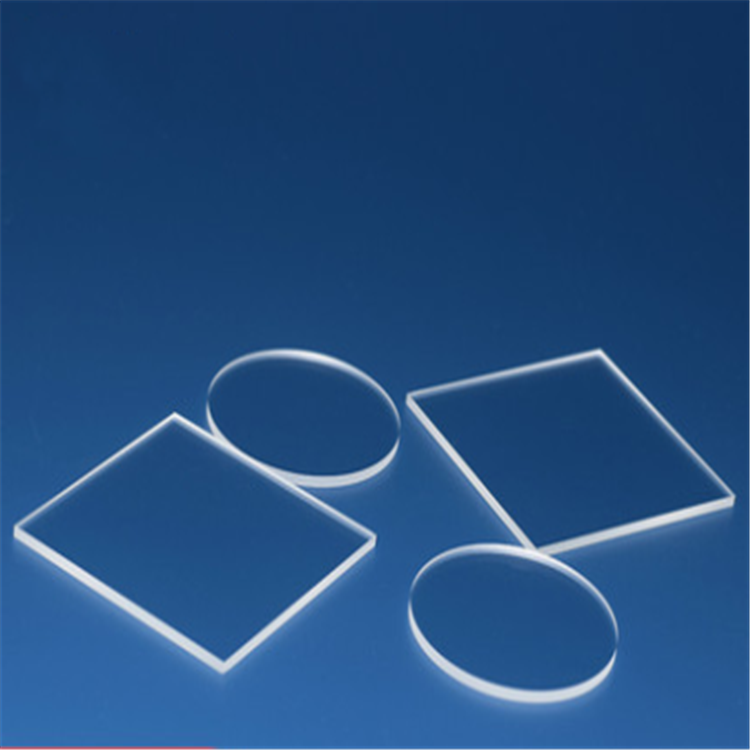

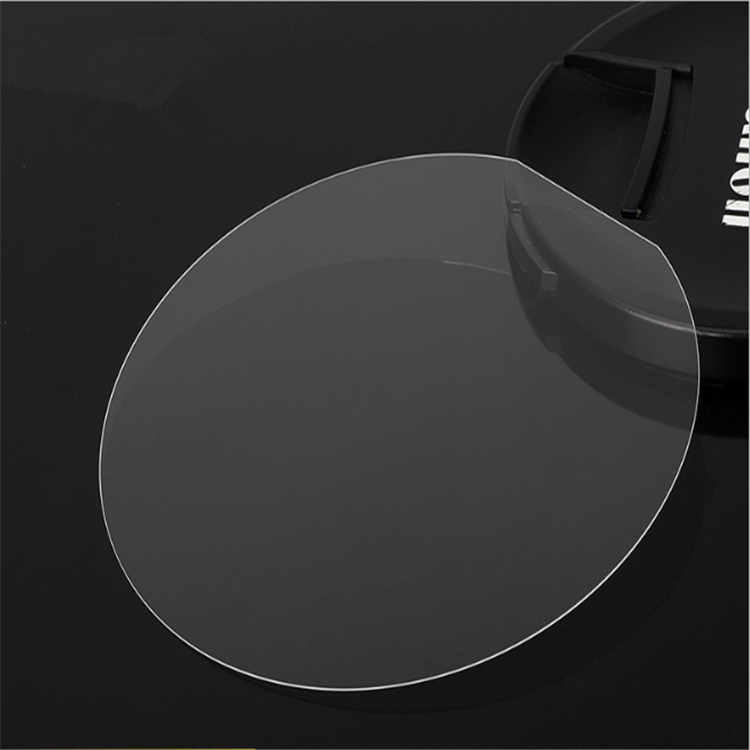

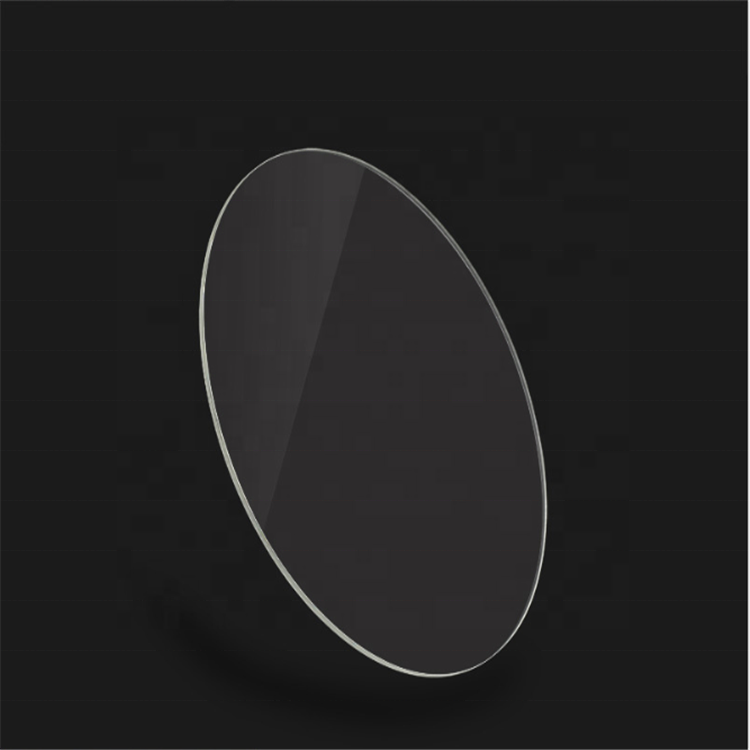

| Shape | Regular / Irregular Shape Customized |
| Color | Customized |
| Edge Treatment | Round Edge / Pencil Edge / Straight Edge/ Beveled Edge / Stepped Edge / Customized Edge |
| Silk Printing | Standard Priting / High Temperature Printing |
| Coating | AG/AR/AF/AS |
| Process | Cut-Edge-Grinding-Cleaning-Inpection-Tempered-Cleaning-Printing-Oven dry-Inspection-Cleaning-Inspection-Packing |

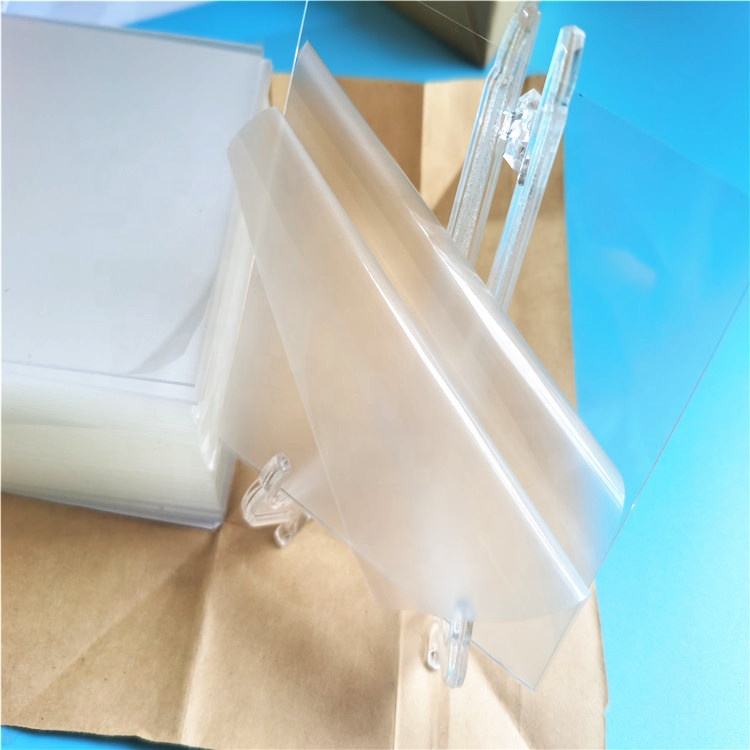

| Package | Protective film + Kraft paper + Plywood crate |
| Shipping | Commercial Express, Sea Shipping |
| HS Code | 7007190000 |
Optical Performance: High light transmission with low distortion, suitable for display requirements.
The optical properties of ultra-thin tempered glass represent one of its core competitive advantages, making it particularly suitable for use as display cover glass and sensor windows.
-
High Light Transmittance
The substrate utilizes ultra-clear high-aluminum silica glass or Corning Gorilla Glass, achieving native light transmittance of 91-92%. When combined with an AR anti-reflective coating, transmittance can be enhanced to 95-98% with no noticeable color shift.
Advantages: Compared to standard soda-lime glass (85-88% light transmittance), it significantly enhances display brightness and clarity while minimizing light loss in screen applications. -
Low optical distortion
The chemical tempering process avoids high-temperature physical deformation, ensuring glass flatness tolerance ≤0.01mm/100mm. Light transmission exhibits no refractive distortion or rippling, meeting imaging requirements for high-precision optical sensors (e.g., fingerprint recognition and facial recognition lenses). -
Customizable Optical Functions
Supports layered optical coatings including AG anti-glare and AF anti-fingerprint:
AG Treatment: Surface haze controlled at 5-15% to eliminate mirror reflections, suitable for high-brightness environments like outdoor displays and automotive HUDs;
AF Treatment: Surface water contact angle ≥110°, oil contact angle ≥95°, provides fingerprint resistance and easy cleaning while enhancing touch responsiveness.
Process adaptability: Suitable for precision machining, supports multifunctional integration
The material properties of ultra-thin tempered glass enable it to meet the complex processing demands of precision electronic devices, making it a core advantage for customized products:
-
High-Precision Custom Sizing

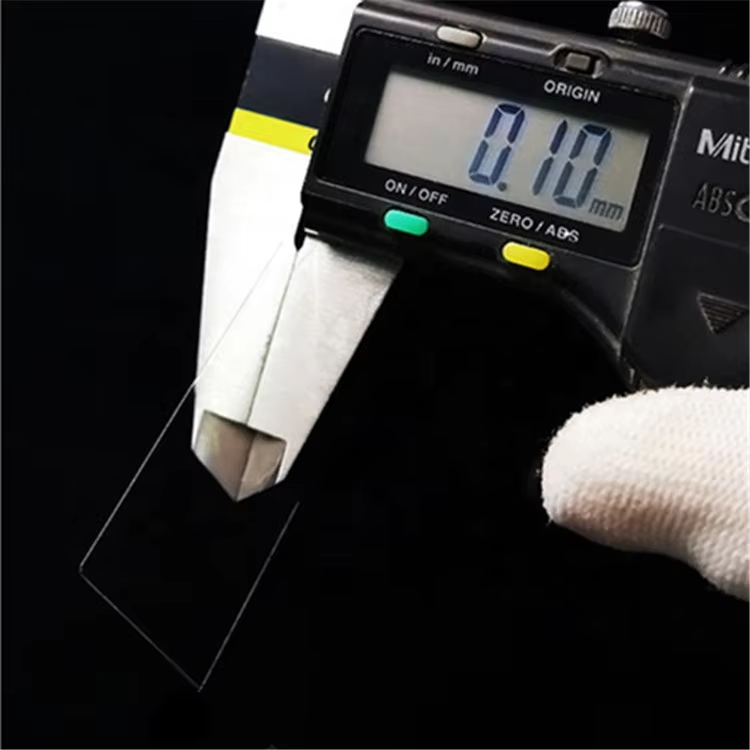

Supports laser cutting and irregular shape processing with dimensional tolerances controlled within ±0.01mm and thickness tolerances ≤±0.005mm. Capable of micro-aperture processing (aperture ≥0.3mm) and narrow bezel cutting (bezel width ≥0.5mm), meeting miniaturization requirements for smartwatch dials and micro-sensor windows. -
Strong compatibility with screen printing processes
High surface flatness enables direct high-precision screen printing (mesh count ≥400), with pattern accuracy of ±0.02mm and edges free of jaggedness or ink bleed; Compatible with UV-curable inks or low-temperature sintering inks. Screen-printed layer adhesion meets GB/T 9286-1998 Grade 1 (no peeling in cross-hatch adhesion test). Suitable for printing logos, light-shielding borders, conductive circuits, etc. -
Multi-Function Integration
Can be combined with processes such as coating and etching to achieve customized “tempered glass + screen printing + AR + AF” solutions. Examples include:

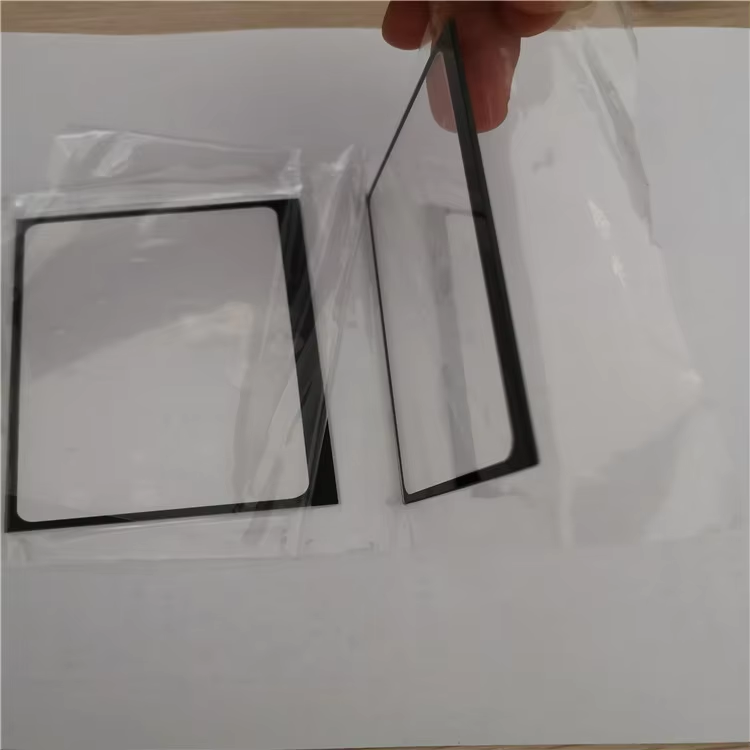

Smart wearable device covers: Ultra-thin tempered glass + AF anti-fingerprint coating + screen-printed light-blocking borders;
Automotive sensor windows: Ultra-thin tempered glass + AR anti-reflective coating + AG anti-glare coating, balancing light transmission and resistance to strong light interference.
Edge & Angle

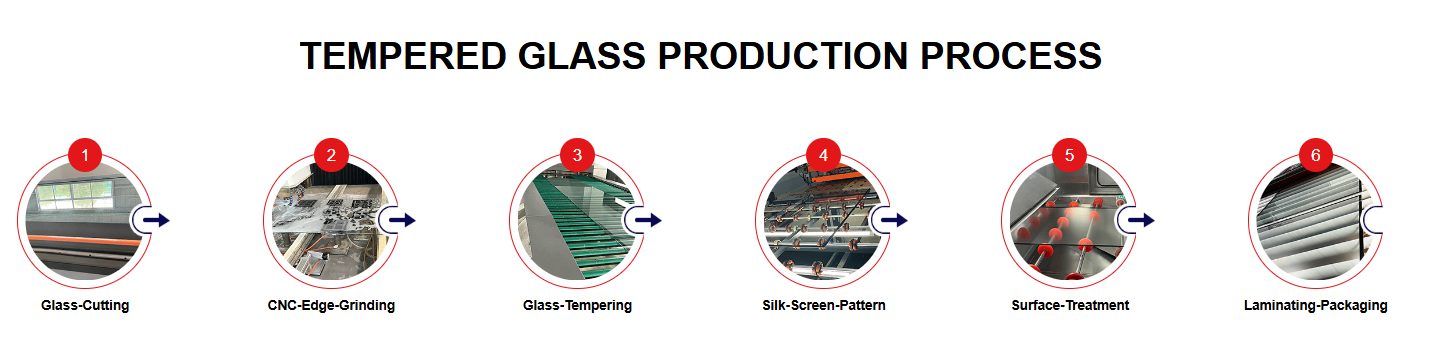

Production Process
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
