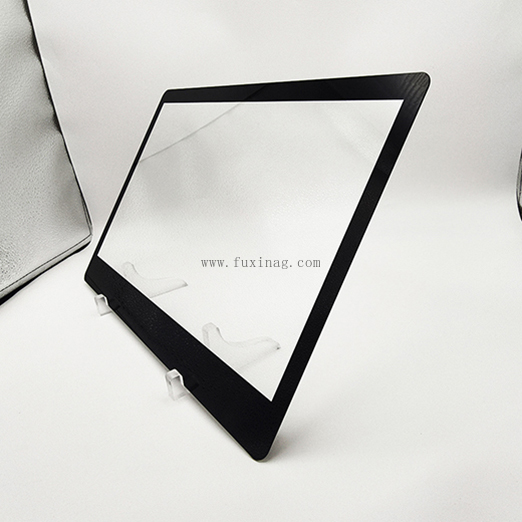

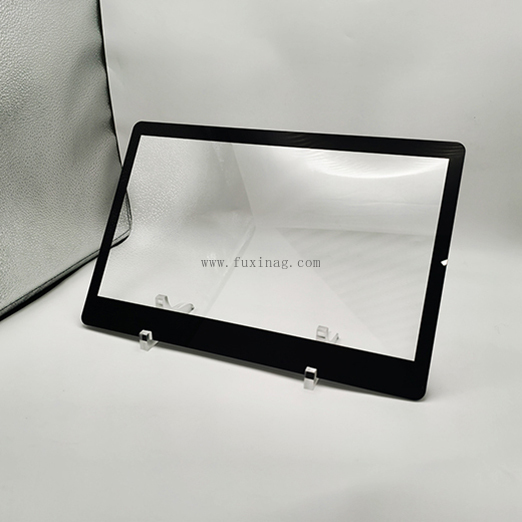

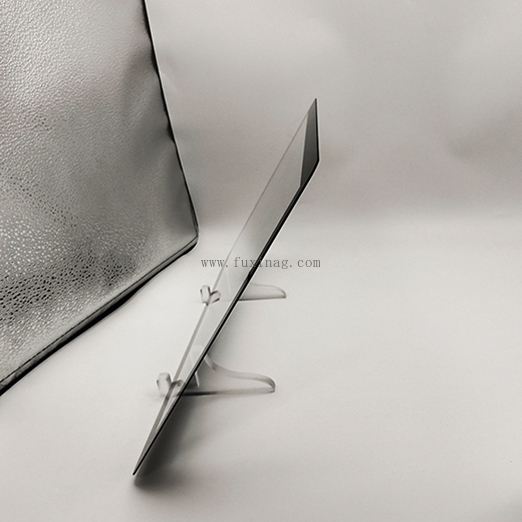

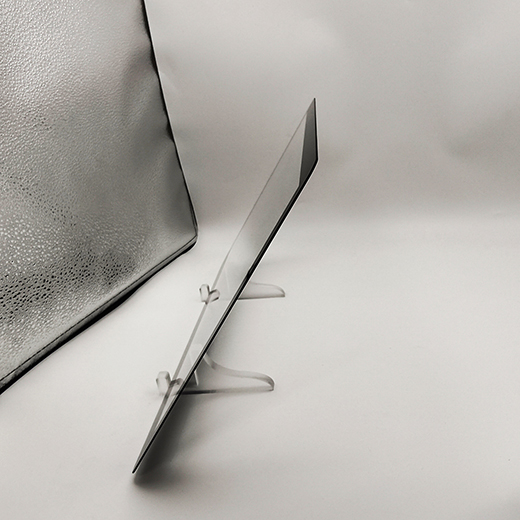

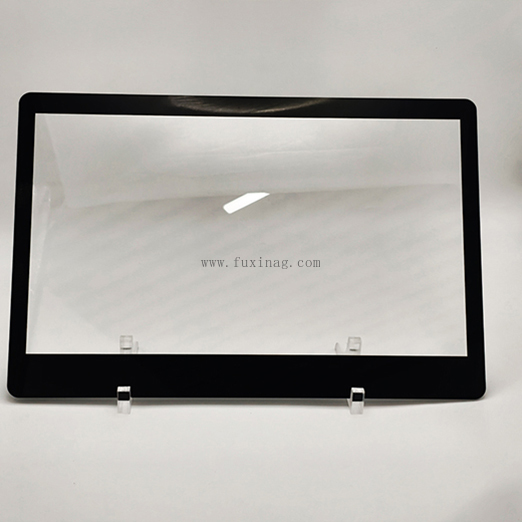

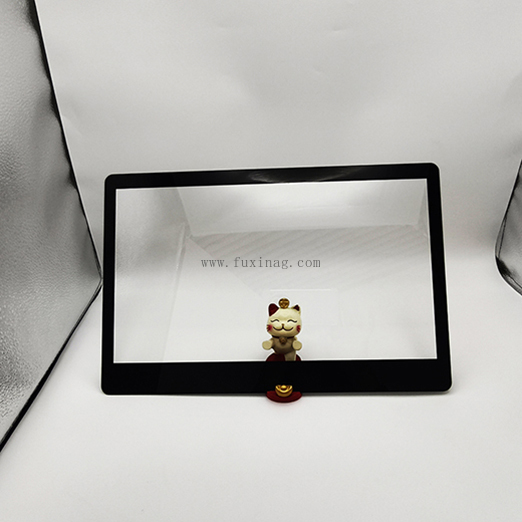

Premium 1.1mm-2mm Ultra thin Toughened /Tempered Ar /AG Glass- Optimized Touch Screen Panels
Product Description
| Name | Premium 1.1mm-2mm Ultra thin Toughened /Tempered Ar /AG Glass- Optimized Touch Screen Panels |
| Glass Material | Soda lime glass/Aluminosilicate glass/Low Iron glass/Borosilicate glass |
| Size | Size can be customized |
| Thickness | 0.5mm-12mm |
| Thempered | Thermal Tempered/Chemical Tempered |
| Edge treatment | CNC grind, polished, chamfered |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen printing/High Temperature Silkscreen printing |
| Coating | AG/AR/AF/AM/ITO |
| Production process | Cut-Edge Polish-CNC-Clean-Tempered-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/Product Typenti-fire/easy to clean/high-pressure scratch resistant |

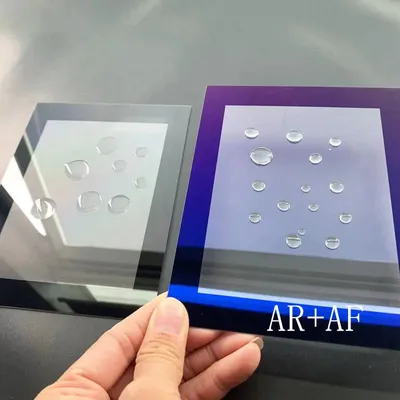

AR (Anti-Reflective) cover glass features a specialized optical coating applied to one or both surfaces. Its primary purpose is to dramatically reduce surface reflections, minimize glare, and increase light transmission. This results in superior optical clarity, enhanced color contrast, and reduced eye strain for the viewer. It is a critical component for displays used in bright environments.
Typical Technical Parameters
-
Reflectance: <1.5% (per surface, at 550nm wavelength), significantly lower than standard glass (~4%).
-
Transmittance: >94% (visible light spectrum), higher than uncoated glass (~92%).
-
Coating Type: Multi-layer, thin-film dielectric coating.
-
Surface Hardness: ≥9H pencil hardness (tempered substrate).
-
Durability: Resistant to common chemicals and abrasion; coating performance is permanent under normal use.
-
Compatibility: Can be combined with tempering and other functional coatings (like AF, AG).
Benefits for Display Performance:
-
Enhanced Visibility: By suppressing reflections, it ensures the display content remains clear and vivid even under direct sunlight or bright indoor lighting.
-
Improved Contrast & Color: Higher light transmission and lower reflection allow for deeper blacks, more saturated colors, and superior overall image quality.
-
Reduced Eye Fatigue: Minimizing glare and reflections creates a more comfortable viewing experience for prolonged use.
-
Power Efficiency: For devices like smartphones and tablets, improved transmittance can allow the screen to maintain visibility at a lower brightness setting, potentially conserving battery life.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
