New Design 0.5~2mm Tempered Glass with Anti Glare Coated Glass for Display Application High Transmittance Glass and Silk Screen Printing
Customizable Specifications
| Product Name | New Design 0.5~2mm Tempered Glass with Anti Glare Coated Glass for Display Application High Transmittance Glass and Silk Screen Printing |
| Size | 7-100inch |
| Thickness | 0.28 ~ 12 mm |
| Hardness | >7h |
| Appearance | Flat Tempered |
| Material | Soda-lime Glass,Aluminosilicote Glass,Low lron Glass,Borosilicote Glass |
| Shape | Regular / Irregular Shape Customized |
| Color | Customized |
| Edge Treatment | Round Edge / Pencil Edge / Straight Edge/ Beveled Edge / Stepped Edge / Customized Edge |
| Tempered | Support (Thermal Tempered / Chemically tempered ) |
| Silk Printing | Standard Priting / High Temperature Printing |
| Coating | AG/AR/AF/AM |
| Process | Cut-Edge-Grinding-Cleaning-Inpection-Tempered-Cleaning-Printing-Oven dry-Inspection-Cleaning-Inspection-Packing |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Certificate | RoHS, Reach,CE |
| Usage | Home Appliance, Electronics & Instruments |
| Production Capacity | 300000 Pieces/ month |
| Package | Protective film + Kraft paper + Plywood crate |
| Shipping | Commercial Express, Sea Shipping |
| HS Code | 7007190000 |

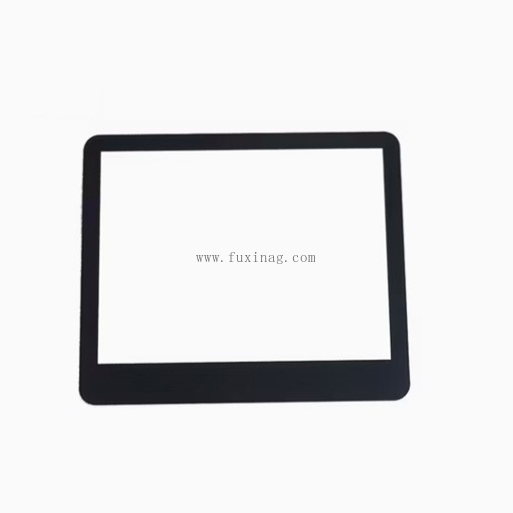

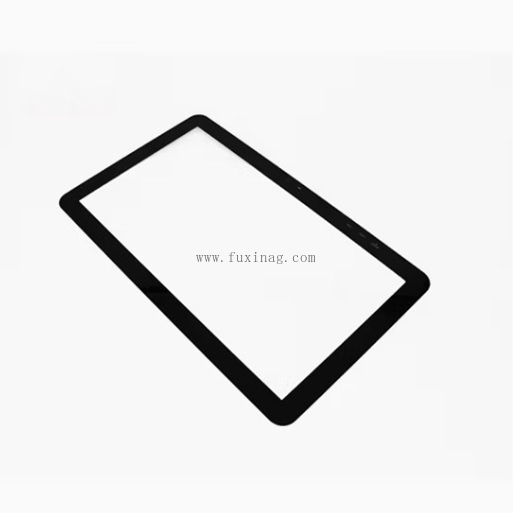

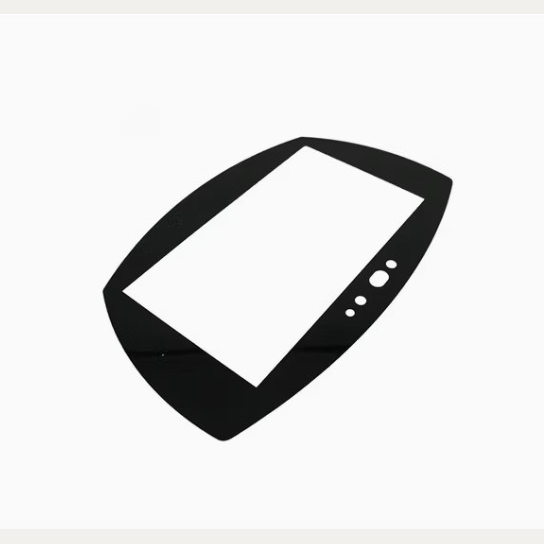

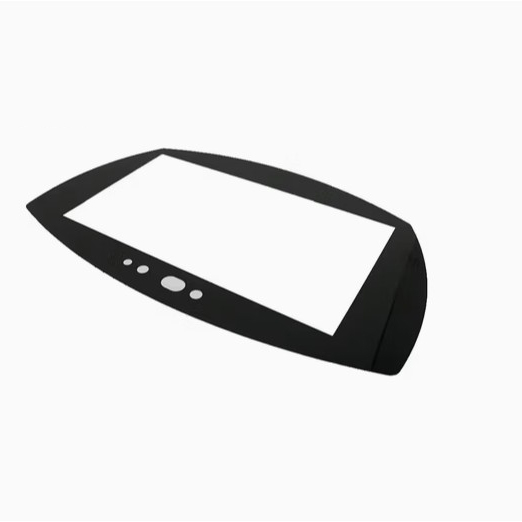

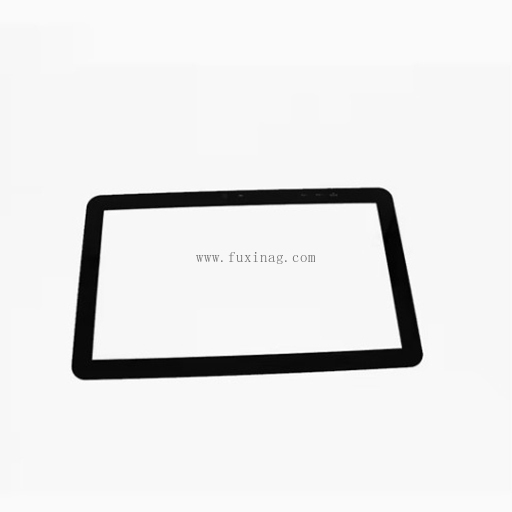

Product Picture
Edge & Angle
What's safety glass?
How does tempered glass achieve its strength? The secret lies in its “memory.” Through controlled heating and rapid cooling, its surface is “locked” into a state of compression, with the core under tension. This balance makes it exceptionally resistant to impact and bending. Most importantly, if it does break, this internal stress causes it to crumble into small, relatively harmless pieces, ensuring safety.
Boiling Water Test: Ensuring Unmatched Durability for Your AG Glass
We rigorously subject our anti-glare (AG) glass to standardized boiling water tests to validate its extreme environmental resilience. This accelerated aging process involves immersing the coated glass in boiling water (typically 100°C) for a sustained period, simulating years of exposure to high humidity and temperature fluctuations.
This stringent test verifies the exceptional adhesion and chemical stability of our AG coating. A glass that passes this test guarantees that the anti-glare properties will not degrade, blister, or peel over time, even in demanding conditions. It is a testament to the long-term optical clarity, touch sensitivity, and reliable performance of our cover glass solutions for industrial HMI, outdoor kiosks, and medical equipment.
Industry-Standard Abrasion Resistance: Steel Wool Test
To ensure our anti-glare (AG) glass maintains its flawless appearance and function under demanding use, we subject it to rigorous steel wool abrasion testing. This test involves applying significant pressure and repeatedly scrubbing the coated surface with standardized #0000 grade steel wool for hundreds of cycles.
This aggressive procedure directly simulates years of potential cleaning, accidental scratches, and friction from everyday operation in industrial environments. Our AG coating is engineered to pass this test with outstanding results, demonstrating exceptional resistance to scratches, haze, and wear. The surface integrity and matte finish remain intact, guaranteeing that the anti-glare performance and visual clarity will not degrade over the product's lifespan.
The Key Technical Parameters for Anti-Glare (AG) Cover Glass
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
