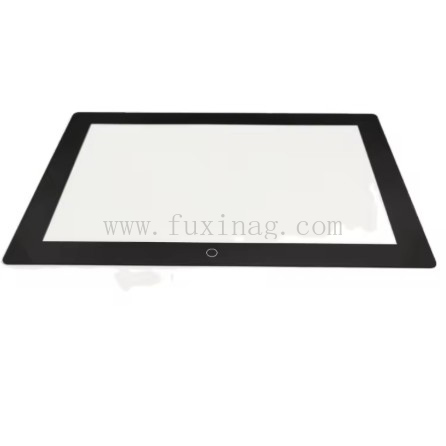

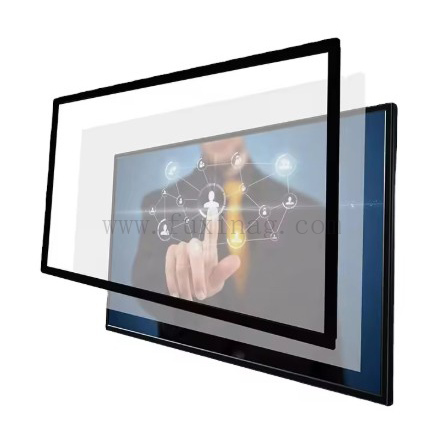

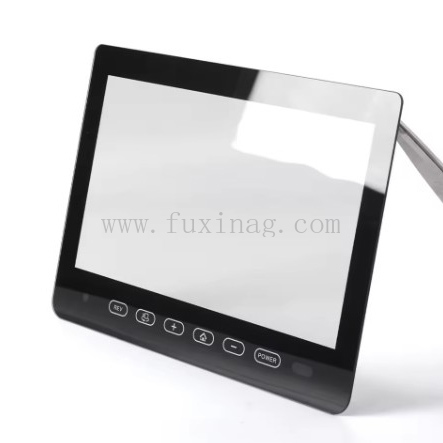

New Design 0.33mm-4mm Tempered AG Coating Cover Glass for Smart Interacitve TouchScreen
New Design 0.33mm-4mm Tempered AG Coating Cover Glass for Smart Interactive TouchScreen
Premium Tempered AG Coated Cover Glass | 0.33mm-4mm | Anti-Glare for Smart Touchscreens
Key Features
-
Multiple Thickness Options: Choose from 0.4mm, 0.7mm, 1.0mm, 1.5mm, or 2.0mm to match your design requirements.
-
Advanced Surface Coatings:
-
AG (Anti‑Glare): Diffuses reflected light to reduce eye strain and improve readability in bright environments.
-
AF (Anti‑Fingerprint): Oleophobic coating repels oils and smudges, making the surface easy to clean and maintain.
-
AR (Anti‑Reflective): Minimizes surface reflections, increasing light transmission and contrast for superior display clarity.
-
-
High Durability: Chemically strengthened through a tempering process, achieving surface hardness up to 9H and excellent impact resistance.
-
Precision Customization: Available in any shape, size, and with edge processing (e.g., CNC ground edges, polished edges) to fit your specific panel design.
-
Excellent Touch Sensitivity: Maintains full capacitive touch functionality with smooth, responsive interaction.
-
Optical Clarity: High light transmittance (>92% for uncoated, >95% with AR coating) ensures vibrant display quality.
|
Material
|
High-quality soda-lime float glass
|
|
Thickness
|
0.4mm, 0.7mm, 1.0mm, 1.5mm, 2.0mm (±0.05mm tolerance)
|
|
Hardness
|
9H pencil hardness
|
|
Viewing Angles
|
>160° horizontal / >140° vertical
|
|
Surface Treatment
|
AG (Anti‑Glare), AF (Anti‑Fingerprint), AR (Anti‑Reflective), or combination
|
|
Gloss Level (60°)
|
60 - 130 GU (Typical ranges: 80±10, 100±10)
|
|
Haze
|
Typically ≤10% (Common range: 1%-9%)
|
|
Tempering
|
Fully tempered (safety glass standard)
|
|
Light Transmittance
|
≥ 92% (uncoated); ≥ 95% (with AR coating)
|
|
Operating Temperature
|
-20°C to +80°C
|
|
Glare Reduction
|
Up to 80% (depending on etching level)
|
|
Size
|
Fully customized (up to 32–86 inches)
|
|
Edge Processing
|
CNC grinding, chamfered, or polished
|
|
Customization
|
Size, shape, hole patterns, silk‑screen printing, logo printing
|
Durability Parameters:
-
Steel Wool Test: Withstands 4000-6000 cycles with #0000 steel wool under load, ensuring coating longevity .
-
Impact Resistance: Passes rigorous impact tests (e.g., 540g steel ball drop from 80cm for 4mm thickness) .
-
Environmental Resistance: Successfully passes boiling water tests, proving resistance to peeling, blistering, and degradation under high humidity and temperature fluctuations .
Our AG/AF/AR coated tempered glass is trusted by manufacturers across industries:
-
Industrial Touch Panels: HMI interfaces, factory automation, and control systems.
-
Medical Devices: Patient monitors, diagnostic equipment, and handheld terminals.
-
Consumer Electronics: Smart home displays, tablets, GPS units, and wearables.
-
Retail & Kiosks: Point‑of‑sale systems, interactive kiosks, and vending machines.
-
Automotive Displays: Infotainment systems and dashboard touchscreens.
-
Outdoor Equipment: Terminals and devices exposed to bright sunlight (AG/AR coatings essential).
Customization Options
We understand that every project has unique requirements. That's why we offer extensive customization:
-
Dimensions & Shapes: From simple rectangles to complex cut‑outs with holes or notches.
-
Printing: Silk‑screen printing on the border for decorative frames or functional masking.
-
Coating Combinations: Need AG + AF? AR + AF? We can apply multiple layers to achieve the desired performance.
-
Thickness Tolerance: Tight tolerances available for precision assemblies.
-
Packaging: Custom packaging to protect glass during transit and handling.
-
Manufacturing Excellence: As a leading factory with over a decade of experience, we operate 21,000+ square meters of facility with fully automated production lines, ensuring a monthly capacity of 300,000 pieces. Our commitment to quality is backed by ISO, RoHS, and CE certifications .
-
End-to-End Customization: From initial design and mold making (samples in ~7 days) to mass production, our engineering team works with you to develop the perfect solution, including complex hole patterns, multi-layer silk-screening, and combined optical coatings .
-
Rigorous Quality Assurance: Every batch undergoes stringent testing, including abrasion resistance (steel wool), environmental stability (boiling water), and optical performance checks, guaranteeing that the glass delivered meets the highest standards of durability and clarity .
-
Global Reach: Trusted by customers in over 80 countries, including North America, Europe, Japan, and South Korea, our glass is the preferred choice for global leaders in interactive technology.
| Process Name | Production capacity （55 inch） | Remark |
| Cutting | 10,000pcs/day | |
| Edging and Grinding | 3,000pcs/day | The production capacity calculated based on 55-inch |
|
Silk Screen Printing |
3,000pcs/day | The production capacity will change as the number of screen printing processes increases or decreases (the screen printing equipment is being expanded) |
|
Tempering |
2,800pcs/day | |
|
AG Spray Coating |
1,500pcs/day | |
|
Packaging |
3,500pcs/day |
A: Yes. The 9H tempered surface with optional anti-bacterial and oleophobic coatings resists scratches from gloves and withstands hospital-grade cleaners without degradation.Q: Can you match exact dimensions and cutouts for existing medical equipment?
A: Absolutely. We specialize in 100% custom sizing, edge treatments, and sensor/button cutouts based on your CAD or physical samples.Q: How quickly can I receive prototypes for testing?
A: Prototypes are typically ready within 7-14 days, with full production following strict medical-grade quality inspection.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!

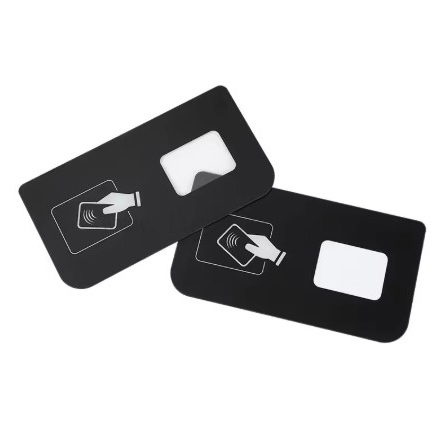

Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
