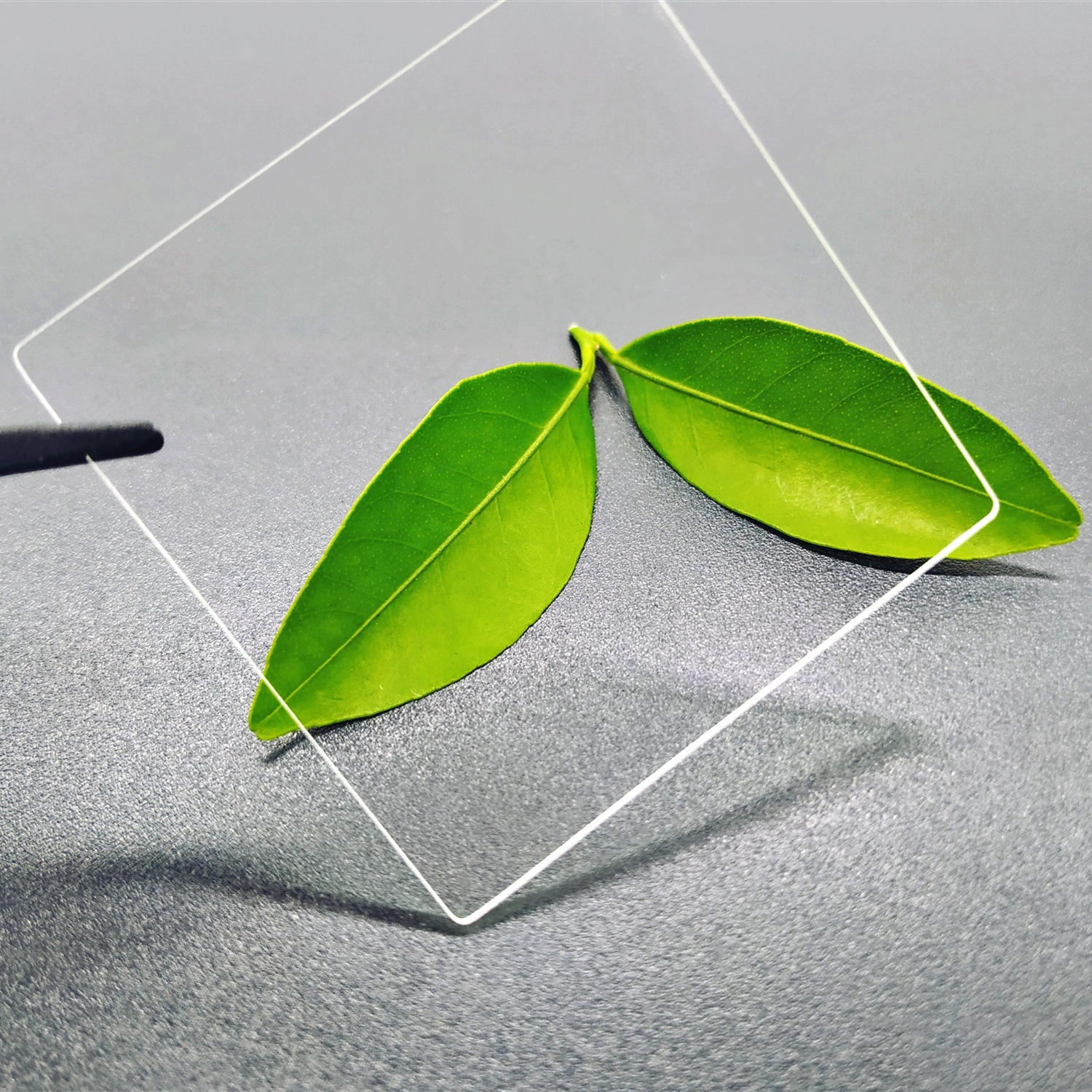

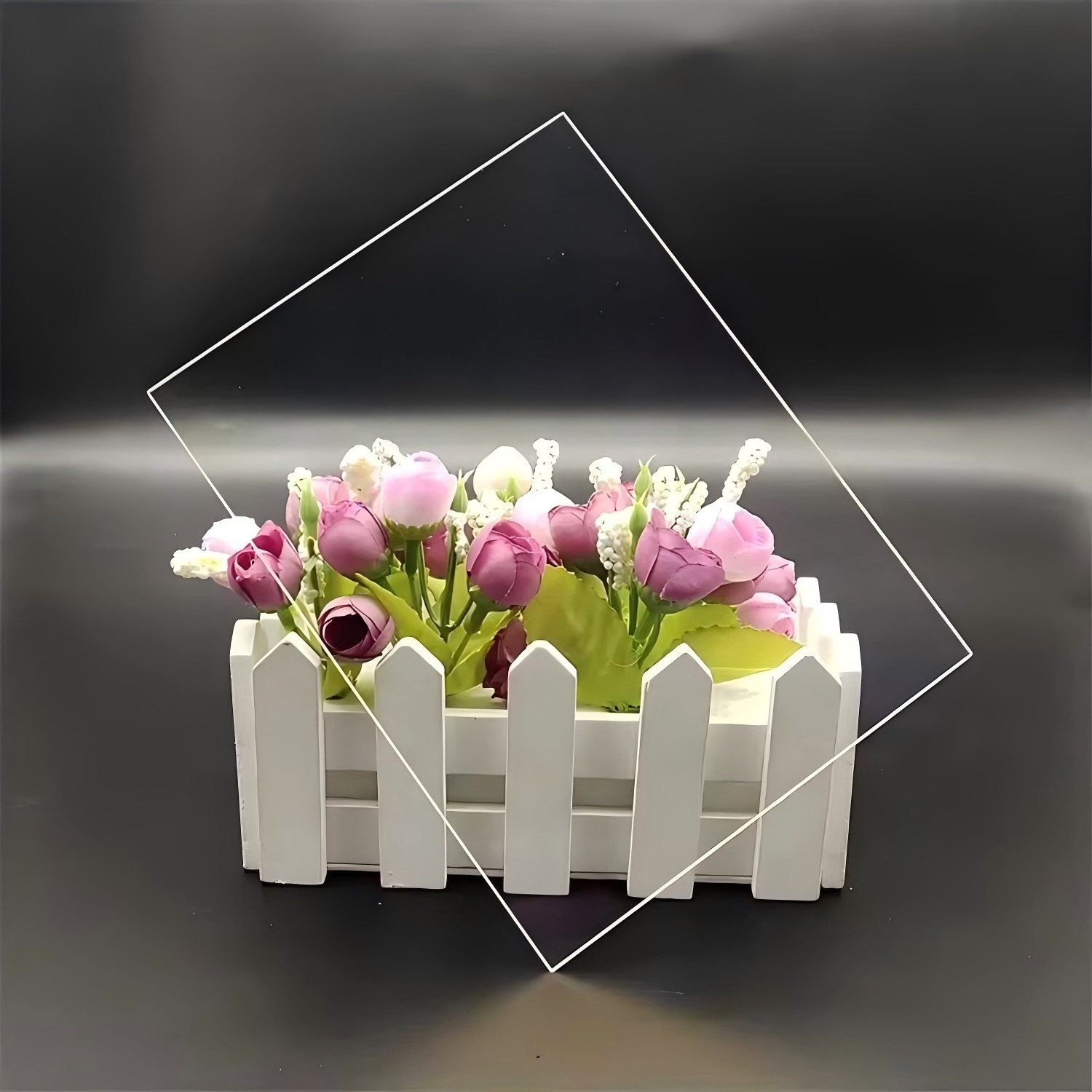

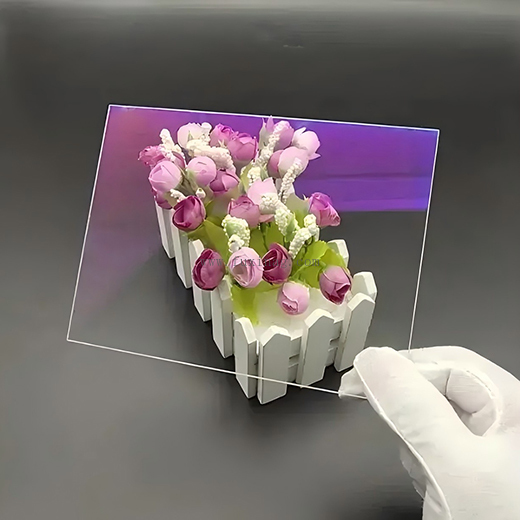

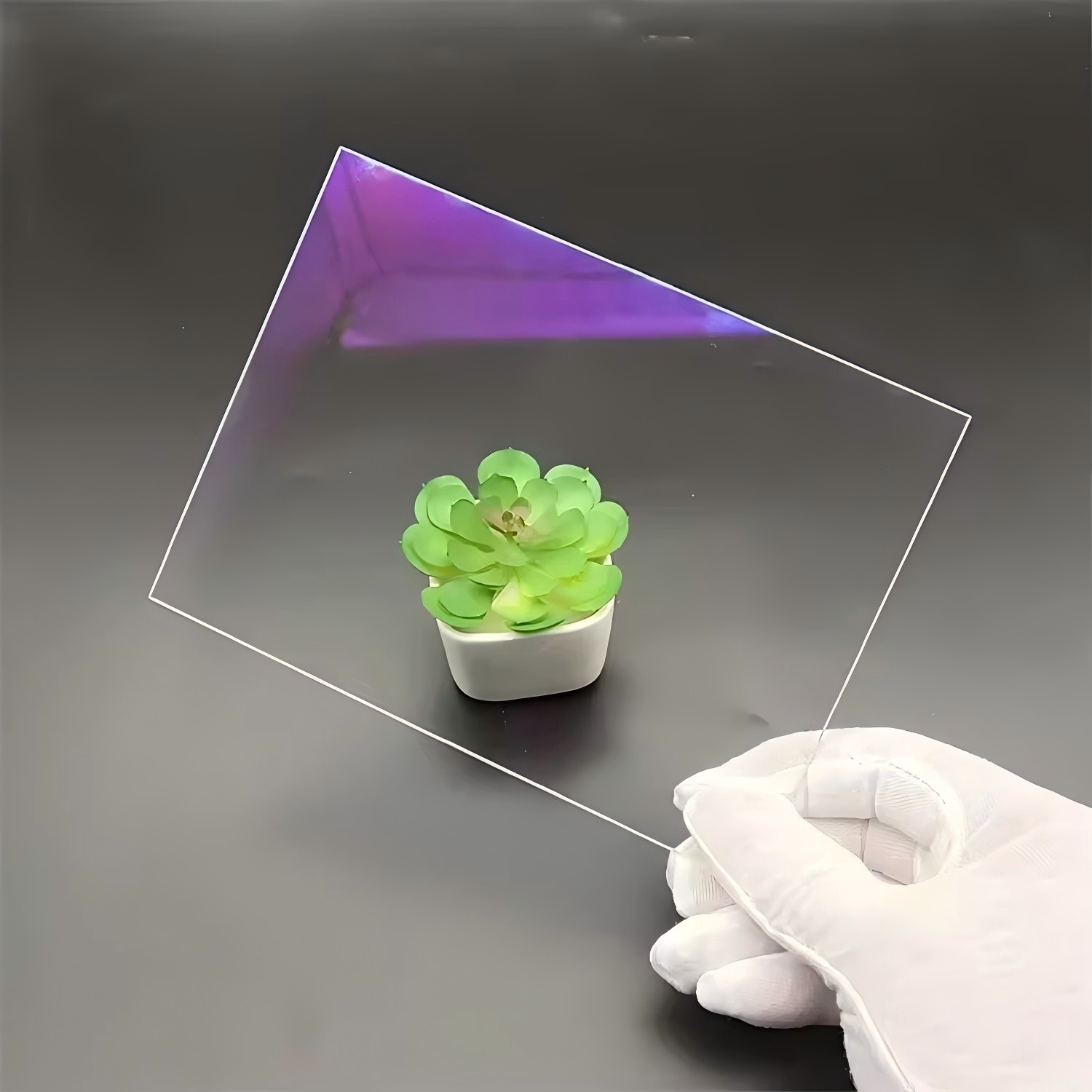

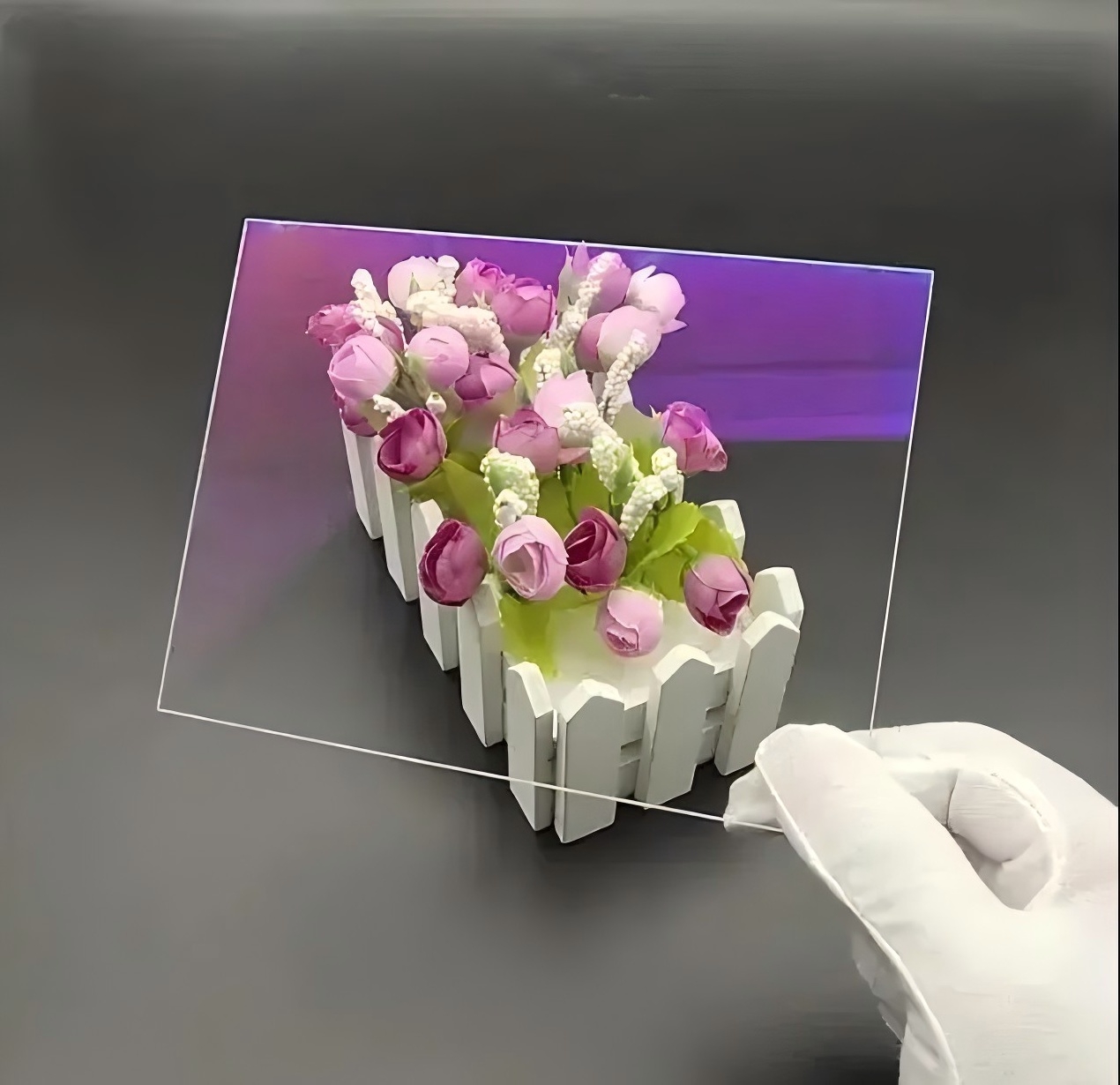

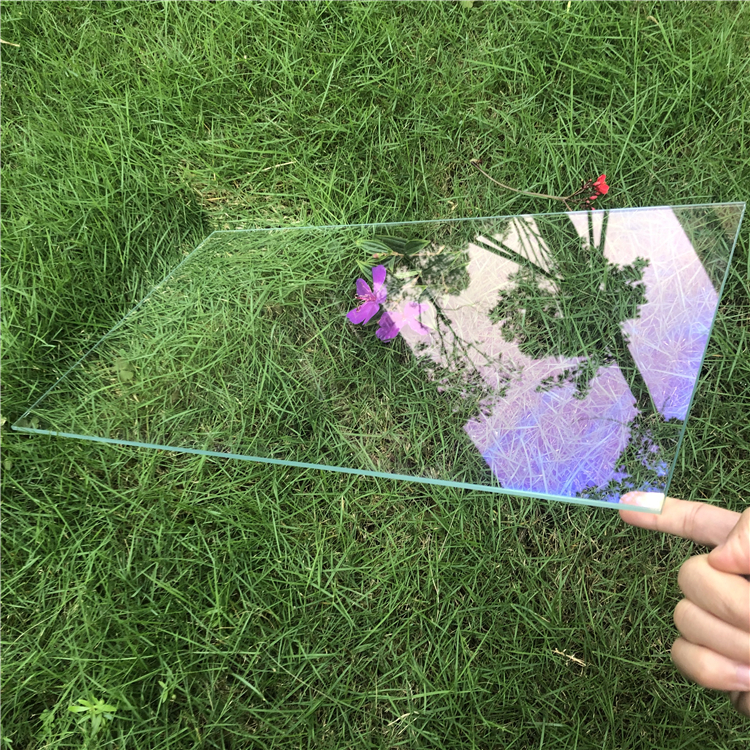

4mm AR Anti-Reflective Ultra-Clear Cover Glass
Customized Specification
| Glass Material | Soda-lime Glass,Aluminosilicote Glass,Low lron Glass,Borosilicote Glass |
| Thickness | 0.23-12 mm |
| Mohs hardness | 7 |
| Tempered | Physical Tempering,Chemical Tempering |
| Edge Treatment | Flat edge, Pencil edge |
| Chamfering | Right angle, Safety angle, Round angle, Cut angle |
| Hole | Round, Squore, irregulor holes avoilable |
| Surface Coating | AG, AR, AF or customized |
| Production Process | Cutting-Edging-Cleaning-Tempered-Printing-Cleaning-Coating Inspection-Packaging |
| Sample Printing | Sample can be made based on provided samples or drawings |
| Packaging | Glass double-sided lamination & sealed box, support customized packaging |
| Certification | ROHS，GS，ISO，JIS Z |
Experience unparalleled clarity with our optical-grade AR cover glass. The advanced anti-reflective treatment on both surfaces effectively eliminates glare and maximizes light transmission, delivering true-to-life color and contrast. Crafted from 4mm ultra-clear glass with precise straight edges and 90-degree corners, it is the superior choice for applications where visual accuracy is critical—from medical displays and gaming monitors to high-end retail and UI interfaces, ensuring your audience sees every detail without distraction.

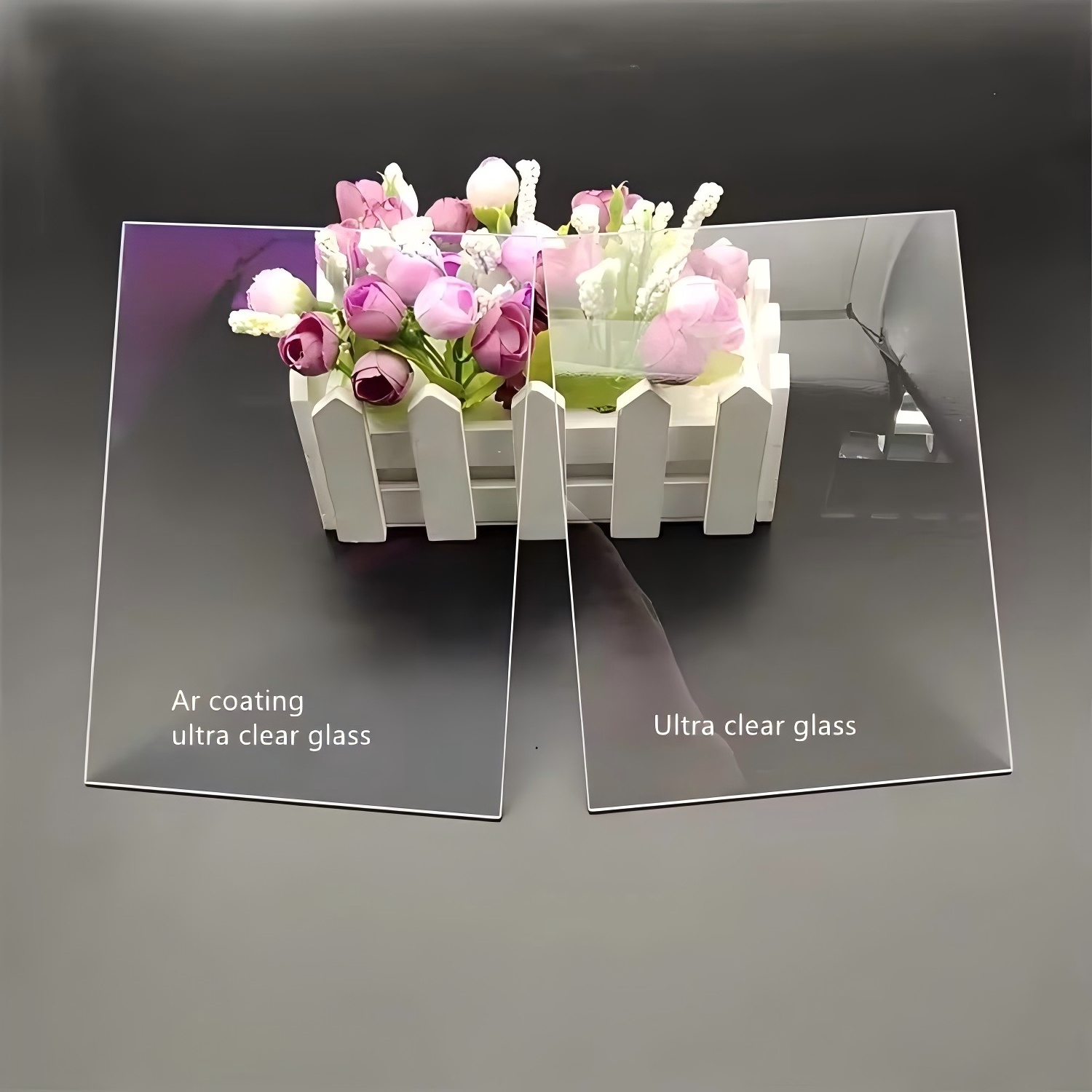

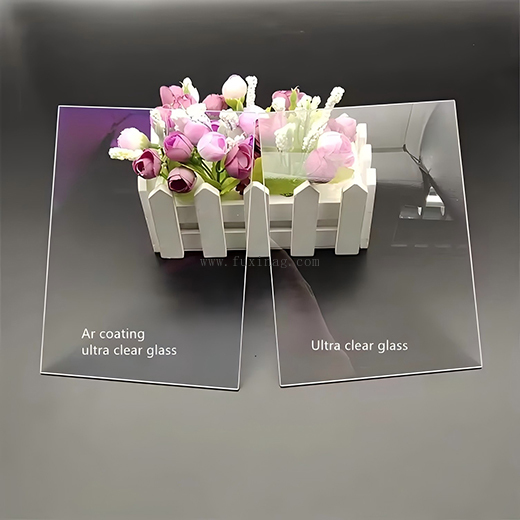

AR Anti-Reflective Glass vs. Standard Cover Glass
The primary difference lies in the optical coating. AR (Anti-Reflective) glass is specifically engineered to enhance visual performance, while standard glass lacks this critical feature.
| Feature | AR Anti-Reflective Glass | Standard Cover Glass |
|---|---|---|
| Light Transmission | Very High (>98%) - maximizes brightness and efficiency. | Standard (~91%) - a significant portion of light is lost. |
| Surface Reflection | Very Low (<1%) - drastically reduces glare and mirror-like effects. | High (~8%) - acts like a mirror under light, causing distracting reflections. |
| Image Quality | Superior - delivers vivid colors, deep contrasts, and sharp details. | Compromised - reflections wash out colors and obscure the display beneath. |
| Optical Coating | Yes - features a nano-scale coating on one or both sides to cancel out reflections. | No - has an uncoated, highly reflective surface. |
| Best For | High-end displays, digital signage, touchscreen kiosks, museums, and applications where visual clarity is critical. | Basic applications where cost is the primary concern and optical performance is not a priority. |
| Durability | The AR coating is typically hard and resistant to scratches and cleaning chemicals. | The surface is susceptible to scratches; no additional coating protection. |
AR Coating Processing Technologies
The performance of AR glass is defined by its coating process. The two primary methods are:
-
Magnetron Sputtering (PVD): A vacuum-based process creating an extremely hard, durable, and chemical-resistant multi-layer nano-coating. It offers superior optical performance for high-end applications.
-
Sol-Gel (Dip Coating): A cost-effective wet-chemical process ideal for large formats. The resulting porous coating provides excellent anti-glare but is generally less abrasion-resistant than sputtered coatings.
What is safety glass?
Tempered glass is superheated then rapidly cooled. This process, called "air-quenching," creates a strong surface compression layer and internal tension. This engineered stress balance makes it 4-5 times stronger than regular glass and causes it to break into small, granular pieces for enhanced safety.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
