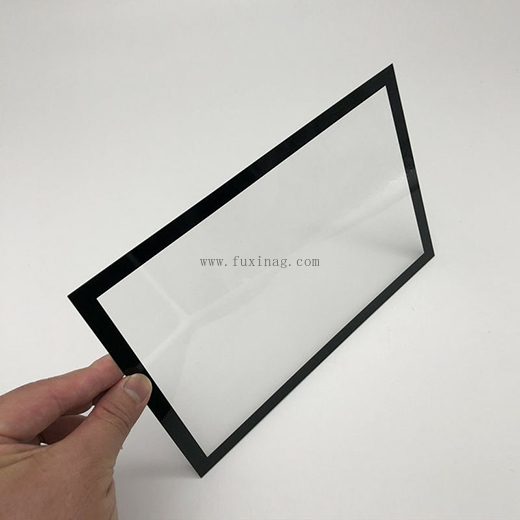

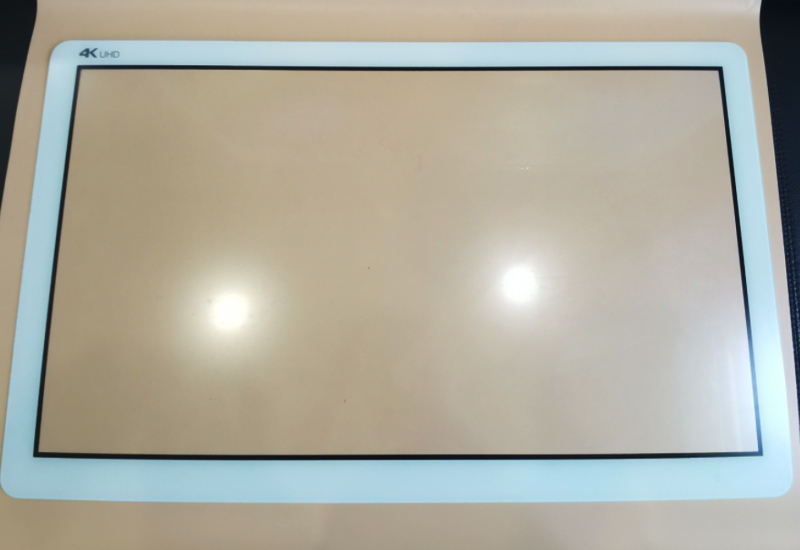

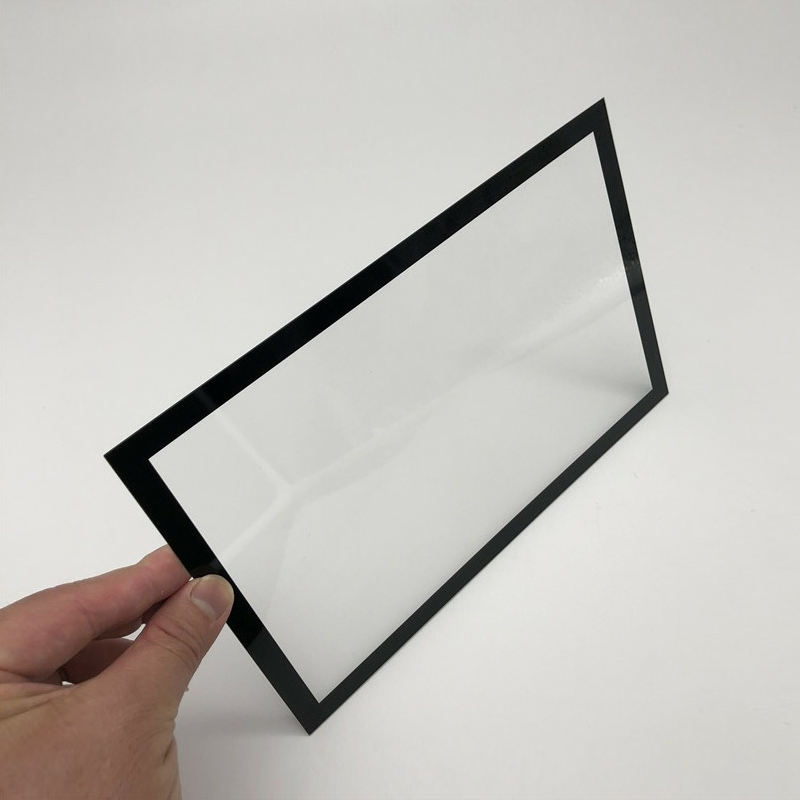

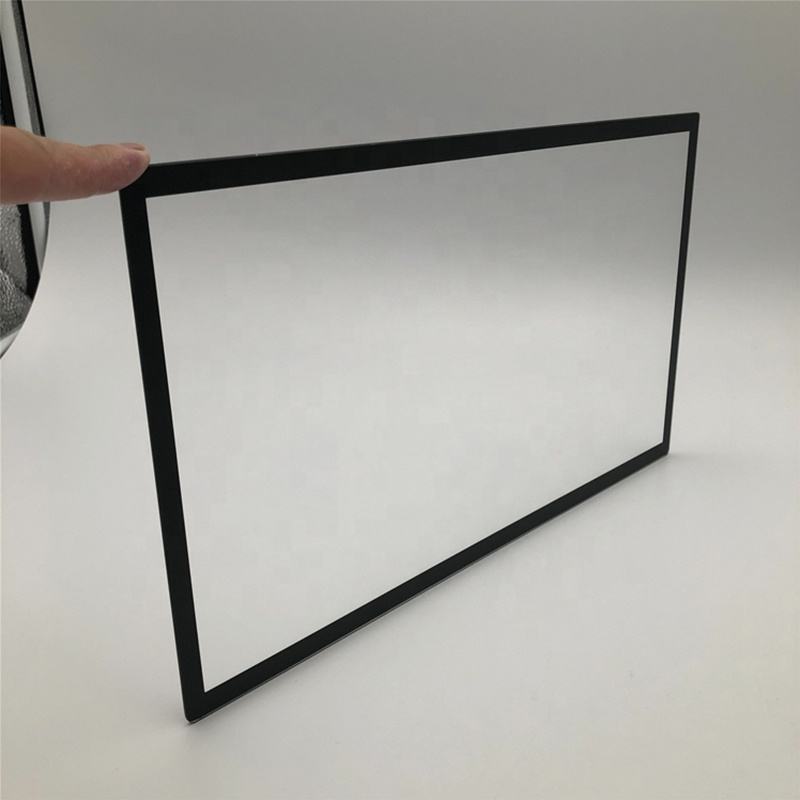

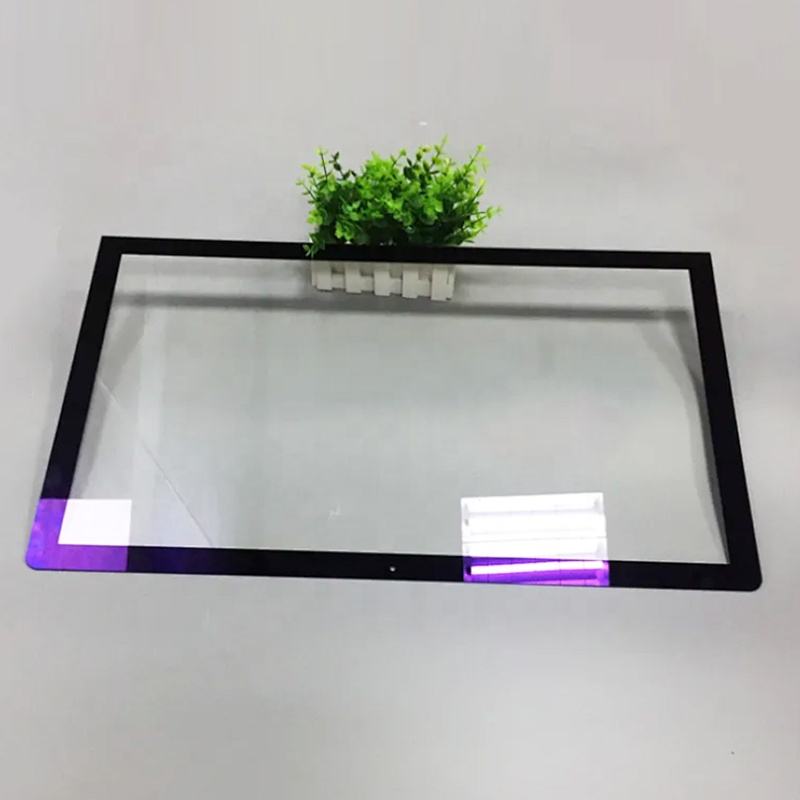

Double-sided AR-coated glass and custom screen-printed tempered glass, 98% light transmittance
Customization Core Competitive Advantage
| Customization Direction | Customizable Range | Core Values |
| Dimensions and Specifications | Thickness: 0.5mm–12mm Dimensions: Customizable (minimum 10mm × 15mm, maximum 1600mm × 1000mm) Supports: Custom cutting, drilling, chamfering | Adapted to different device structural designs to meet miniaturization/scaling requirements |
| Printing Solution | Patterns, text, logos, light-blocking borders, light-transmitting sections, and conductive circuit customization. Supports multi-color overprinting and gradient printing. | Achieve product appearance differentiation while balancing decorative and functional requirements. |
| Optical Optimization | Double-sided AR coating (mandatory), AF anti-fingerprint coating (optional), AG anti-glare coating (optional), with adjustable light transmittance (95%-98%) | Adapt to varying lighting conditions to enhance display and touch experiences. |
| Process Combination | Physical tempering / Chemical tempering, Printing + Coating sequence optimization, Edge polishing / Strengthening treatment | Differentiated requirements for strength and thinness based on application scenarios |

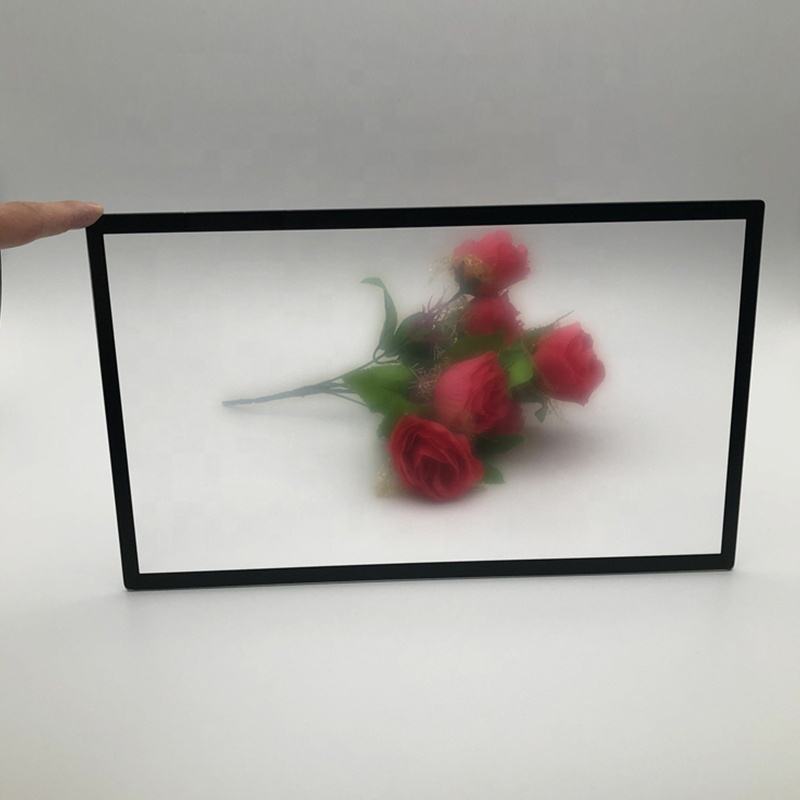

Optical Performance: 98% high light transmission + low reflection, delivering an exceptional viewing experience.
-
Ultra-high light transmittance, minimizing light loss
Base material: Ultra-clear tempered glass (native light transmittance ≥91%) with dual-sided multi-layer AR anti-reflective coating (SiO₂/TiO₂ composite film system). After precision coating processing, the overall light transmittance exceeds 98% (in the 400-700nm visible light spectrum), representing over a 10% improvement compared to standard tempered glass (85-88% transmittance), significantly reducing light reflection and refraction losses.
Application Value: When paired with displays, it significantly enhances brightness, contrast, and color accuracy, delivering clearer and more transparent visuals. Ideal for outdoor high-glare environments and high-definition applications (e.g., automotive infotainment screens, outdoor advertising displays, professional optical instrument windows). -
Dual-sided AR coating, low-reflection anti-glare
The dual-sided AR coating utilizes interference principles to cancel reflected light, reducing the glass surface reflectance from over 8% for standard glass to below 0.5% (total dual-sided reflectance ≤1%). This effectively eliminates mirror-like reflections and environmental light interference, preventing issues where “glare obscures visibility.”
Test Performance: In high-intensity lighting environments (illuminance ≥10,000 lx), screen glare intensity is reduced by 80%, enabling clear viewing from multiple angles. The coating exhibits exceptional uniformity with a film thickness tolerance ≤2nm, free from rainbow patterns or coating defects, ensuring high visual consistency. -
High optical stability with weather resistance and no degradation
The AR coating is prepared using vacuum magnetron sputtering technology, achieving ISO 2409 Level 1 adhesion (no peeling in cross-hatch adhesion test). After 1000 hours of UV aging and 800 hours of humidity testing (85°C/85% RH), light transmittance degradation is ≤1% with no significant increase in reflectance. with no issues such as delamination, yellowing, or cracking. Suitable for long-term outdoor use or complex lighting environments.
Edge & Angle
Production Process
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
