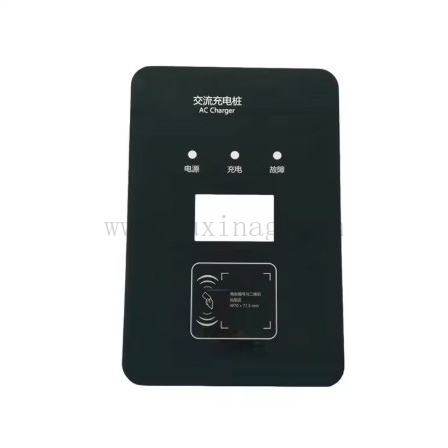

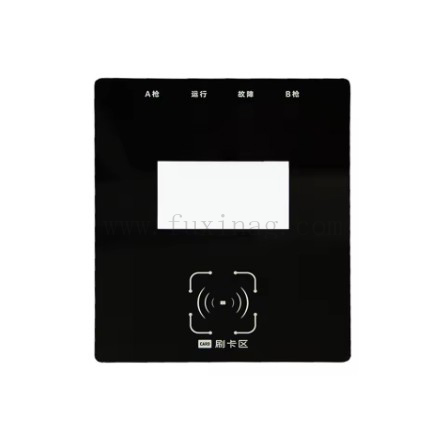

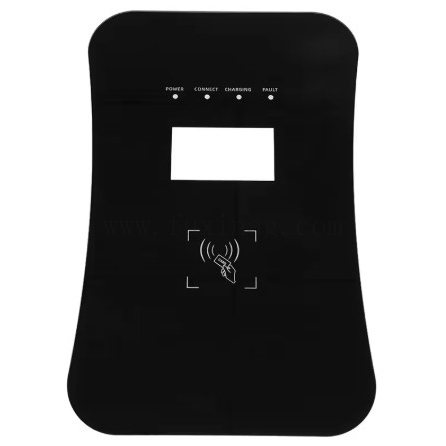

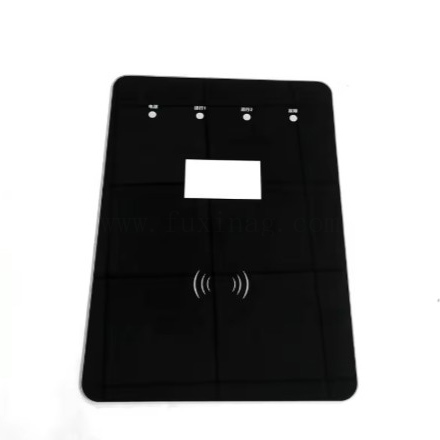

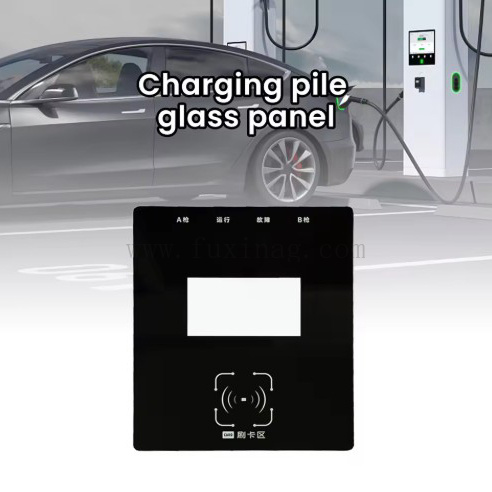

Premium Charging Pile Cover Glass | Tempered EV Charger Glass Panels by Fuxin AG Glass
- High-Strength Tempered Glass: Chemically strengthened soda lime glass with compressive stress (CS) >450 MPa and depth of layer (DOL) >8 μm.
- Superior Impact Resistance: Passes rigorous 1.5-meter ball drop test with 500g steel ball – ideal for high-traffic public areas.
- Exceptional Optical Clarity: Light transmittance ≥89%, ensuring clear visibility of charging indicators even in direct sunlight.
- Advanced Surface Treatments: Black silkscreen printing (Green/White options available); supports custom logos and branding. Anti-glare (AG) and anti-reflective (AR) coatings available to eliminate reflections.
- UV & Weather Resistance: Anti-UV aging test passed for over 1,300 hours – no fading, peeling, or discoloration in outdoor conditions.
- Customization Flexibility: Thickness from 3mm to 19mm; sizes up to 1200×2400mm; CNC edge grinding, acid etching, and perforation options.
- Easy Maintenance: Oleophobic coating for fingerprint resistance and effortless cleaning.
- Enhanced Safety & Vandalism Protection: High mechanical strength reduces risk of breakage and downtime.
- Improved Visibility & User Satisfaction: High transmittance and anti-glare options ensure readable displays 24/7.
- Long-Term Durability: Withstands extreme temperatures, moisture, and UV exposure – perfect for outdoor installations worldwide.
- Brand Differentiation: Custom silkscreen printing turns your charging pile into a premium branded asset.
- Sustainability Focus: Fully recyclable tempered glass aligns with green EV infrastructure goals.
|
Material
|
Chemically strengthened soda lime glass
|
|
Thickness
|
standard 4.0mm for EV chargers
|
|
Light Transmittance
|
≥89%
|
|
Compressive Strength
|
CS >450 MPa, DOL >8 μm
|
|
Impact Test
|
1.5m / 500g steel ball (passed)
|
|
UV Aging Resistance
|
>1,300 hours (no color change or peeling)
|
|
Silkscreen Colors
|
Black (standard), Green, White, Custom
|
|
Surface Options
|
AG (Anti-Glare), AR (Anti-Reflective), Anti-Fingerprint
|
|
Certifications
|
ISO 9001:2015, ISO 14001:2015
|
|
Minimum Order Quantity
|
200 pieces
|
|
Lead Time
|
Samples: 7 days; Bulk: 15–20 days
|

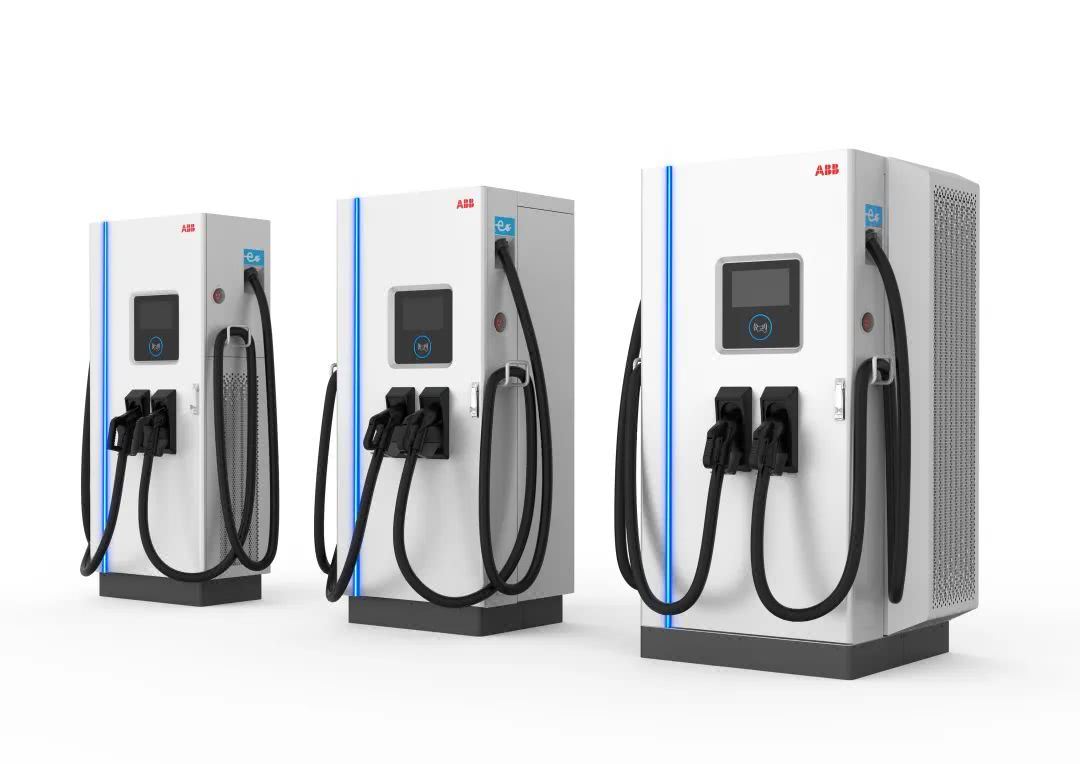

- Public and commercial EV charging stations

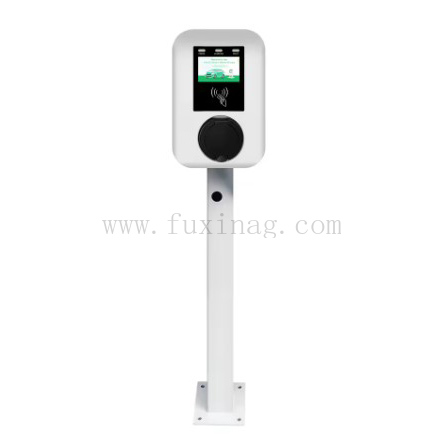

- Wall-mounted and pedestal charging piles
- Smart charging systems with integrated displays
- Fleet depots and highway service areas
4.0mm chemically strengthened tempered glass offers the optimal balance of strength, weight, and cost for most EV charging applications.Does Fuxin charging pile glass support outdoor use?
Yes. It passes 1,300+ hours UV aging and features weatherproof properties, making it ideal for all climates.Can I get custom logos or colors on the glass?
Absolutely. We offer full-color silkscreen printing in black, green, white, or your brand colors with no minimum on design variations (MOQ applies to production).Is anti-glare (AG) coating available?
Yes – our AG glass option significantly reduces reflections, ensuring excellent readability even under bright sunlight.How does the glass protect against vandalism?
The high compressive strength and successful 1.5m ball drop test provide superior impact resistance compared to standard glass.What is the transmittance level?
≥89%, ensuring charging indicators and screens remain clearly visible day and night.Do you offer samples?
Yes, samples are available within 7 days for testing and approval.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
