AR Anti Reflective And Anti Reflective Glass
Features
visible light
The average visible light transmittance exceeds 95%, significantly improving the original brightness of LCD and PDP and reducing energy consumption.

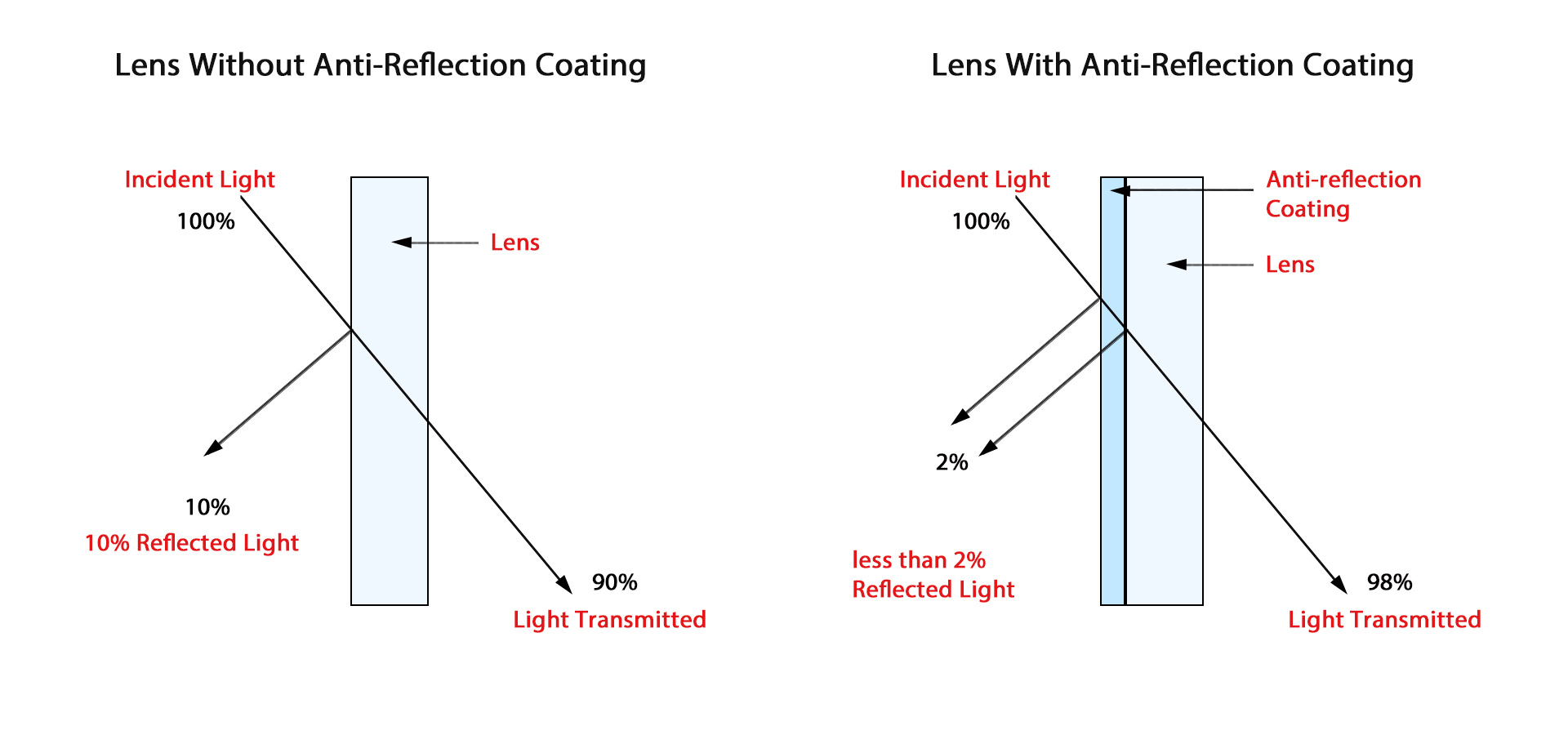

reflectivity
The average reflectivity is less than 4%, with a minimum value of less than 0.5%; Effectively reduce the drawback of whitening caused by strong light behind, and enjoy clearer image quality.
colors
More vibrant colors and stronger contrast make the color contrast of the image stronger and the scenery clearer.
UV resistant
Anti UV, effectively protects the eyes, significantly reduces the transmittance of the UV spectrum, and can effectively block the damage of UV to the eyes.
High temperature resistance
AR glass has a temperature resistance greater than 500 degrees (usually acrylic can only withstand a temperature of 80 degrees)
scratch and wear resistance
The hardness of AR glass film layer is equivalent to that of glass, greater than 7H (generally, the hardness of PC board is about 2H to 3H).
cleaning
Wipe with acid and alkali resistant cleaning agents to prevent damage to the film layer.
Strong impact resistance
The impact performance of 3mm thick glass is equivalent to 6mm acrylic.
Maintain perspective
After installation, the viewing angle of acrylic will generally decrease; After installing AR glass, the viewing angle will not decrease.
Appearance
The surface flatness of AR glass is much better than that of coated acrylic, and the larger the size, the more obvious the difference.
various environments
The cold and hot deformation of AR glass can be almost negligible, making it suitable for various environments; Meanwhile, AR glass has a glass like feel and a more beautiful appearance.
AR Glass Parameters
|
Material |
Ultra white float glass, flat polishing pad K9,B270,Quartz, etc |
|
Incident angle |
0-45°(can be designed according to requirements) |
|
Wavelength indicators |
300-400nm, 400-1100nm broadband, 808, 940, 1050, 1550 single point anti reflection |
|
Coating process |
IAD multi-layer dielectric hard film |
|
Surface quality |
National standard level three; US military standard 40/20 |
|
Product appearance |
Specification 2-400mm, bar shape within 850x80mm (round, customized for irregular shapes) |
|
Product thickness |
0.2mm, 0.3mm, 0.5mm, 0.7mm, 1.1mm, 2mm, 3mm (For other thickness details, please consult customer service) |
|
Application scenarios |
Medical inspection endoscope, instrument window protection, visual light source window mirror, cultural relics calligraphy and painting high transparency protective mirror, LED display screen, etc |
