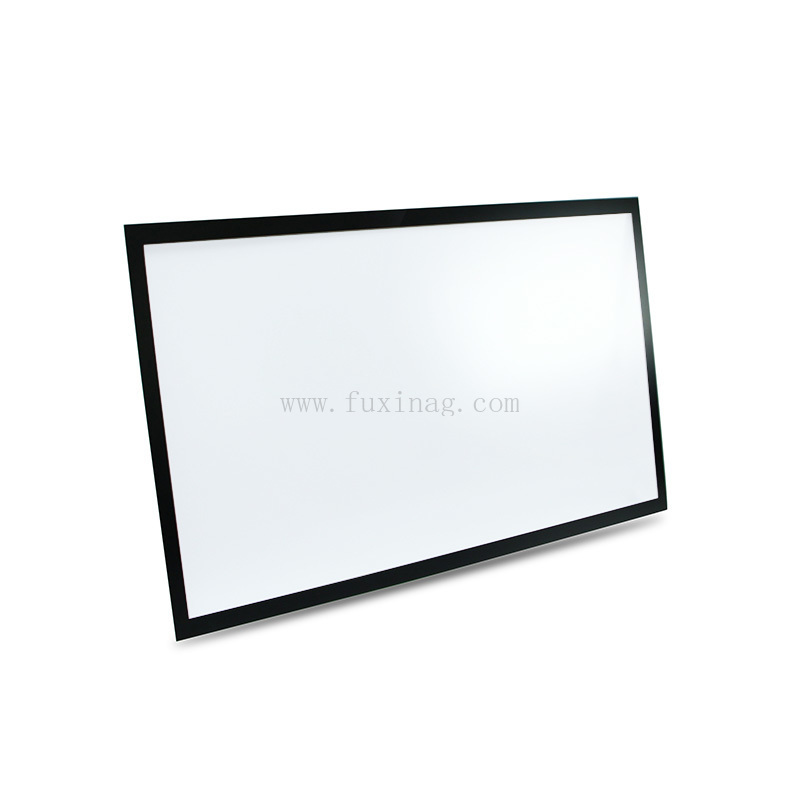

AG Anti Glare Cover Glass Custom Size 3mm Thick for Touch Tables & Smart Boards
AG Anti Glare Cover Glass for Touch Table & Interactive Smart Board
Key Features & Benefits
Anti-Glare Surface Treatment
-
Etching Technology: Our chemical etching process creates a uniform micro-rough surface that diffuses reflected light. This reduces mirror-like reflections by up to 85%.
-
Readability: Ensures text and images remain sharp without the "sparkle" effect often found in inferior films or coatings.
Touchscreen Optimized
-
Seamless Sensitivity: Specifically engineered to not interfere with capacitive or infrared (IR) touch frames. The glass maintains full touch accuracy and responsiveness.
-
Glove Touch Support: Thickness options available to support various touch sensitivities, including glove touch and passive stylus.
Durability & Safety
-
Chemically Strengthened: Undergoes an ion-exchange process to increase surface compression. Hardness exceeds 7H, making it resistant to scratches from keys, pens, and daily wear.
-
Impact Resistance: Tempered to withstand accidental impacts, reducing the risk of breakage in schools, museums, or corporate lobbies.
-
Shatter-proof Film: Optional anti-shatter backing ensures that if the glass breaks, it holds together, preventing injury.
Optical Clarity
-
High Transparency: Maintains over 90% visible light transmission, ensuring that your display's brightness and color accuracy are not compromised.
-
Anti-Fingerprint (Optional): An optional oleophobic coating can be applied to resist oil smudges, making the surface easy to clean.
|
Material
|
High-quality soda-lime float glass
|
|
Thickness
|
2mm, 3mm, 4mm, 5mm (Custom sizes available)
|
|
Hardness
|
9H pencil hardness
|
|
Max Size
|
100"
|
|
Viewing Angles
|
>160° horizontal / >140° vertical
|
|
Surface Treatment
|
AG (Anti‑Glare), AF (Anti‑Fingerprint), AR (Anti‑Reflective), or combination
|
|
Gloss Level (60°)
|
60 - 130 GU (Typical ranges: 80±10, 100±10)
|
|
Haze
|
Typically ≤10% (Common range: 1%-9%)
|
|
Tempering
|
Fully tempered (safety glass standard)
|
|
Light Transmittance
|
≥ 92% (uncoated); ≥ 95% (with AR coating)
|
|
Operating Temperature
|
-20°C to +80°C
|
|
Glare Reduction
|
Up to 80% (depending on etching level)
|
|
Size
|
Fully customized (up to 32–86 inches)
|
|
Edge Processing
|
CNC grinding, chamfered, or polished
|
|
Customization
|
Size, shape, hole patterns, silk‑screen printing, logo printing
|
Our AG/AF/AR coated tempered glass is trusted by manufacturers across industries:
-
Industrial Touch Panels: HMI interfaces, factory automation, and control systems.
-
Medical Devices: Patient monitors, diagnostic equipment, and handheld terminals.
-
Consumer Electronics: Smart home displays, tablets, GPS units, and wearables.
-
Retail & Kiosks: Point‑of‑sale systems, interactive kiosks, and vending machines.
-
Automotive Displays: Infotainment systems and dashboard touchscreens.
-
Outdoor Equipment: Terminals and devices exposed to bright sunlight (AG/AR coatings essential).
Why Choose Fuxin Glass?
-
Customization: We offer custom sizes, thicknesses, and cutouts (for cameras or sensors). No minimum order quantity (MOQ) restrictions for prototypes.
-
Quality Control: 100% visual inspection ensures zero defects in terms of bubbles, scratches, or mura (uneven etching).
-
Packaging: Professional foam and wooden crates ensure safe delivery worldwide.
| Process Name | Production capacity （55 inch） | Remark |
| Cutting | 10,000pcs/day | |
| Edging and Grinding | 3,000pcs/day | The production capacity calculated based on 55-inch |
|
Silk Screen Printing |
3,000pcs/day | The production capacity will change as the number of screen printing processes increases or decreases (the screen printing equipment is being expanded) |
|
Tempering |
2,800pcs/day | |
|
AG Spray Coating |
1,500pcs/day | |
|
Packaging |
3,500pcs/day |
Frequently Asked Questions (FAQ)
Q: What is the difference between Anti-Glare (AG) and Anti-Reflective (AR) coating?
A: Anti-Glare (AG) uses a surface texture to diffuse reflected light, reducing the clarity of the reflection itself (making it blurry). Anti-Reflective (AR) uses optical coatings to cancel out reflections, often appearing clear with a slight colored hue. AG is generally preferred for touch interfaces in variable lighting because it is more durable and hides smudges better than AR coatings.
Q: Does this glass work with IR (Infrared) touch frames?
A: Yes. Our AG glass is specifically manufactured with a consistent flatness to ensure it does not block the infrared light grid used by IR touch boards and tables.
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We encourage customers to test our glass for compatibility with their specific display and touch controller. Please contact us to arrange a sample order.
Q: How do I clean the glass?
A: We recommend using a standard microfiber cloth with a mild glass cleaner or isopropyl alcohol. The AG surface is durable enough to withstand regular cleaning, which is essential for public touch points.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Partial Sample Display
Certification
Factory Overview
Inspection Progress
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
1. Soda-lime Glass (Ordinary Flat Glass)
- Composition: Mainly composed of silicon dioxide (SiO₂, approximately 70%), sodium oxide (Na₂O), and calcium oxide (CaO).
- Characteristics: Easy to produce, low cost, but poor thermal stability and brittle.
- Applications: The most common type of glass, used for doors, windows, bottles, jars, and everyday utensils.
2. Borosilicate Glass (Heat-Resistant Glass)
- Composition: Based on soda-lime glass, boron oxide (B₂O₃) is added.
- Characteristics: Low coefficient of thermal expansion, high temperature resistance, resistance to rapid temperature changes (not easily cracked by sudden heating and cooling), good chemical stability.
- Applications: Laboratory instruments (such as beakers and test tubes), heat-resistant tableware (such as baking pans and glass pots), high-end flashlight lenses, etc. Well-known brands include Pyrex.
3. Aluminosilicate Glass
- Composition: Contains a large amount of aluminum oxide (Al₂O₃) and silicon dioxide (SiO₂).
- Characteristics: High hardness, scratch resistance, high mechanical strength, superior performance compared to borosilicate glass.
- Applications: Cover glass for high-end mobile phones/tablets, aviation glass, etc. Well-known brands include Corning Gorilla Glass.
4. Quartz Glass
- Composition: Silicon dioxide (SiO₂) content is above 99%.
- Characteristics: Excellent heat resistance (softening point up to 1700℃), wide light transmission spectrum (from ultraviolet to infrared), high purity, and excellent chemical stability. However, it is expensive.
- Applications: Semiconductor industry, optical devices, observation windows in high-temperature furnaces, ultraviolet lamps, etc.
To get an accurate quotation, please provide (if available):
- Product dimensions & glass thickness
- Application / usage
- Edge grinding type
- Surface treatment (coating - AG/AR/AF/AM or overlay, printing, etc.)
- Packaging requirements
- Quantity or annual usage
- Required delivery time
- Drilling or special hole requirements
- Drawings or photos
If you don't have all the details yet: just provide the information you have. Our team can discuss your requirements and help you determine specifications or suggest suitable options.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
