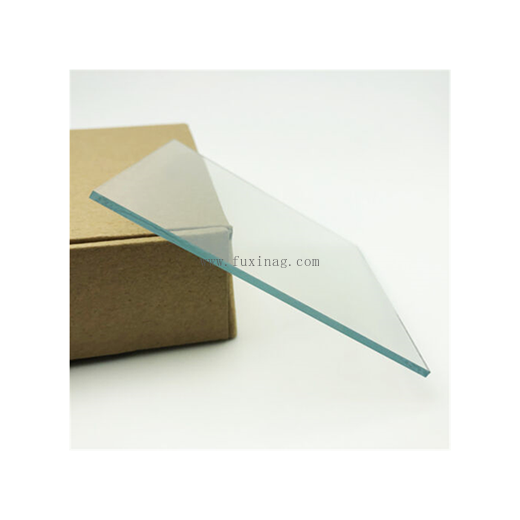

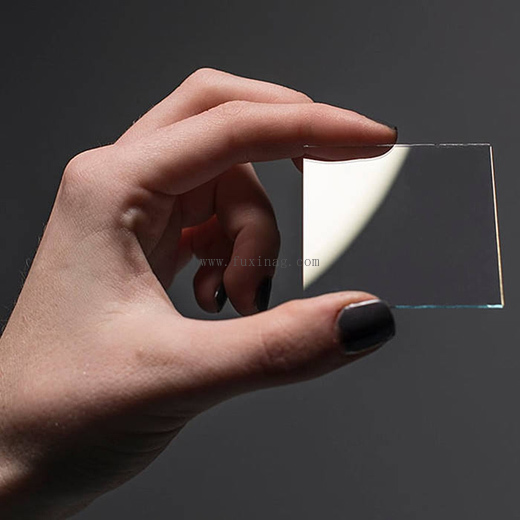

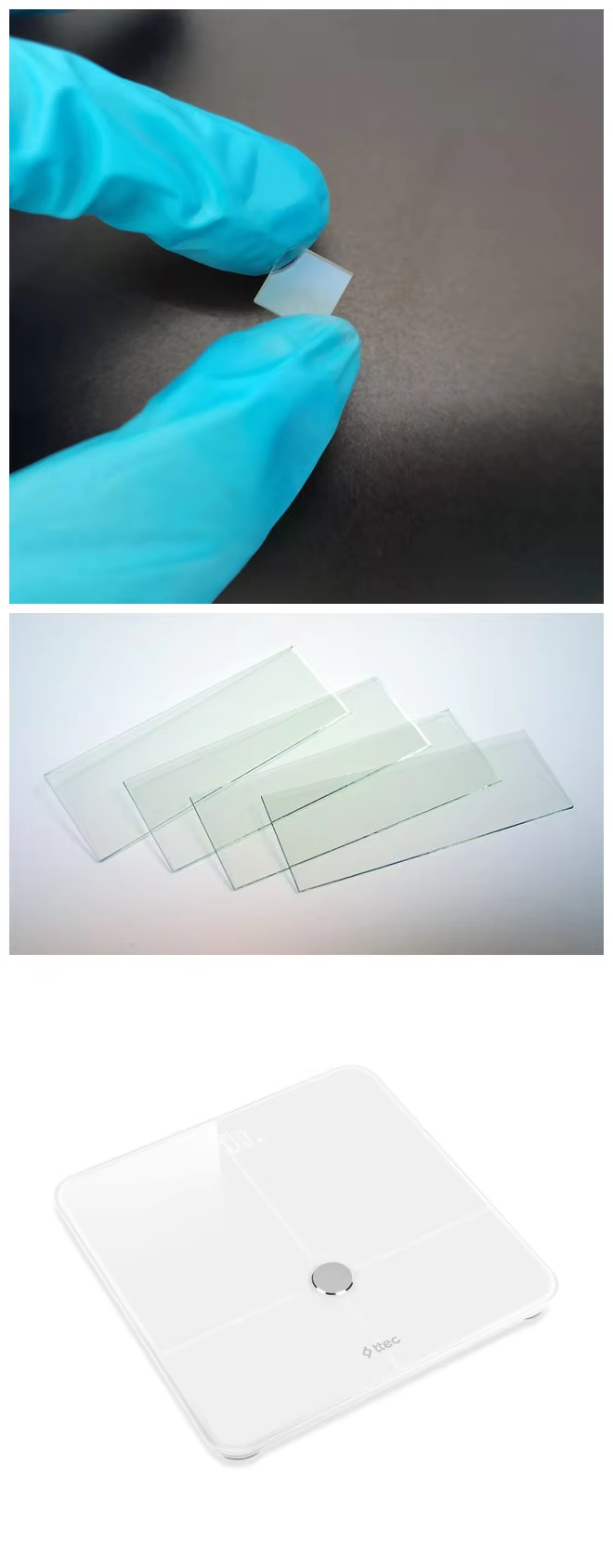

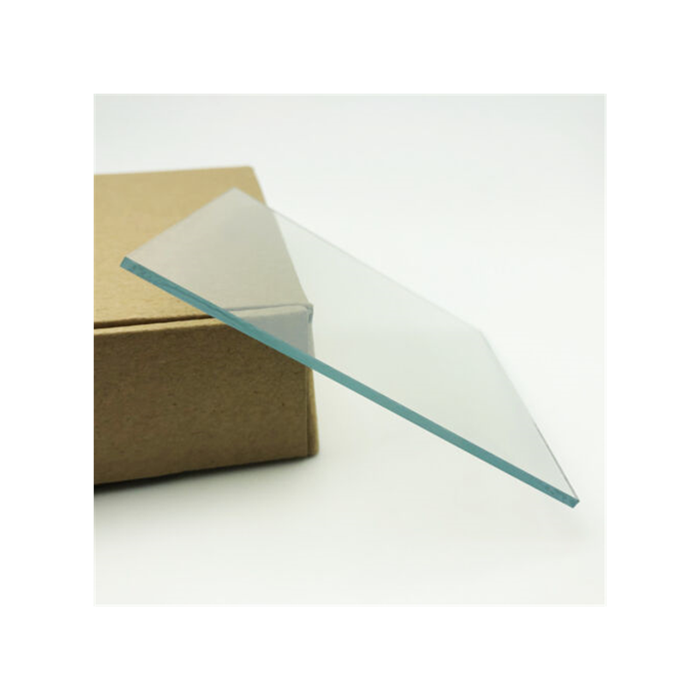

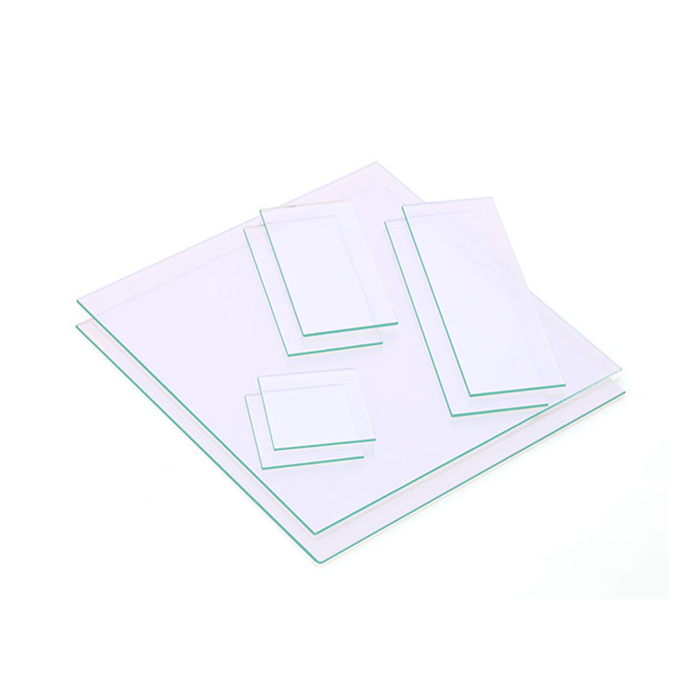

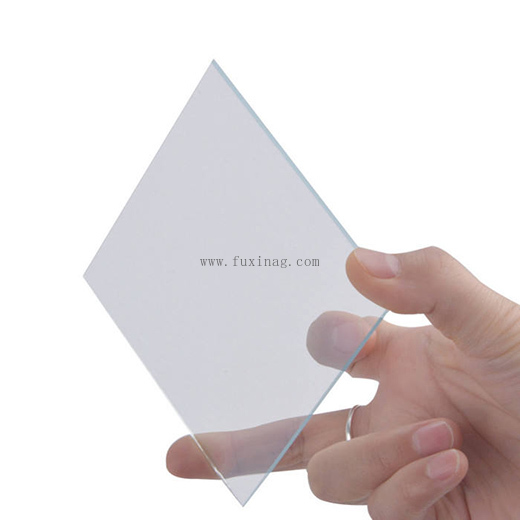

High-Performance ITO Conductive Glass for Superior Applications
Customizable Specifications
| Project | Value |
| Product Name | Laboratory ITO Glass Custom ITO/FTO Coated Conductive Patterned Glass |
| Dimensions | Customized to your requirements |
| Thickness | 0.4/0.5/0.7/1.1/2/3/4 mm |
| Edge | Polishing, grinding, flattening, and rounding edges |
| Conductivity value | 3 ohms, 5 ohms, 7 ohms, 8 ohms, 10 ohms, 15 ohms, 20 ohms, 30 ohms, 50 ohms, 70 ohms, 100 ohms, 150 ohms, 300 ohms, etc. |
| Transmittance | ≥ 83% |
| Application | Laboratory |
Core Performance Advantages
1. Exceptional conductivity for efficient and stable transmission
- Surface sheet resistance as low as 5-15Ω/□, with customizable ultra-low resistance versions ≤5Ω/□. Resistivity reaches the 10⁻⁴Ω・cm level, ensuring efficient and smooth charge transfer.
- Conductive uniformity is controlled within ±5%, ensuring consistent performance across large-area applications. Meets demands for high-response, low-power premium devices.
- Utilizing advanced magnetron sputtering technology, the film structure is dense, maintaining stable conductivity without significant degradation even in high-temperature and humid environments.
2. Exceptional optical clarity delivers outstanding visual performance
- Visible light transmission (400-700nm) ≥90%, with select premium models exceeding 94%. Haze ≤0.2% ensures exceptional optical clarity.
- Optional multi-layer AR anti-reflective coating reduces reflectance to ≤0.5%, effectively enhancing display contrast and visual comfort for premium applications like automotive and outdoor displays.
- The coating maintains stable optical performance with minimal color shift across wide temperature ranges, ensuring accurate color reproduction for high-end display devices.
3. Ultimate precision craftsmanship, exceptional durability
- ITO film thickness control accuracy ±5nm, surface roughness Ra≤0.2μm, no visible scratches or pinholes, pinhole count ≤3 per square meter with diameter ≤0.1mm.
- Film adhesion reaches 4B grade with no peeling in cross-hatch adhesion tests. Exceptional abrasion resistance ensures resistance change remains ≤10% of the original value after 1000 friction cycles.
- Exceptional weather resistance withstanding -40°C to 85°C wide-temperature cycling tests and 85°C/85% RH 500-hour humidity tests without performance degradation.
4. Flexible customization capabilities to accommodate diverse requirements
- Substrate thickness ranges from 0.15 to 5mm, supporting ultra-thin and ultra-thick customization. Dimensional tolerance: ±0.03mm. Flatness: ≤0.1mm/m. Edge is free of chipping or burrs.
- Supports custom irregular cutting, chamfering, drilling, and photolithography patterning. Core parameters like resistance and light transmittance can be adjusted for specific applications.
- Offers IM shadow elimination process options to achieve color-free ITO etching marks, meeting the visual aesthetics requirements of high-end touchscreens.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
