Customizable 15.6 Inch Silk Screen Glass Panel - Industrial Touch Tempered Glass
Customizable Specifications
| Product Name | Custom Low-Cost Electronic Product Decorative Control Panels |
| Dimension | Support Customized |
| Thickness | 0.5–12 mm |
| Material | Sodium-Calcium Glass / Aluminosilicate Glass / Low-Iron Glass / Borosilicate Glass |
| Shape | Round/Square (Irregular holes acceptable) |
| Color | Black/White/Silver (up to 7 layers of color) |
| Edge Treatment | CNC grinding, polishing, and chamfering |
| Hole drilling | Support |
| Tempered | Support (Thermal Tempered / Chemically tempered ) |
| Silk Printing | Standard Priting / High Temperature Printing |
| Coating | AG/AR/AF |
| Ink | Standard Ink / UV Resistant Ink |
| Process | Cut-Edge-Grinding-Cleaning-Inpection-Tempered-Cleaning-Printing-Oven dry-Inspection-Cleaning-Inspection-Packing |
| Package | Protective film + Kraft paper + Plywood crate |
Core Features
1. Full-Scene Customization and Adaptation
Supports 15.6-inch standard dimensions and customization for any non-standard sizes. Aperture size, cutout positioning, edge curvature, and silk-screen patterns can be adjusted as needed. Compatible with capacitive/resistive touch modules, providing a one-stop solution from design drawings to finished product delivery to meet diverse equipment assembly requirements across industries.
2. Industrial-grade rugged construction
Features high-aluminum silicate glass sheets physically toughened to achieve a surface hardness of 7 on the Mohs scale, delivering impact resistance five times greater than standard glass. Withstands steel needle scratches and everyday impacts, boasts exceptional bending strength, resists shattering, and offers an 8-fold increase in service life compared to ordinary soda-lime glass.
3. Precision Screen Printing Process
Utilizing low-temperature screen printing technology to prevent glass deformation or stress fractures caused by high heat. Ink adhesion meets ≥4B in cross-hatch adhesion testing. Supports printing of fine lines down to 0.2mm, with precise delineation between light-transmitting and light-blocking areas. Achieves ≥95% light-blocking efficiency, ensuring uniform color without fading, and accommodates complex functional labeling requirements.
4. Optimized Touch Interaction Experience

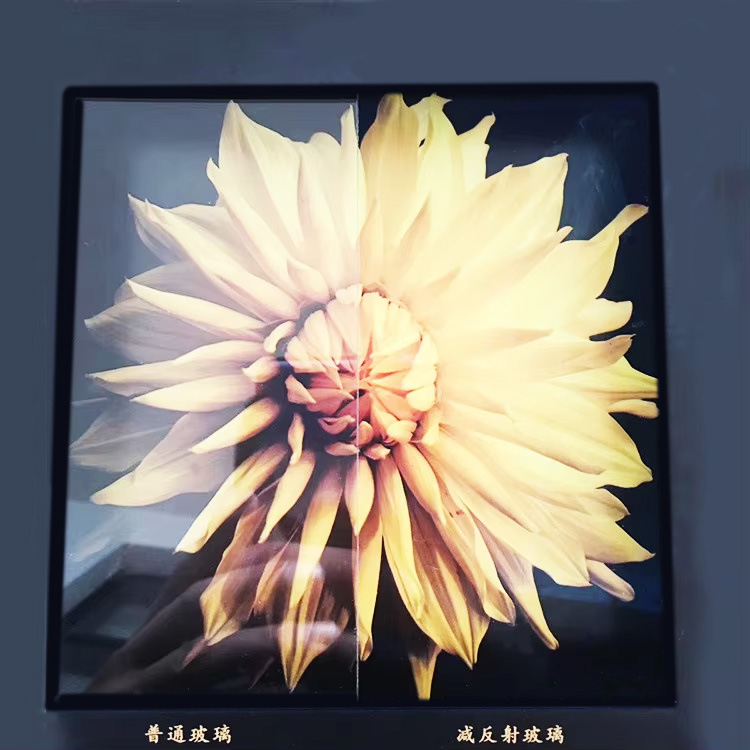

Surface coated with anti-fingerprint AF coating, featuring a water contact angle loss of ≤10°. Resists smudges and cleans easily without compromising touch signal transmission. Optional anti-reflective (AR) coating boosts light transmittance to ≥91% and reduces glare by 75%, ensuring clear visibility even in bright environments. Touch response time ≤5ms supports operation with gloves for smooth, lag-free interaction.
Company Introduction
Founded in 2012, Fuxin Glass is a leading manufacturer specializing in the research, development, production, and export of cover glass, headquartered in Dongguan, China, near the ports of Shenzhen and Guangzhou.
With 13 years of industry experience, Fuxin serves customers in over 80 countries worldwide. With ISO/RoHS/JIS Z certifications, Fuxin Glass is dedicated to providing high-quality glass solutions for electronic displays and smart devices. Its products are widely used in interactive display, automotive electronics, industrial equipment, medical devices, home appliances, and smart devices. The products feature high light transmittance (over 95%), high hardness (Mohs 6), and excellent scratch and impact resistance. The 21,000-square-meter factory is equipped with four fully automated production lines, with a monthly production capacity of 300,000 pcs. We support small-batch trial production and large-scale delivery, and provide one-step technical support and after-sales service. Multi-dimensional customization is supported as well: including but not limited to mold design (samples can be produced in as fast as 7 days), special optical processing (AR/AF/AG/AM combination), explosion-proof structure design (multi-layer composite structure), color customization (7 colors are optional), silk screen logo, etc., to meet the personalized needs of customers. Our products have successfully entered mainstream markets such as North America, Japan, South Korea, India, and Europe, and widely serve interactive ( such us all in one machine, IFPD, smart white board ), automotive central control screens, industrial HMI, smart home panels and other fields.
We always adhere to the principle of "integrity, quality and win-win" and are willing to establish good long-term cooperative relationships with customers all over the world!
Inspection Progress
Factory Overview
Certification
Package
Delivery & Lead Time
| Original Country | China |
| FOB Port | Shenzhen or Hongkong |
| HS Code | 700719000 |
| Lead Time | Sample within 7 days, bulk order 15~20 days |
| Delivery | By sea / DHL / Fedex / UPS |
Payment Details
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
