1.5mm 2mm LCD Display Protective Cover Tempered Glass Anti Glare AG Coating Glass
1.5mm / 2mm LCD Display Protective Cover Tempered Glass with Anti-Glare AG Coating
In the realm of industrial displays and high-end consumer electronics, screen protection must balance optical clarity with mechanical durability. Our Anti-Glare (AG) Coated Tempered Glass offers the optimal solution. Engineered specifically for LCD panels, this cover glass minimizes visual noise caused by ambient lighting while providing a robust shield against impacts, scratches, and chemicals. Available in standard thicknesses of 1.5mm and 2mm, it caters to both slim-profile designs and heavy-duty industrial applications.
Key Features & Benefits
-
Anti-Glare (AG) Coating Technology
-
Benefit: Reduces surface reflection from 8% (standard glass) to less than 1%.
-
Effect: Maintains high contrast ratio even under direct sunlight, ensuring readability for outdoor kiosks and medical monitors.
-
-
Precision Thickness Options
-
1.5mm Thickness: Ideal for capacitive touch panels where ultra-slim profiles and high touch sensitivity are required.
-
2.0mm Thickness: Provides enhanced structural strength, suitable for industrial control panels and public interactive displays requiring high impact resistance.
-
-
High Strength & Durability
-
Chemically strengthened via controlled ion-exchange process.
-
Surface hardness reaches 7H (pencil hardness), effectively resisting scratches from keys, tools, and daily wear.
-
Impact resistance meets standard drop test requirements for industrial components.
-
-
Optical Performance
-
High light transmittance (>90% after AG coating).
-
Maintains true color reproduction without affecting the display’s original brightness or clarity.
-
| Material | High-strength Aluminosilicate / Soda-lime Glass (Customizable) |
| Thickness | 1.5mm ±0.1mm / 2.0mm ±0.1mm |
| Light Transmittance | ≥ 89% |
| Surface Treatment | Anti-Glare (AG) Etching / Coating |
| Surface Hardness | 7H - 9H (Pencil/Mohs) |
| Transmittance | ≥ 90% (with AG) |
| Gloss Level | Customizable (Typically 60±5 GU for Matte effect) |
| Operating Temp | -20°C to +70°C |
Application Scenarios
-
Industrial Control Panels: Protects HMI (Human Machine Interface) in factories from oil, dust, and accidental tool strikes.
-
Outdoor Digital Signage & Kiosks: The AG coating eliminates glare from sunlight, ensuring 24/7 readability.
-
Medical Devices: Provides a smooth, easy-to-clean, and anti-microbial (optional) surface that resists harsh cleaning agents.
-
Marine & Navigation Displays: Resists salt spray corrosion and offers high visibility in reflective water environments.
-
Automotive Infotainment: Reduces distracting reflections on center console displays.
Why Choose Etched AG Over Coated AG?
- Permanent Durability: Unlike spray-on coatings that can wear off or peel over time, the etched texture is part of the glass itself and will last the lifetime of the device.
- Superior Tactile Feel: The micro-texture provides a smooth, "paper-like" touch experience, reducing friction for stylus and finger use.
- Anti-Fingerprint Properties: The etched surface naturally diffuses fingerprints and smudges, keeping the screen cleaner for longer.
- No Sparkle Effect: Our precision etching process minimizes the "sparkle" or "shimmer" often seen on lower-quality AG surfaces, preserving the high-definition clarity of the underlying LCD/OLED panel.
Customization Options
We understand that one size does not fit all. To ensure perfect integration with your product design, we offer:
-
Custom Sizes: From small wearable screens to large format 55-inch displays.
-

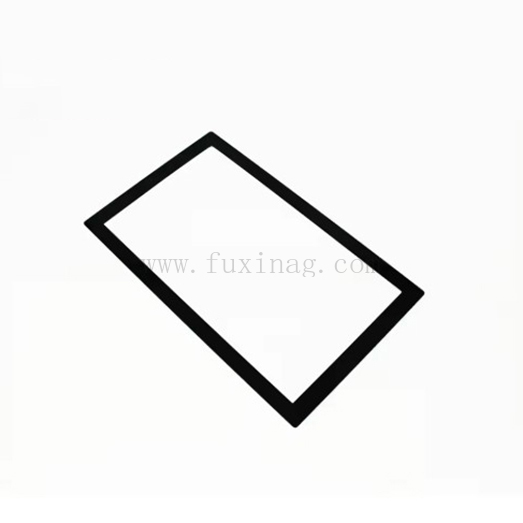

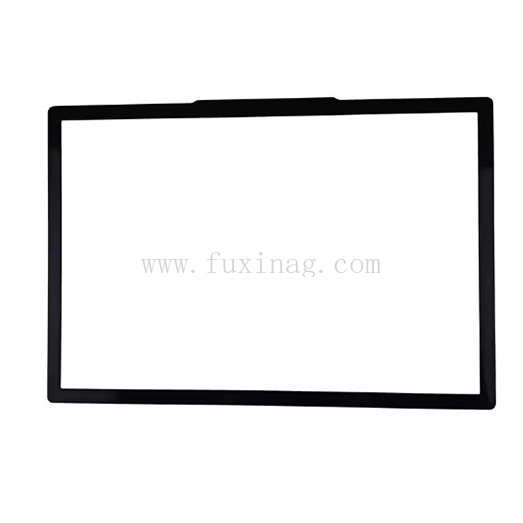

Silk-screen Printing: Custom black or white borders (framing) to hide adhesive or bezel edges.
-
CNC Machining: Precise cutouts for buttons, cameras, or sensors.
-
Bonding Services: Optical Bonding to eliminate the air gap between the glass and the LCD for superior clarity and anti-fogging.
Frequently Asked Questions (FAQ)
A: While the matte surface diffuses light, our high-transmittance etching ensures that over 89% of the display's light passes through. The perceived "dimming" is minimal compared to the massive gain in readability by removing harsh reflections.
A: Yes. We frequently combine AG (Anti-Glare) with AF (Anti-Fingerprint) and AR (Anti-Reflective) coatings to create a "triple-threat" cover glass that offers the best in clarity, cleanliness, and glare reduction.
A: Because the texture is etched into the glass, it is highly resistant to chemicals. You can clean it with standard glass cleaners or isopropyl alcohol without worrying about damaging the anti-glare effect.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
